Firmware Download for Cameras
dp3 Quattro
Before Updating
If the camera is turned off during the update procedure, it might cause a malfunction and damage your camera.
To avoid causing a malfunction, please read the following carefully before updating the firmware.
- Please use a dedicated AC adapter or a fully charged battery.
- Do not open the BATTERY/CARD COVER or operate the camera during the firmware update.
- Do not turn off the camera during the firmware update.
Note: If the firmware has been updated to Ver.2.03, please be sure to update it to the latest version.
Ver.2.03 2020.04.23
A color mode Teal and Orange has been added.
Download (29.1MB)
DP3QV203.BIN
Update Procedure
Check 01
Turn on the camera.
Check 02
Press the MENU button on the back of the camera to display the Camera Set-up Menu.
Check 03
Select “Information” from the Set-up Menu.
Press the OK button again to display the firmware update window.
The installed firmware information is displayed.
If the version is “Ver.2.02” or lower, it is necessary to update to this new firmware version.
How to update the firmware
STEP 01
Please use 512MB or larger SD/SDHC/SDXC card and format the card in the camera body.
* To avoid loss of your important data, please check the SD/SDHC/SDXC card before formatting
STEP 02 For Windows
Please connect a card reader containing the SD/SDHC/SDXC card or the dp3 Quattro to your computer and click the Download button or right click on the mouse (if you use a Macintosh computer, please press Control + click) to store the firmware file in the SD/SDHC/SDXC card root directory (Please do not store the file in a subfolder such as “DCIM”).
* If the firmware has downloaded whilst the camera is connected to your computer, please turn off your camera before disconnecting it from your computer.
(It appears differently depending on OS version.)
STEP 02 For Macintosh
Please connect a card reader containing the SD/SDHC/SDXC card or the dp3 Quattro to your computer and click the Download button or right click on the mouse (if you use a Macintosh computer, please press Control + click) to store the firmware file in the SD/SDHC/SDXC card root directory (Please do not store the file in a subfolder such as “DCIM”).
* If the firmware has downloaded whilst the camera is connected to your computer, please turn off your camera before disconnecting it from your computer.
(It appears differently depending on OS version.)
STEP 03
Insert the SD/SDHC/SDXC card storing the firmware file of DP3QV203.BIN into your camera and turn on the dp3 Quattro.
* It is not necessary to connect the camera body to your computer.
STEP 04
Press the MENU button on the back of the camera to display the Camera Set-up Menu.
STEP 05
Select “Firmware Update” from the Set-up Menu.
Press the OK button again to display the firmware update window.
The installed firmware information is displayed.

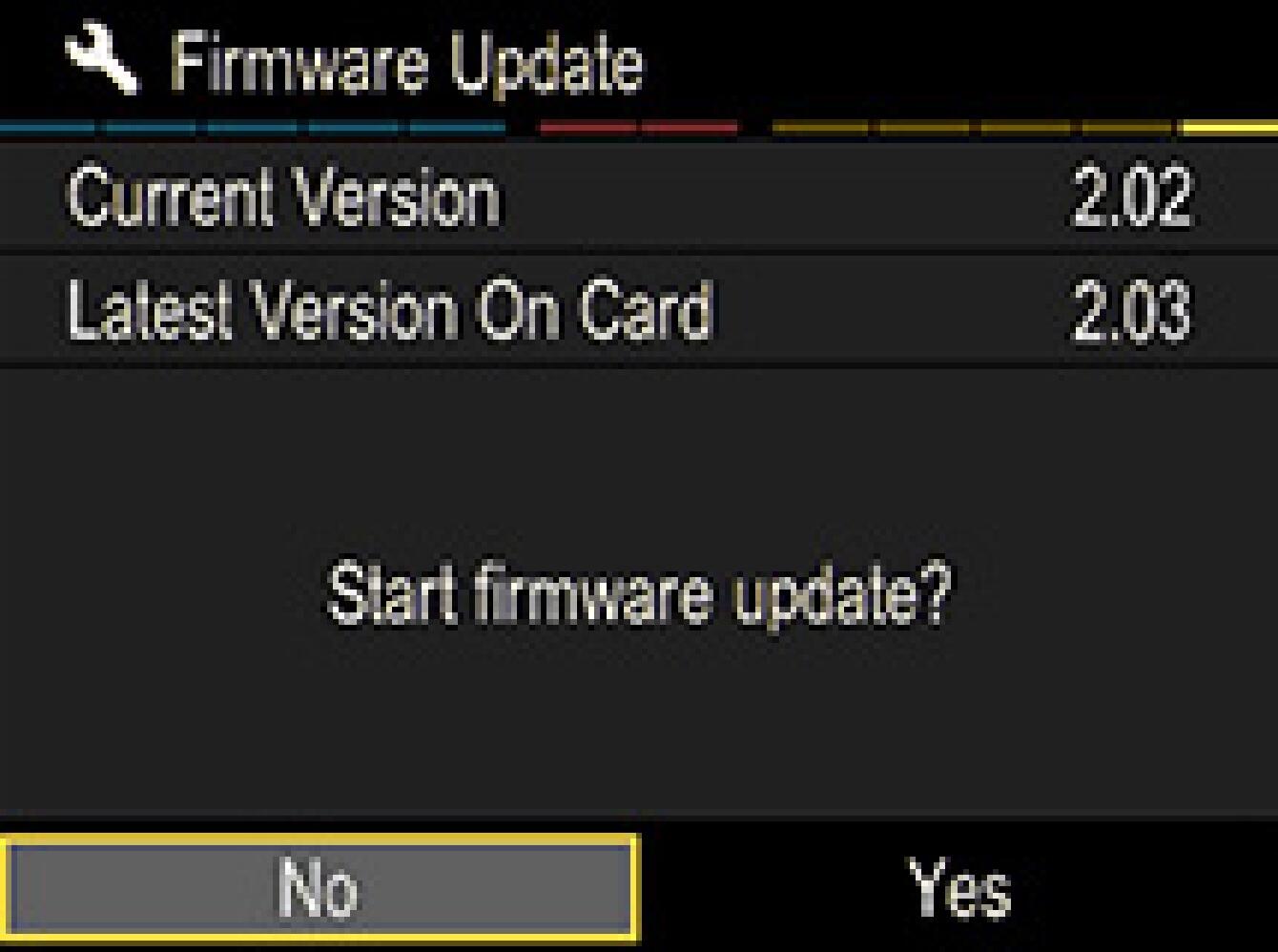

STEP 06
“Start Firmware update?” message will be displayed.
In case of "Start Firmware Update" message is not displayed
In the unlikely event that the “Start Firmware update” message does not appear, an error message will be displayed in the lower part of display.
A list of possible reasons for this error message, along with the solutions, appear below.
No Firmware update file on Memory card
It is possible that the Firmware update file is not stored in the root directory. Please repeat the above installation from STEP : 02.
Cannot update firmware. No Memory Card.
Please turn off your camera and insert the SD/SDHC/SDXC card with the stored firmware “DP3QV202.BIN” (copied to root directory) into your camera. Then repeat the above installation from STEP : 03.
Cannot update firmware. Battery Empty.
Please use a dedicated fully charged battery and repeat the above installation from STEP : 03.
Cannot update firmware. Connecting cable.
USB cable from your camera. Please repeat above installation from STEP 03.
Cannot update firmware. Setting external flash.
Turn off the camera and remove the external flashgun from your camera. Please repeat the above installation from
STEP 07
Select “Yes” and then press the OK button to start the firmware update. Firmware update will now start.
(There will be two firmware updates. 5 seconds after starting the first update, the camera body will turn off automatically, and 3 seconds later it will turn on again to start the second update. In case the camera does not restart, turn on the power to resume the update. It takes about 1 minute as a total to update.)
Error!
If the “Firmware update has failed.” message appears during firmware updating, please check the Error Code, and contact your nearest Service Center. Please visit the following “World Network” page for contact details.
STEP 08
When the message “Firmware update is complete. The camera will be turned off automatically.” is displayed, the update is complete.
* Please do not operate the camera until the message “Firmware update is complete.” appears.
STEP 09
Select the “Information” from the Set-Up menu and confirm the firmware has been updated to “2.03”. If “2.03” is displayed, the update is complete.
Read More
Update History
Ver.2.02 2017.08.04
It has corrected the phenomenon that there was some noise in the right side of the images, when DNG files were processed using Adobe Photoshop by Adobe Systems Incorporated.
* SIGMA Photo Pro ver. 6.5.4 or later is required to process the RAW data (X3F and X3I files) taken by the dp Quattro with firmware version 2.00 or later
Ver.2.01 2017.04.28
It has corrected the phenomenon that buttons on the back of the camera do not work when restarting the camera after the update, depending on the camera settings.
* The latest version of SIGMA Photo Pro 6.5.4 is required to process the RAW data (X3F and X3I files) taken by the dp Quattro series after the firmware update.
