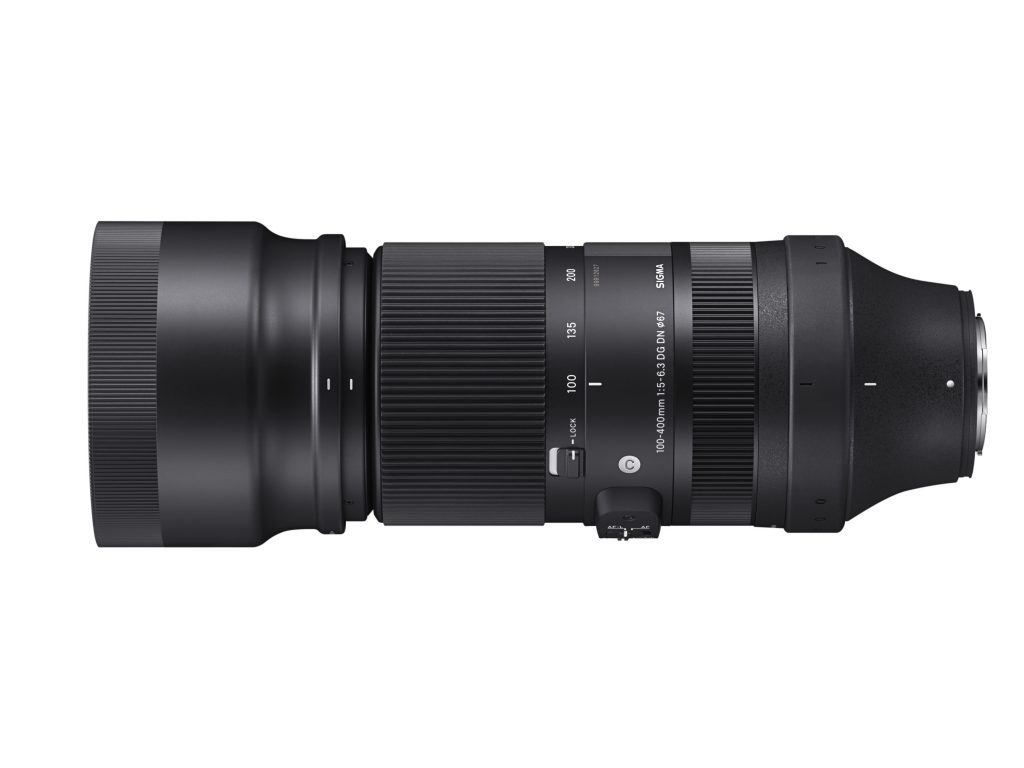

Launch schedule of SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary in FUJIFILM X Mount

SIGMA Corporation is pleased to announce the launch schedule of the SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary in FUJIFILM X Mount.

Supplied accessories: LENS HOOD LH770-05, FRONT CAP LCF-67mm Ⅲ, REAR CAP LCR Ⅱ, PROTECTIVE COVER PT-31
Available mount: FUJIFILM X Mount
Barcode: 0085126 750756
Available: 21st, September, 2023

＊The appearance and specifications of the product are subject to change.
#SIGMA #SIGMA100400mmContemporary #SIGMAContemporary #SIGMADGDN #SIGMAXMount

[Long-awaited X Mount addition]

The SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary, which was created in 2020 as the "Handy Tele Master", the DG DN version of the ultra-telephoto zoom dedicated for full-frame mirrorless cameras, will now be added for the Fujifilm X Mount.
With the mirrorless large-aperture F1.4 APS-C size single focal length (16mm, 23mm, 30mm, 56mm) , F2.8 zoom (18-50mm), and the addition of this super-telephoto zoom lens, SIGMA's X Mount lens lineup has expanded to six lenses. The new lineup covers a wide range of applications, from wide-angle to ultra-telephoto.

A control algorithm including AF drive and communication speed optimization has been developed specifically for X Mount interchangeable lenses. In addition to realizing high-speed AF, the lens also supports AF-C (Continuous AF) and in-camera aberration correction*. The mount is rubber-sealed to cater for use in a variety of environments.
*Function available on supported cameras only. Functionality may vary depending on the camera model.

The switches have also been optimized for X Mount. The "AF Function Setting Switch" allows the user to select a function while the AF Function Button is pressed on the lens side.

Mount Conversion Service is available to convert other mounts of SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary to FUJIFILM X Mount.

About Mount Conversion Service:
https://www.sigma-global.com/en/support/purpose/mcs/

[Features]

１．Compact ultra-telephoto zoom equivalent to 600mm in 35mm format
The SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary for X Mount, the sixth lens to be converted to X Mount, is a ultra-telephoto zoom lens covering an angle of view equivalent to 150-600mm in 35mm format.
Despite covering the 600mm equivalent ultra-telephoto range, the lens has a compact design with an length of 199.5mm, a maximum diameter of 86mm, and a weight of 1,135g. It enables ultra-telephoto photography utilizing the compact Fujifilm X Mount system. The SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary, designed for full-frame mirrorless cameras, can be used with an APS-C format X Mount body to deliver extremely high descriptive performance right up to the extreme periphery.

２．Uncompromising image quality
The lens construction of the SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary comprises 16 groups and 22 elements, with one FLD and four SLDs used for the effective correction of aberrations and distortions. Built on the latest optical design technology and optimized for mirrorless systems, the lens ensures the same high-resolution image quality all the way to the edges. In addition, it constantly achieves high levels of optical performance and makes the most of its capabilities as a zoom lens in any condition, at every focal length from wide to telephoto, and from close-up shots to telephoto photography.

３．A full range of functionalities that enables smooth and easy ultra-telephoto shooting
In addition to a high-speed and smooth AF enabled by the stepping motor optimized to the latest algorithm, the SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary incorporates powerful image stabilization (OS) of five steps* built into the lens. When combined with a camera body with image stabilization built in, the lens corrects for pitch and yaw axis rotations, providing even more powerful image stabilization.
It also features the AF function setting switch to which the user may select AF lock/AF activation, and the focus limiter switch that allows optimizing the AF range according to the purpose of shooting, Zoom lock switch that fixes the zoom ring at the widest end, preventing it from rotating and causing the lens barrel to extend under its own weight during transportation, OS Switch which the user may switch between Mode 1 for general photography and Mode 2 for motor sports and other applications requiring panning.
In addition, the SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary supports straight zoom, which allows photographers to zoom in and out by adjusting the hood, enabling intuitive and quick view angle adjustments. It features a "Dual action zoom" which supports both straight zoom and ring zoom.
* Based on CIPA guidelines (Measured in 400mm with a APS-C size image sensor)

４．Lightweight & Compact lens body
SIGMA designed a light and durable ultra-telephoto zoom lens addition to its Contemporary line. The SIGMA 100-400mm F5-6.3 DG DN OS | Contemporary packs functionalities required for angles of view corresponding to focal lengths of 100-400mm in a compact, lightweight body. It is not merely about weight reduction, but the lens is durable, with careful selections to utilize the right materials in the right place. For instance, magnesium alloy is used for the part where a tripod socket is attached, which needs to be very strong. To allow for a pairing with camera bodies of different sizes, a tripod socket, TS-111 kit (sold separately) is available. As this helps reduce any strain on the camera body, photographers can shoot long hours without worrying about it. The tripod socket comes with a strap which also helps reduce strain on the mount when carrying the lens around or during transportation.

[Additional features]

・Lens construction: 22 elements in 16 groups (1 FLD, 4 SLD)
・OS (Optical Stabilizer) function
・Inner focus system
・Compatible with high-speed autofocus
・Stepping motor
・Compatible with Lens Aberration Correction
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).
・Super Multi-Layer Coating
・AF function button
・Focus Limiter
・AF function setting switch
・OS switch
・Zoom lock switch
・Mount with dust and splash resistant structure
・LENS HOOD LH770-05
・PROTECTIVE COVER PT-31
・Compatible with TRIPOD SOCKET TS-111 Kit
・Designed to minimize flare and ghosting
・Every single lens undergoes SIGMA's proprietary MTF measuring system
・9-blade rounded diaphragm
・High-precision, durable brass bayonet mount
・Compatible with Mount Conversion Service
・"Made in Japan" craftsmanship

[Key specifications] The figures are for X Mount.

Lens construction: 22 elements in 16 groups (1 FLD, 4 SLD)
Angle of view(APS-C): 16.2° (W)-4.1°(T)｜Number of diaphragm blades: 9 (rounded diaphragm)
Minimum aperture: F22-29｜Minimum focusing distance: 112(W) ‐ 160(T)cm
Maximum magnification ratio: 1:4.1(at 400mm focal length)｜Filter size: φ67mm
Dimensions (Maximum Diameter x Length)*: φ86.0mm ×199.5mm/φ3.4in. × 7.9in.
Weight: 1,135g/40.0oz.
＊The length of a lens is measured from the filter surface to its mount.
