• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  27 elements in 19 groups

• Angle of View

  39.6-4.1°

• Number of Diaphragm Blades

  9 (rounded diaphragm)

• Minimum Aperture

  F22-32

• Minimum Focusing Distance

  45-260cm / 17.8-102.4in.

• Maximum Magnification Ratio

  1:2.4 (at 200mm focal length)

• Filter Size

  φ105mm

• Dimensions (Diameter × Length)

  L-Mount：φ119.4mm×279.2mm / φ4.7in.×11.0in.

  Sony E-mount：φ119.4mm×281.2mm / φ4.7in.×11.1in.

• Weight

  L-Mount：2,495g / 88.0oz.

  Sony E-mount：2,485g / 87.7oz.

• Edition Number

  S023

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH1144-02
  ・COVER LENS CAP LC-740E
  ・FRONT CAP LCF-105mm III
  ・REAR CAP LCR II
  ・TRIPOD SOCKET TS-121
  ・Shoulder Strap

• Mount / Product Barcode

  L-Mount：00-85126-73269-1

  Sony E-mount：00-85126-73265-3

• Camera Compatibility

  LINK

• * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.

• The one and only 60-600mm zoom lens, able to handle every situation from standard to ultra-telephoto all by itself

  The Sigma 60-600mm F4.5-6.3 DG DN OS | Sports is an ultra-telephoto 10x zoom lens for full-frame mirrorless cameras that covers a zoom range of 60-600mm, a range only available from Sigma. It enables users to seamlessly capture scenes from close-ups to long distance shots without changing lenses, even in difficult situations such as air shows or professional sports events.

• Stable and high optical performance throughout the entire zoom range

  Sigma employed the latest optical design to effectively correct chromatic aberrations that tend to occur in the ultra-telephoto range using a variety of high quality materials, including FLD and SLD glass elements. The lens is capable of capturing every moment with uncompromising high image quality in the unique focal length range of 60-600mm.
  The minimum focusing distance is 45cm at the wide end, and at the focal length of 200mm, the lens offers a maximum magnification ratio of 1:2.4, allowing users to also enjoy the lens as a telephoto macro lens, adding to its overall versatility.

• Dual Action Zoom for intuitive framing

  The lens supports Dual Action Zoom, allowing users to use both rotary zooming by rotating the zoom ring and straight zooming by grasping the tip of the lens. This enables both precise and quick operation in any given situation.

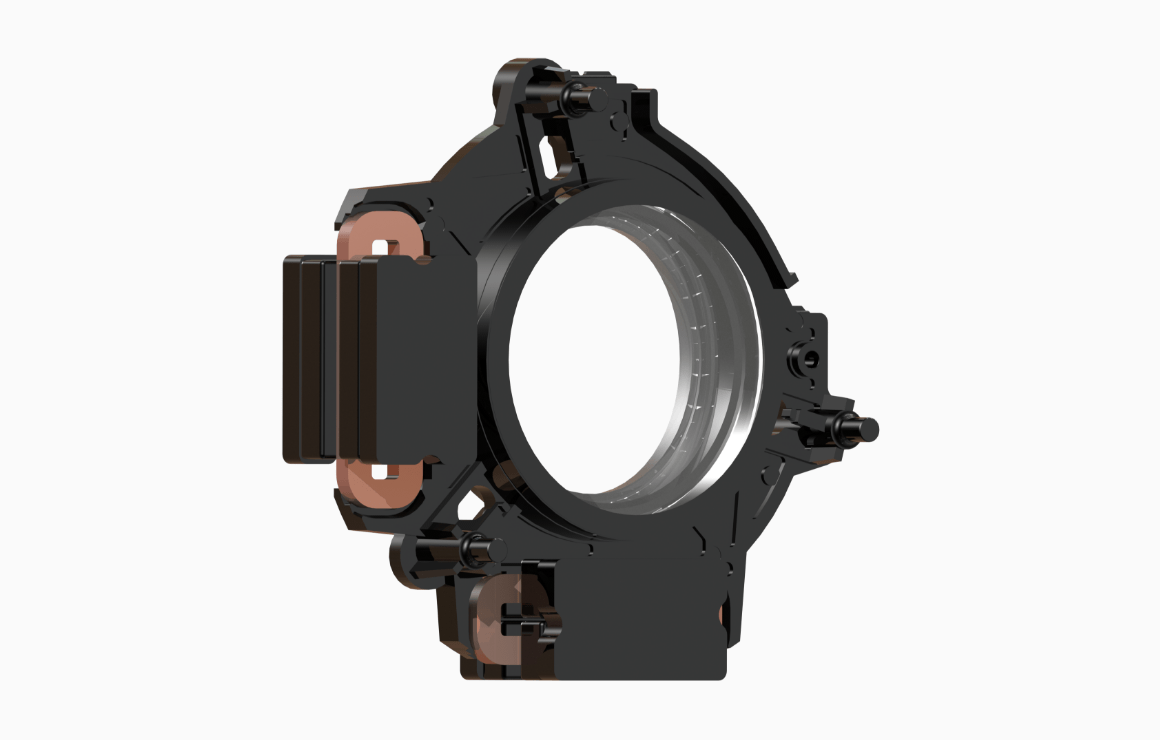

• High-speed AF owing to newly developed motor “HLA” to capture the decisive moment

  The autofocus of the Sigma 60-600mm F4.5-6.3 DG DN OS | Sports makes use of the newly developed linear motor “HLA (High-response Linear Actuator)”. This high-output linear motor and advanced electronic control realize a quiet autofocus with unparalleled high speed and high precision. The new motor also enables high focus-following performance, ensuring that the decisive moment is not missed in sports photography and any other situation where the subjects are in motion, from motor vehicles to birds in flight.

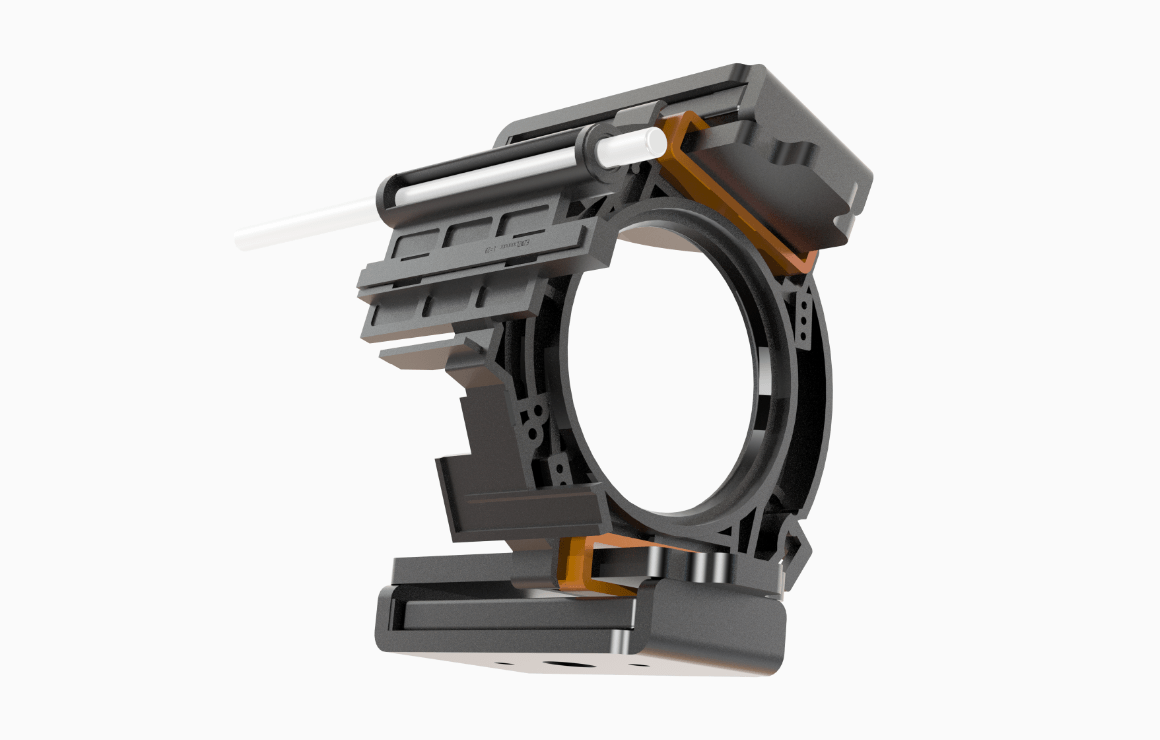

• Newly developed optical stabilizer algorithm “OS2” with high compensation capability of up to 7 stops

  The OS (Optical Stabilizer) function employs Sigma’s newly developed algorithm “OS2”. The new algorithm significantly improves image stabilization performance, with 7 stops at the wide end and 6 stops at the telephoto end. ^* This allows the lens to capture powerful and dynamic moments with a rich sense of motion.
  The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, while Mode 2 is best suited for fast panning shots, such as those in motorsports and other dynamic situations. In Mode 2, Sigma’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, irrespective of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.

  * Based on CIPA guidelines (measured in 60mm and 600mm with a 35mm full-size image sensor)

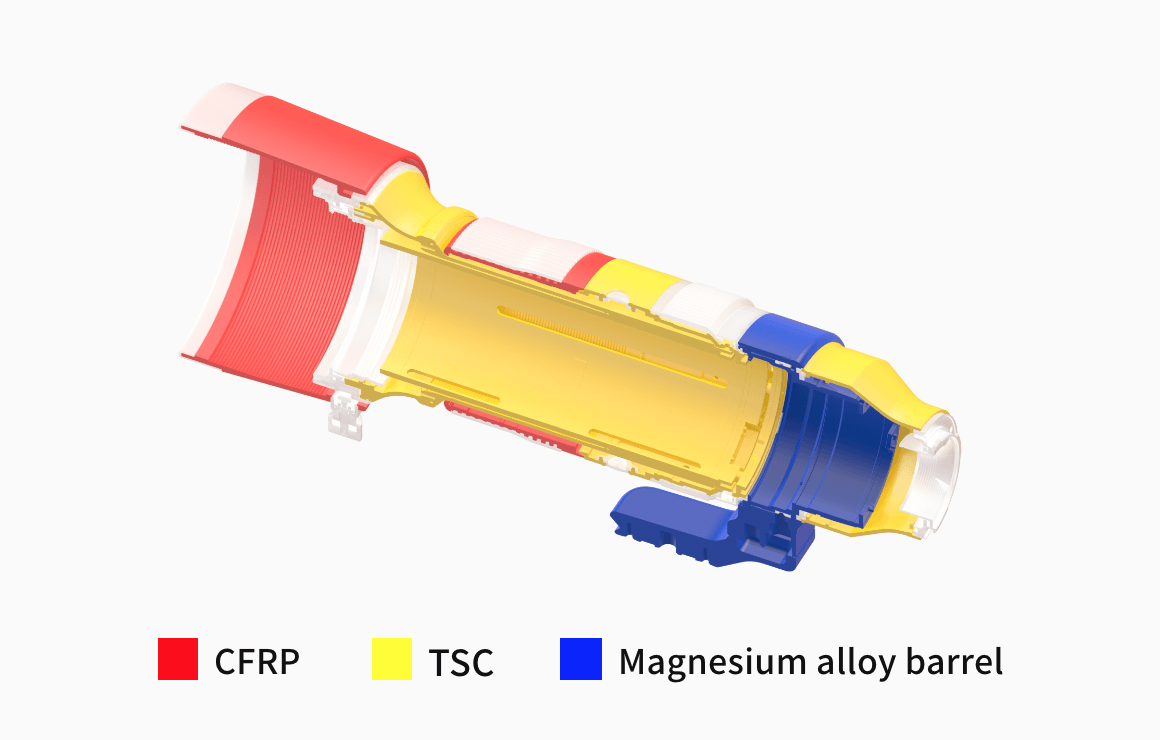

• Multi-material structure for lightweight and strong robustness

  The lens features a multi-material structure, in which materials such as magnesium, CFRP*1, and TSC*2 are optimally arranged according to their characteristics. As a result, the lens barrel is lighter in weight while retaining the same robustness as previous models, thereby providing high versatility in a variety of scenes and applications.

  *1 Carbon Fiber Reinforced Plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
  *2 Thermally Stable Composite, a polycarbonate with a thermal expansion rate similar to that of aluminum. Its high affinity to metal parts contributes to high manufacturing quality standards.

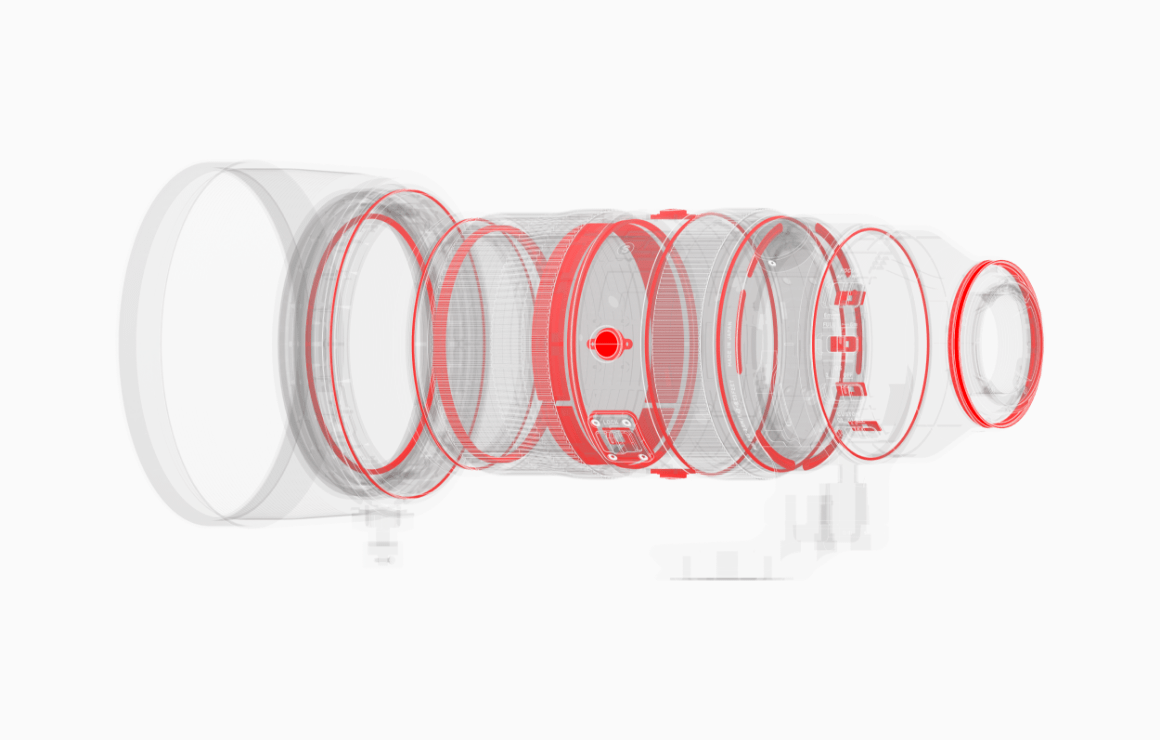

• Dust and Splash Resistant Structure for security in various shooting situations

  The mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection are all dust and splash resistant* to prevent dust and dirt from entering the lens. Further, the front element of the lens features a water and oil repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.

  * The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.



• High customizability and build quality of Sigma’s Sports line

  The Sigma 60-600mm F4.5-6.3 DG DN OS | Sports is equipped with substantial features of Sigma’s Sports line standard of high-mobility, high-performance lenses. Manufactured in Sigma’s sole production base in Aizu, Japan, the lens features an exceptional build quality that combines robustness with practicality and a high level of precision in every single detail.

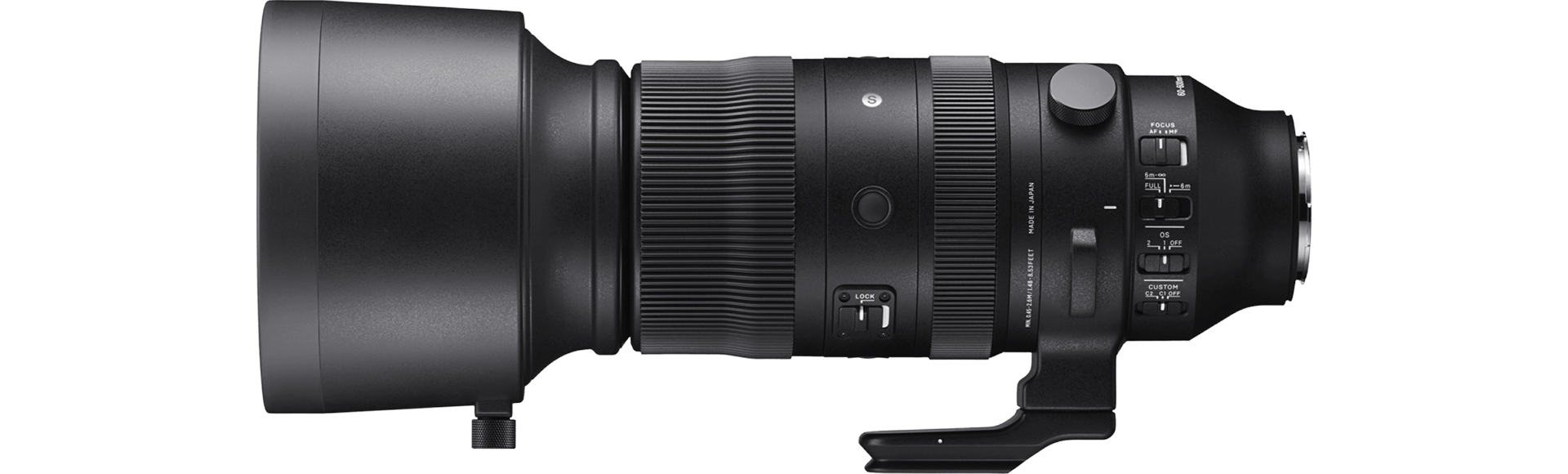

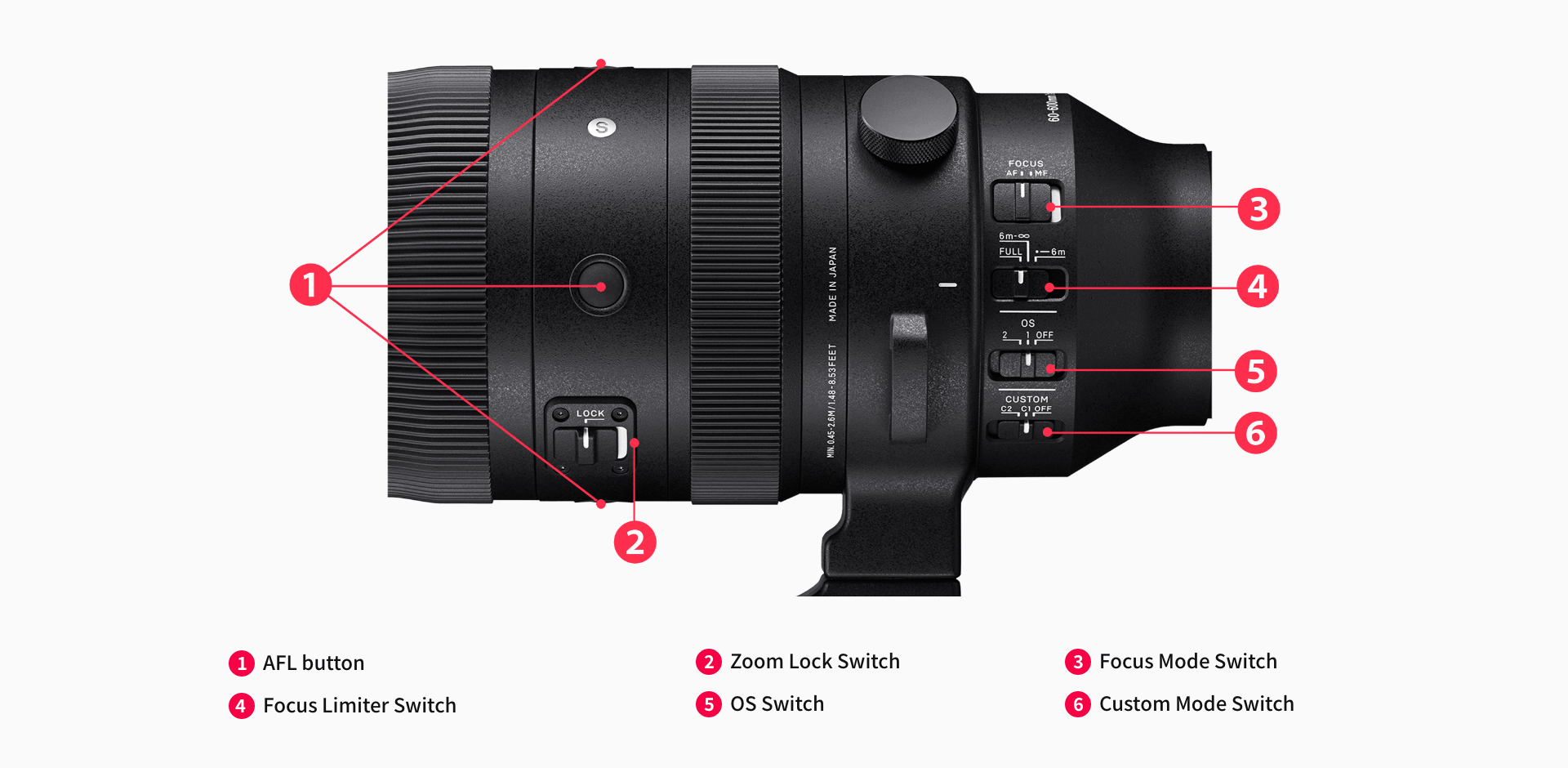

• Customizable functions

  Equipped with a Focus Limiter switch, the lens enables users to limit the focus driving range during AF when necessary, allowing quick and precise focusing.
  Further, the lens features three AFL buttons* ready to be assigned to preferred functions using the camera. The AFL buttons are easy to operate regardless of how the camera is oriented or which settings are used.
  For the L-Mount version, the Sigma USB DOCK UD-11 can be used to set OS operation or focus limiter range for the Custom Mode switch.

  * Only on compatible cameras. Available functions may vary depending on the camera used.

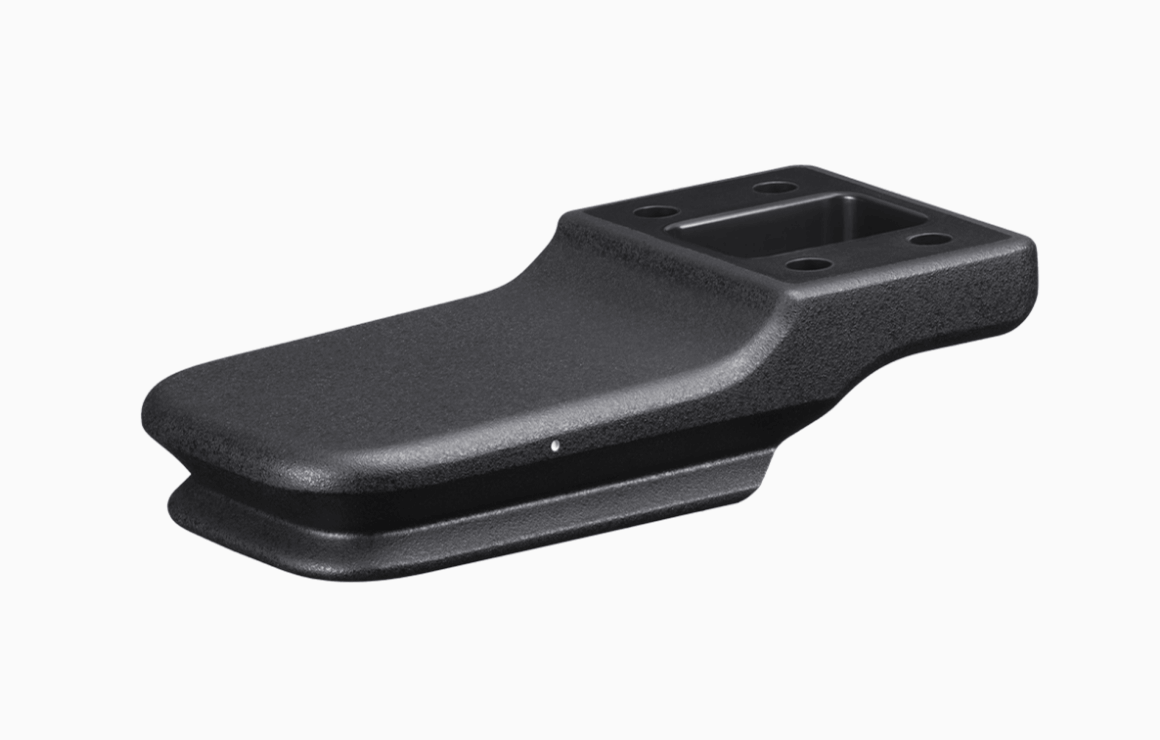

• Interchangeable Tripod Socket

  The lens body incorporates an Arca Swiss compatible magnesium alloy tripod socket. The leg can be removed and replaced with other interchangeable tripod sockets (sold separately) or attached to a monopod, allowing for a multitude of different uses and situations.

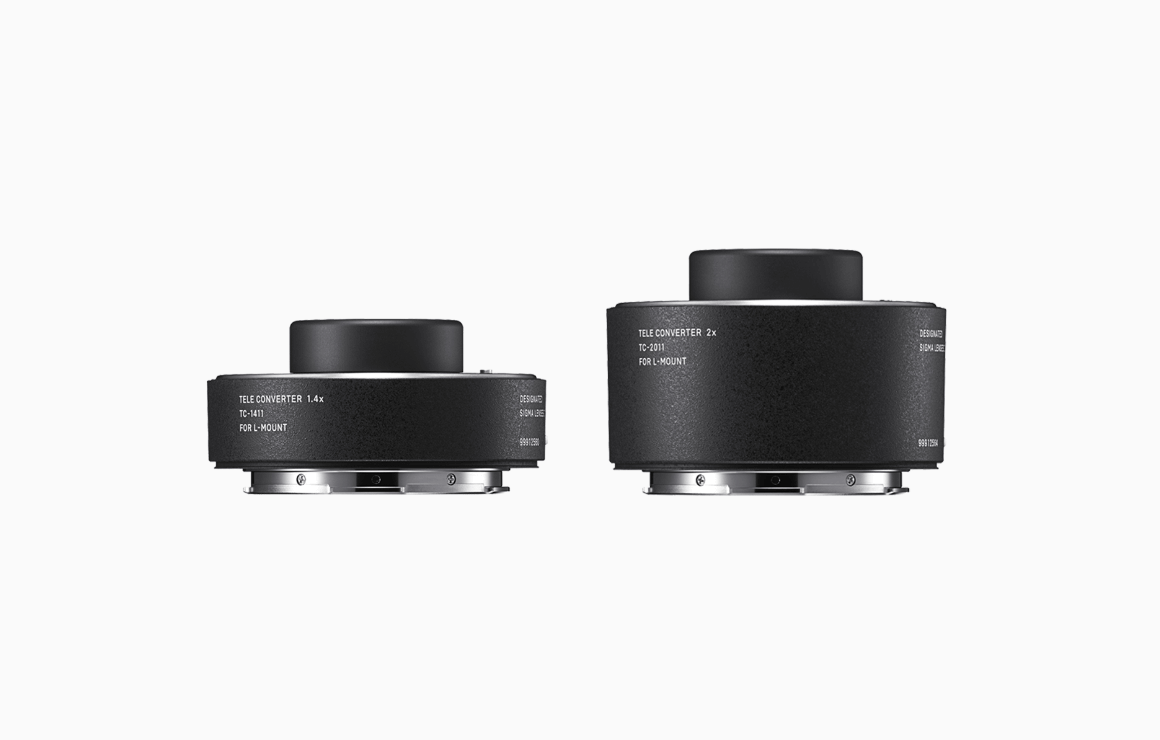

• Tele Converter for L-Mount (1.4x / 2.0x)

  The L-Mount version of the lens is compatible with the Sigma TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2.0x). Using a tele converter, the focal length can be multiplied by 1.4x and even 2x, for AF-enabled shooting at ultra-telephoto focal lengths of up to 1200mm.



Lens construction

FLD glass

SLD glass

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Diffraction MTF

Geometrical MTF

Geometrical MTF

Diffraction MTF (TC-1411)

Diffraction MTF (TC-1411)

Geometrical MTF (TC-1411)

Geometrical MTF (TC-1411)

Diffraction MTF (TC-2011)

Diffraction MTF (TC-2011)

Geometrical MTF (TC-2011)

Geometrical MTF (TC-2011)

• Lens construction: 27 elements in 19 groups (2 FLD and 3 SLD)

• Compatible with high-speed autofocus

• Support for DMF, AF + MF

• Compatible with AF assist (Sony E-mount only)

• OS switch

• Custom Mode switch

• Hood (LH1144-02)

• Tripod Socket TS-121 (replaceable lens foot type)

• Compatible with Sigma TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• Every single lens undergoes Sigma’s proprietary MTF measuring system

• 9-blade rounded diaphragm

• High-precision, durable brass bayonet mount
