Sports
150-600mm F5-6.3 DG DN OS

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  25 elements in 15 groups

• Angle of View

  16.4°-4.1°

• Number of Diaphragm Blades

  9 (Rounded diaphragm)

• Minimum Aperture

  F22-29

• Minimum Focusing Distance

  58-280cm / 22.8–110.2in.

• Maximum Magnification Ratio

  1:2.9　(At a focusing distance of 180mm)

• Filter Size

  φ95mm

• Dimensions (Diameter × Length)

  L-Mount：φ109.4mm × 263.6mm / φ4.3in. x 10.4in.

  Sony E-mount：φ109.4mm × 265.6mm / φ4.3in. x 10.5in.

  *The length of a lens is measured from the filter surface to its mount.

• Weight

  L-Mount：2,100g / 74.1oz. (Tripod socket included)

  Sony E-mount：2,100g / 74.1oz. (Tripod socket included)

• Edition Number

  S021

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH1034-01
  ・COVER LENS CAP LC-747E
  ・FRONT CAP LCF-95mm III
  ・REAR CAP LCR II
  ・TRIPOD SOCKET TS-121
  ・Shoulder Strap

• Mount / Product Barcode

  L-Mount：00-85126-74769-5

  Sony E-mount：00-85126-74765-7

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

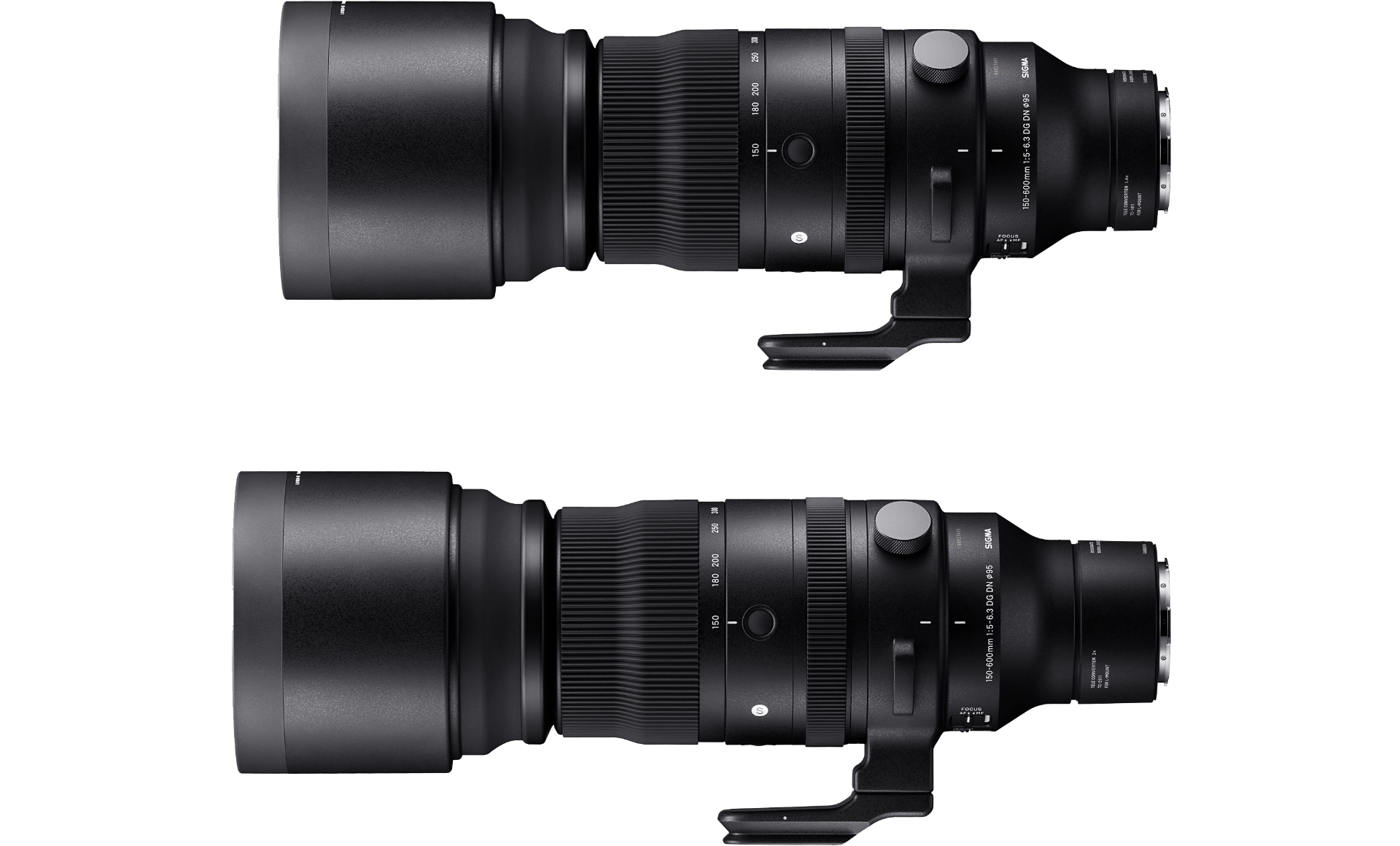

• Uncompromising optical performance throughout the zoom range

  The Sigma 150-600mm F5-6.3 DG DN OS | Sports offers outstanding optical performance throughout its zoom range and at all apertures, yielding professional quality results.

  Based on the latest optical design technology, its lens construction of 25 elements in 15 groups includes a range of special types of high-performance glass that ensures thorough control of different types of aberrations. This helps give images the resolution and clearest detail—not only at the tele end around 600mm, which is critical for an ultra-telephoto zoom, but also throughout its entire zoom range—with no compromise. The lens was designed with image quality in the out-of-focus areas in mind as well, with attractive compression and beautiful bokeh for creating eye-catching images that can only be achieved with a long focal length.

  Through improvements to the optical and mechanical designs as well as extensive simulated testing, the lens has achieved high resistance to ghosting and flare. This helps ensure sharp and high-contrast images even in strong sunlight or in backlit conditions.

  At the wide end of 150mm, the lens has an impressive minimum focusing distance of 58cm. On the L-Mount, the use of two dedicated teleconverters will allow you to shoot with AF up to 1200mm. With these features, this new ultra-telephoto lens is the perfect tool for tackling a broad range of shooting situations, giving you a greater freedom in your choice of composition.

• Compatible with TELE CONVERTER TC-1411 / TC-2011 for L-Mount

  The lens is compatible with TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2x).

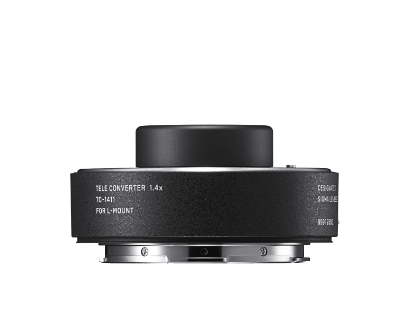

  TELE CONVERTER TC-1411

  The Sigma TELE CONVERTER TC-1411 is a teleconverter designed exclusively for the use with Sigma L-Mount lenses.
  Mounted between a lens and a camera body, the TC-1411 magnifies the focal length of the camera by 1.4x.

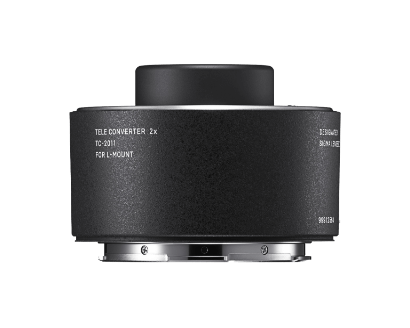

  TELE CONVERTER TC-2011

  The Sigma TELE CONVERTER TC-2011 is a teleconverter designed exclusively for the use with Sigma L-Mount lenses.
  Mounted between a lens and a camera body, the TC-2011 magnifies the focal length of the camera by 2x.

• Fast, high-precision AF and impressive functionality

  The 150-600mm F5-6.3 DG DN OS | Sports comes with the pro-level functionality that defines the Sigma Sports line lens, which is designed for capturing fast-action subjects.
  With an AF actuator controlled by a stepping motor, the lens combines fast and quiet autofocus with excellent tracking of moving objects. Furthermore, a (*)high-precision magnetic sensor enables highly accurate positioning for fast and high-precision AF. This is particularly impressive on an ultra-telephoto lens where the focus lens has to move a significant distance.
  The OS function delivers effective image stabilization that offers an advantage of approximately 4 stops*1, which is ideal for hand-held shooting at slower shutter speeds. It is possible to change the OS settings using the OS switch and Custom Mode switch to best suit the shooting situation. The lens has a Focus Limiter switch offering three-zone AF modification, which helps to speed up AF performance, and on the L-Mount it is possible to set a custom focusing limit*2 via the Sigma USB DOCK UD-11. The lens also has three AFL buttons to which you can assign various functions on the camera side depending on the model of camera used. This ensures that key settings are able to be customized to suit your shooting style and be accessed easily so that you can adapt quickly to changing conditions.
  With the fast and high-precision AF, 4 stops image stabilization, and a wide range of customizable functionality that comes with the Sigma 150-600mm F5-6.3 DG DN OS | Sports, the creative possibilities are limitless.

  *1 Based on CIPA guidelines (measured in 600mm with a 35mm full-size image sensor)
  *2 Function available on Sigma fp and fp L(it is necessary to update the camera’s firmware) .

  (*)high-precision magnetic sensor
  It is a sensor that can detect the position of the focus lens with a high degree of precision by using a magnetic signal. This is done in real time to improve AF accuracy.

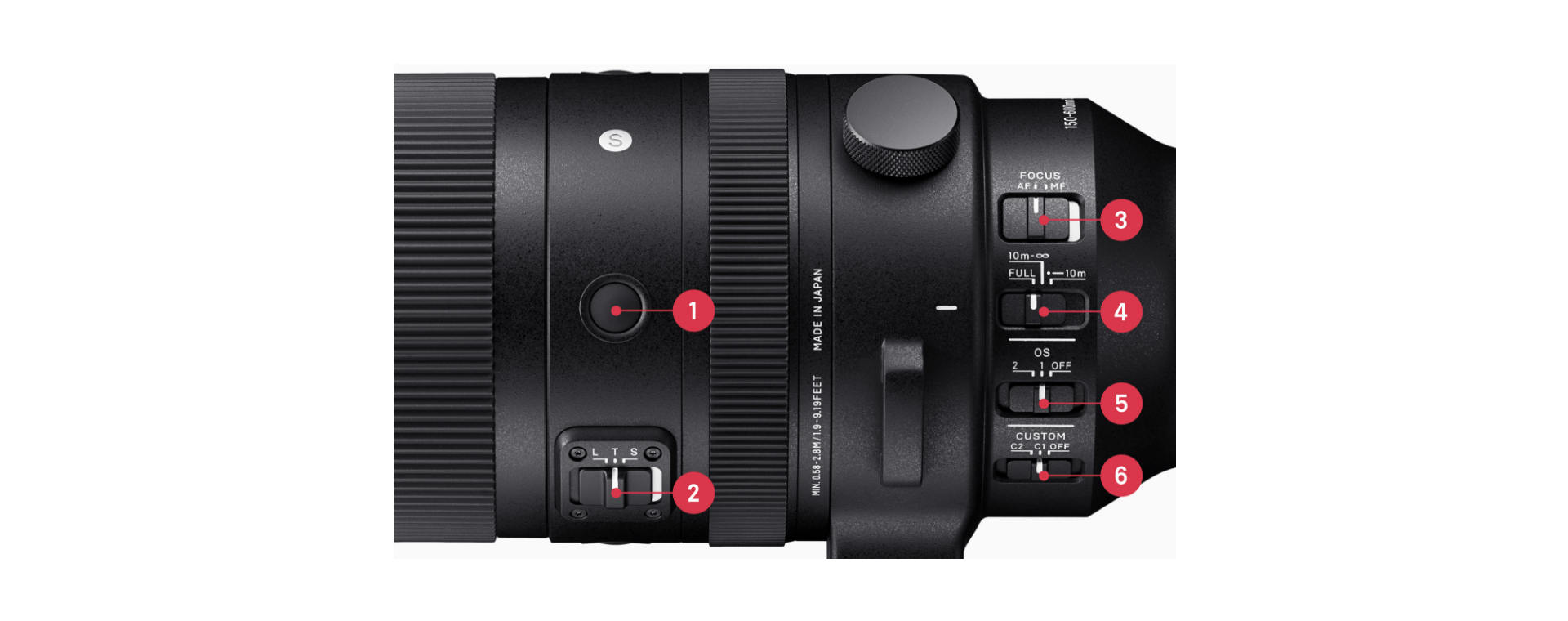

• 1 AFL buttons
  Various functions can be assigned to three AFL buttons on the camera side depending on the model of camera used.

  2 Zoom Torque switch
  The newly developed switch lets you change the zoom ring torque (resistance) and lock it at the wide end.
  L (Lock): The zoom ring fixed at the wide end.
  T (Tight): The zoom ring torque set on the higher side and kept at a focal length. This prevents the lens from extending or retracting due to its own weight when pointed either upward or downward.
  S (Smooth): The zoom ring torque set to low allows the lens to zoom in and out smoothly, suitable for straight zoom.

  3 Focus Mode switch

  4 Focus Limiter switch

  5 OS switch
  The OS switch toggles between two OS settings: Mode 1 for general photography and Mode 2 for motor sports and other applications requiring panning.

  6 Custom Mode switch
  Switch the OS effect.

  ■Default setting: for Sony E-Mount
  OFF: Standard
  The OS effect is well-balanced and suitable for a wide variety of scenes.
  C1: Dynamic View Mode
  This mode offers a recognizable OS effect to the image in the viewfinder. This helps to ensure the composition of images quickly.
  C2: Moderate View Mode
  This mode is quickly able to ascertain the difference between fine composition adjustment and unwanted camera shake. It provides a natural and smooth viewfinder image even when composition is changed rapidly.

  ■For L-Mount (with USB DOCK UD-11)
  The OS effect and a focus limiter setting can be assigned to either C1 or C2.

  *Function available on Sigma fp and fp L (it is necessary to update the camera’s firmware)



• Supports USB DOCK UD-11 for L-Mount

  With the 150-600mm F5-6.3 DG DN OS | Sports, it is possible to set Custom Mode switch, update lens firmware, and adjust the sensitivity of the manual focus ring. It is also possible to change the focus limiter distance.

  *Function available on supported cameras only.

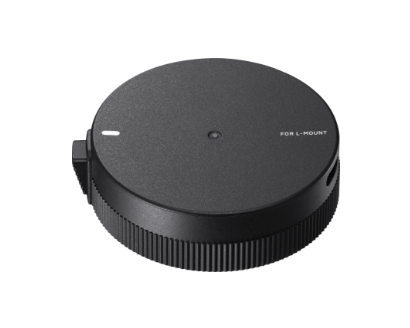

  USB DOCK UD-11

  Designed exclusively for the use with a Sigma Contemporary, Art, or Sports lens and its accessories, the Sigma USB DOCK allows users to update firmware and adjust the sensitivity of speed to the MF function* through the UD-11.

  * Scope of adjustment varies depending on specifications of the individual product.

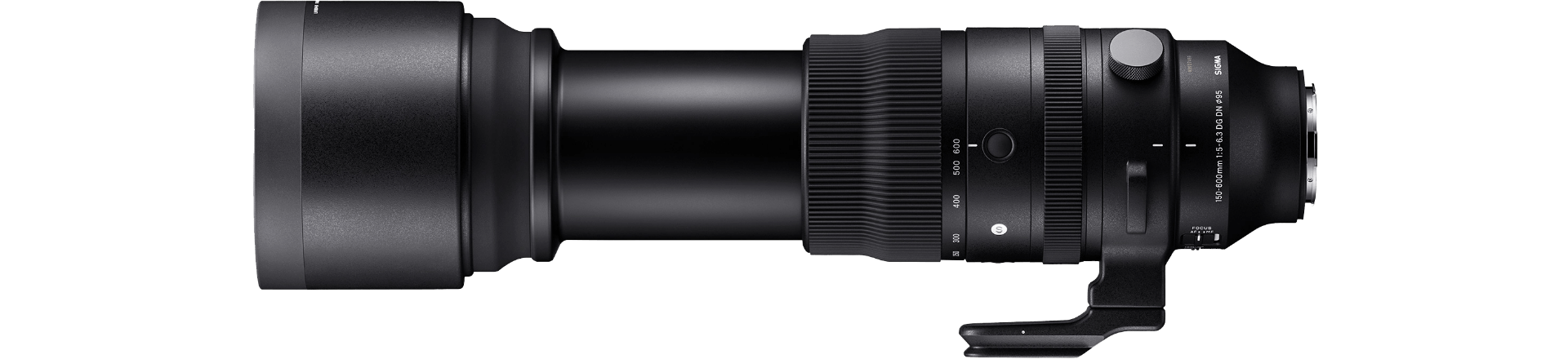

• Outstanding build quality optimized for ultra-telephoto photography

  The 150-600mm F5-6.3 DG DN OS | Sports combines the build quality that upholds the Sigma Sports line standards with excellent operability, taking into account different shooting environments and modes of operation expected with an ultra-telephoto lens.
  A dust and splash resistant structure*1 that stops water drops or dust from getting into the lens, combined with a water and oil repellent coating applied to the front element, gives you a peace of mind even in a harsh shooting environment.
  The lens features a Dual Action Zoom, which supports both straight zoom and ring zoom, allowing you to change the angle of view in a quick and intuitive way. In addition, there is also a newly incorporated Zoom Torque switch, with which you can change the resistance of the zoom ring and lock it at the wide end, ensuring ease of zoom operation as well as elimination of zoom creep.
  On the lens body there is a magnesium tripod socket attachable to an Arca Swiss type clamp. The foot is removable and may be replaced with an optional lens foot (replaceable lens foot type) or mounted on a monopod.
  The lens body uses parts made of aluminum and TSC (Thermally Stable Composite), where they are most suitable. TSC is a type of polycarbonate with a thermal expansion rate similar to that of aluminum, ensuring the lens behaves consistently at different temperatures. By taking advantage of its design intended exclusively for mirrorless camera systems, the lens is both robust—an attribute essential for the Sports line of lensesーand compact and lightweight. Compared to the Sigma 150-600mm F5-6.3 DG OS HSM | Sports, which is also a Sports line lens but designed for SLR cameras, the new lens is lighter by 760g and shorter by 26.6mm*2.

  *1 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
  *2 The 150-600mm F5-6.3 DG DN OS | Sports for L-Mount, compared to the 150-600mm F5-6.3 DG OS HSM | Sports for Sigma SA-mount.

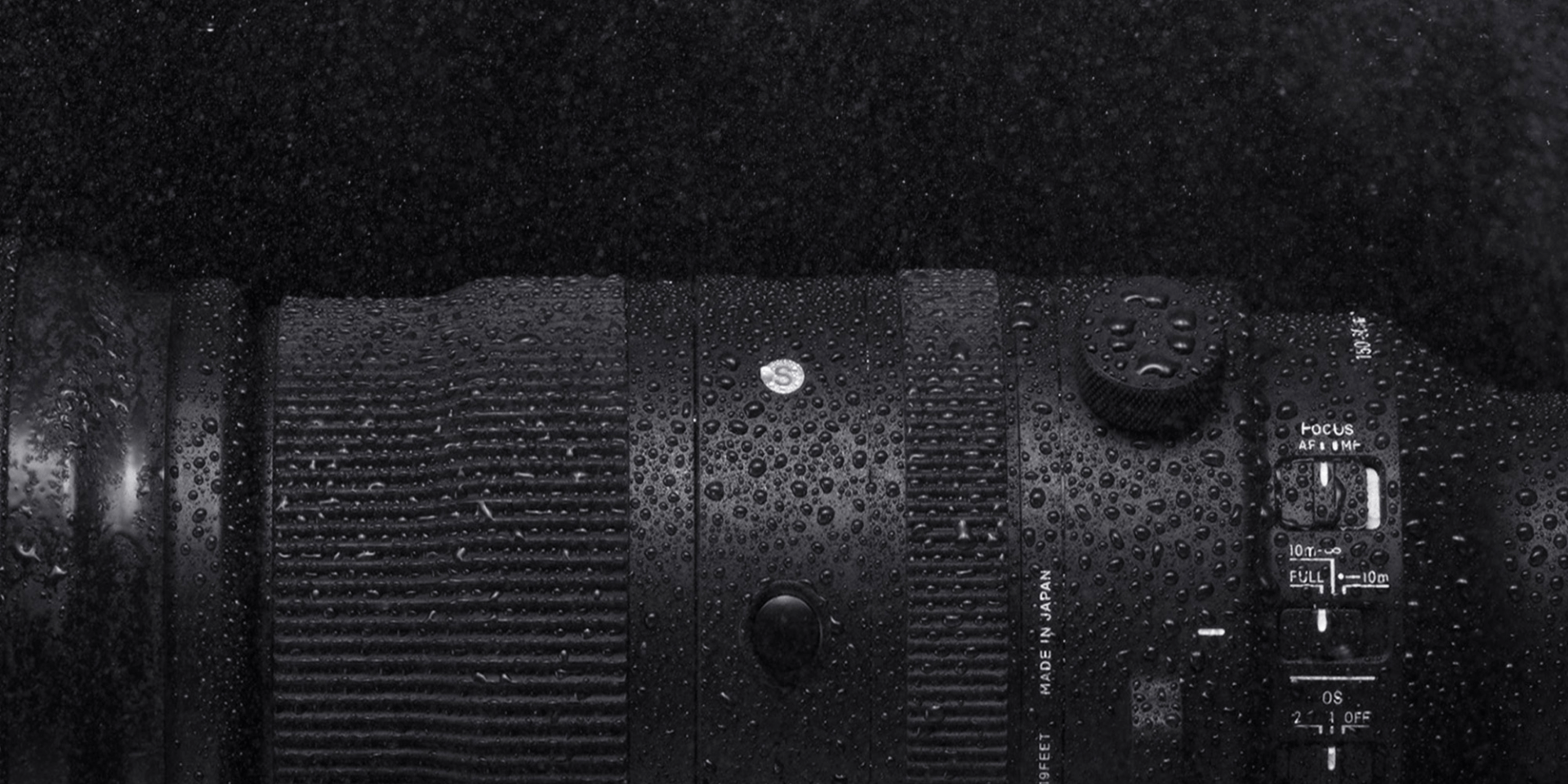

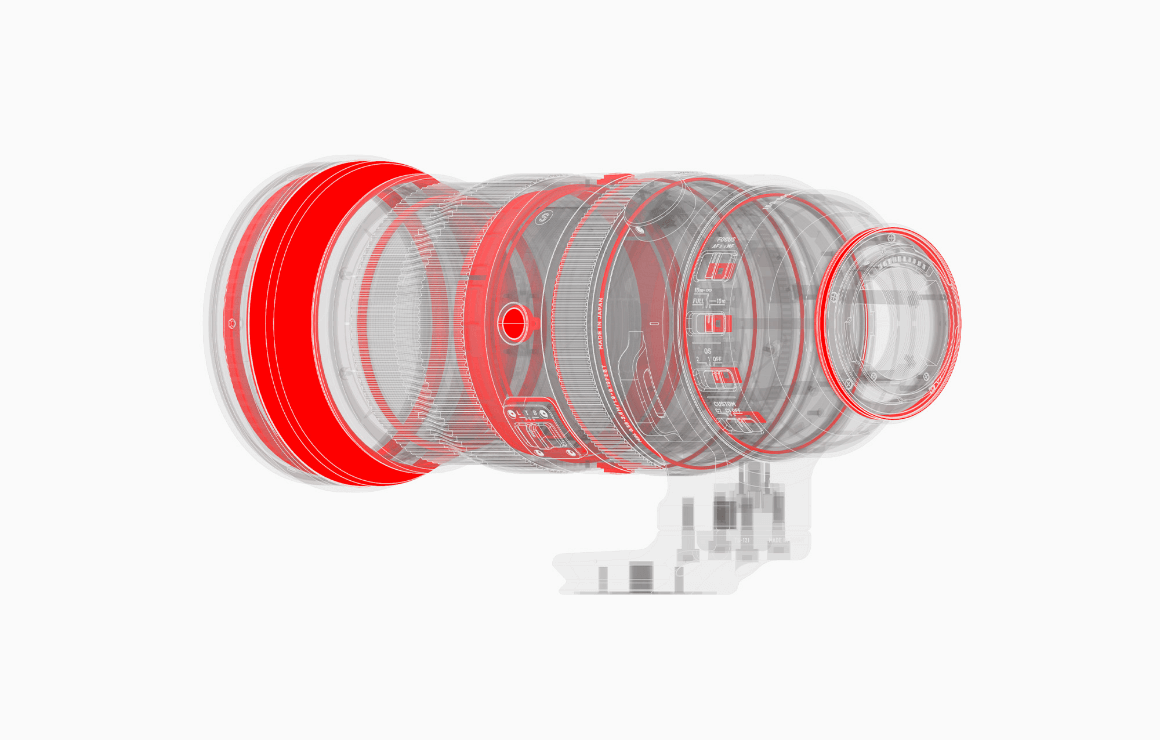

• Dust and Splash Resistant Structure*

  This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing you to work in all types of weather.

  * Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

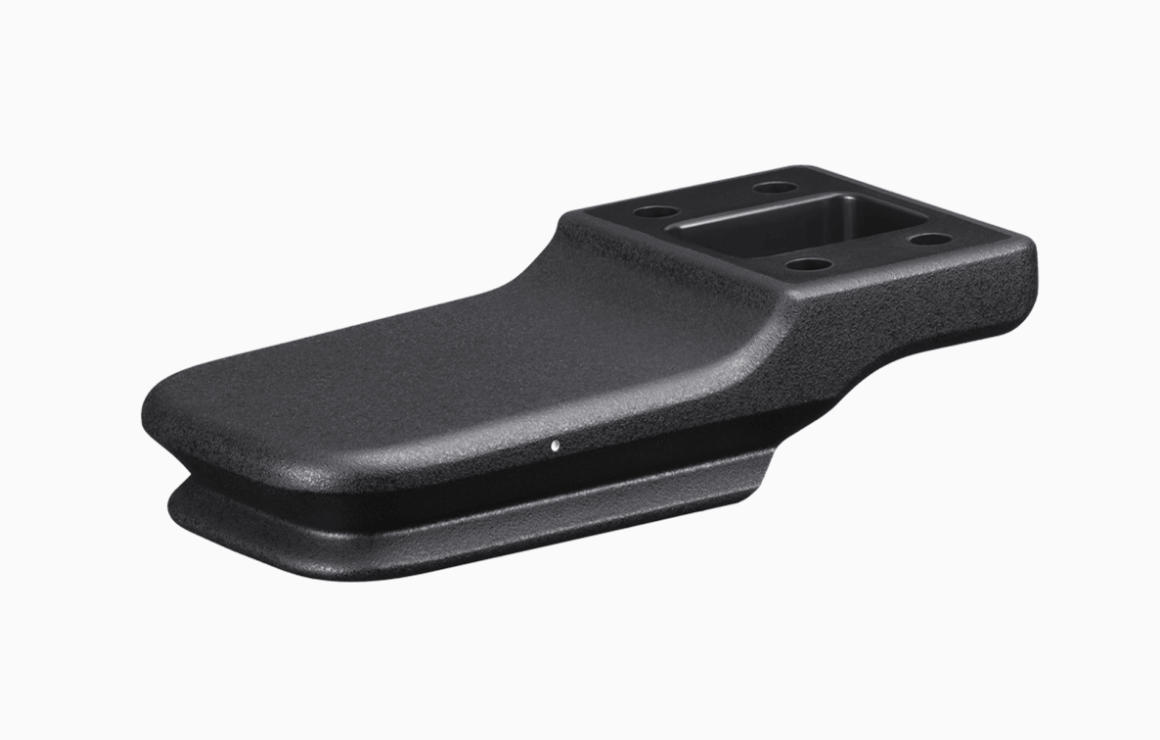

• Tripod socket

  The tripod socket with 90° click stops, made with a magnesium alloy that is both lightweight and tough, is incorporated to ensure easier changes of shooting position from vertical to horizontal and vice versa. It can be attached directly to an Arca Swiss type clamp.



Lens construction

FLD glass

SLD glass

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Diffraction MTF

Geometrical MTF

Geometrical MTF

Diffraction MTF (TC-1411)

Diffraction MTF (TC-1411)

Geometrical MTF (TC-1411)

Geometrical MTF (TC-1411)

Diffraction MTF (TC-2011)

Diffraction MTF (TC-2011)

Geometrical MTF (TC-2011)

Geometrical MTF (TC-2011)

• Lens construction: 25 elements in 15 groups, with 4 FLD and 2 SLD elements

• Compatible with high-speed autofocus

• Stepping motor

• Support DMF and AF+MF

• OS switch

• Custom Mode switch

• Zoom Torque switch

• Tripod Socket (Replaceable lens foot type) TS-121 fixed

• Cover Hood (LH1034-01)

• Compatible with Sigma TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Compatible with Sigma TRIPOD SOCKET TS-81 (Replaceable lens foot type / sold separately)

• Designed to minimize flare and ghosting

• Every single lens undergoes Sigma’s proprietary MTF measuring system

• 9-blade rounded diaphragm

• High-precision, durable brass bayonet mount
