Sports
60-600mm F4.5-6.3 DG OS HSM
Available mounts
- Sigma SA-mount
- Canon EF mount
- Nikon F mount
-
Camera Type
DSLR
-
Corresponding Mount
SIGMA SA-mount, Canon EF mount, Nikon F mount
-
Sensor Format
Full-frame [DG]
-
Lens Construction
25 elements in 19 groups
-
Angle of View
39.6-4.1°
-
Number of Diaphragm Blades
9 (Rounded diaphragm)
-
Minimum Aperture
F22-32
-
Minimum Focusing Distance
60-260cm / 23.6-102.4in.
-
Maximum Magnification Ratio
1:3.3(200mm)
-
Filter Size
φ105mm
-
Dimensions (Diameter × Length)
φ120.4mm × 268.9mm / ø4.7in. × 10.6in.
*The length of a lens is measured from the filter surface to its mount.
-
Weight
2,700g / 95.2oz.
-
Edition Number
S018
The three-digit code on the surface of the lens is to indicate the year the lens was first released.
(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.) -
Supplied Accessories
・Case
・LENS HOOD LH1144-01
・COVER LENS CAP LC-740E
・FRONT CAP LCF-105mm III
・REAR CAP LCR II
・TRIPOD SOCKET TS-101 fixed
・Shoulder Strap -
Mount / Product Barcode
SIGMA SA-mount：00-85126-73056-7
Canon EF mount：00-85126-73054-3 (discontinued)
Nikon F mount：00-85126-73055-0 (discontinued)
-
Camera Compatibility
LINK
-
*All figures calculated by Sigma SA mount.
*The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism. Functionality may be limited on some camera bodies. *For Nikon F mount cameras, please see (*)Nikon camera compatibility
* Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof.(*)Nikon F mount camera compatibility
Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.
Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
※Can be used with the Nikon "Mount Adapter FTZ" attachedBefore using with one of the cameras listed below, please update the lens to the latest firmware version.
D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
* The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).
-
High optical quality meeting the most stringent needs of professional photographers
This lens incorporates three FLD (“F” Low Dispersion) glass elements and one SLD (Special Low Dispersion) glass element to provide excellent correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge to edge performance through the entire zoom range. In addition, when shooting at the focal length of 200mm, the Sigma 60–600mm F4.5-6.3 DG OS HSM | Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance.
-

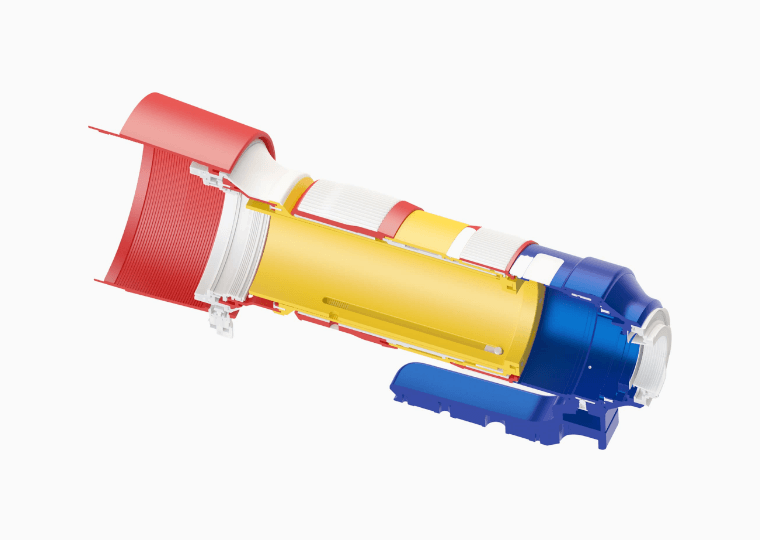

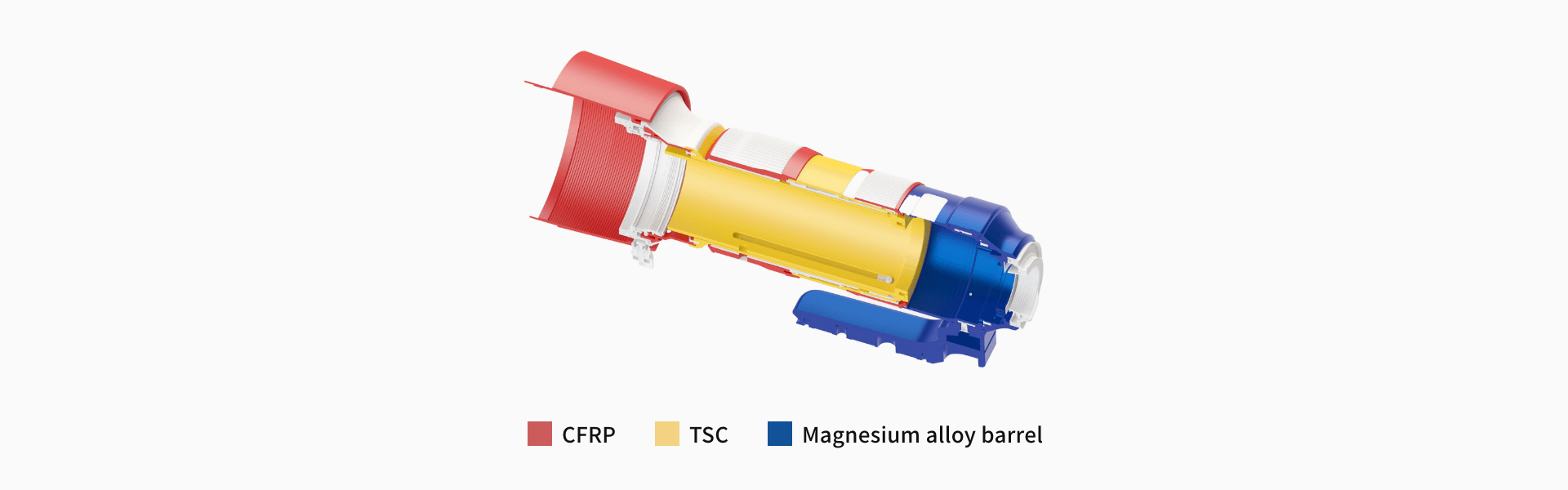

Incorporating multi-material to achieve both portability and durability
To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the Sigma 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*, and (*)TSC (Thermally Stable Composite). The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.
* Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
(*)TSC (Thermally Stable Composite)
TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has high affinity to metal parts which contributes to high quality product manufacturing.
-

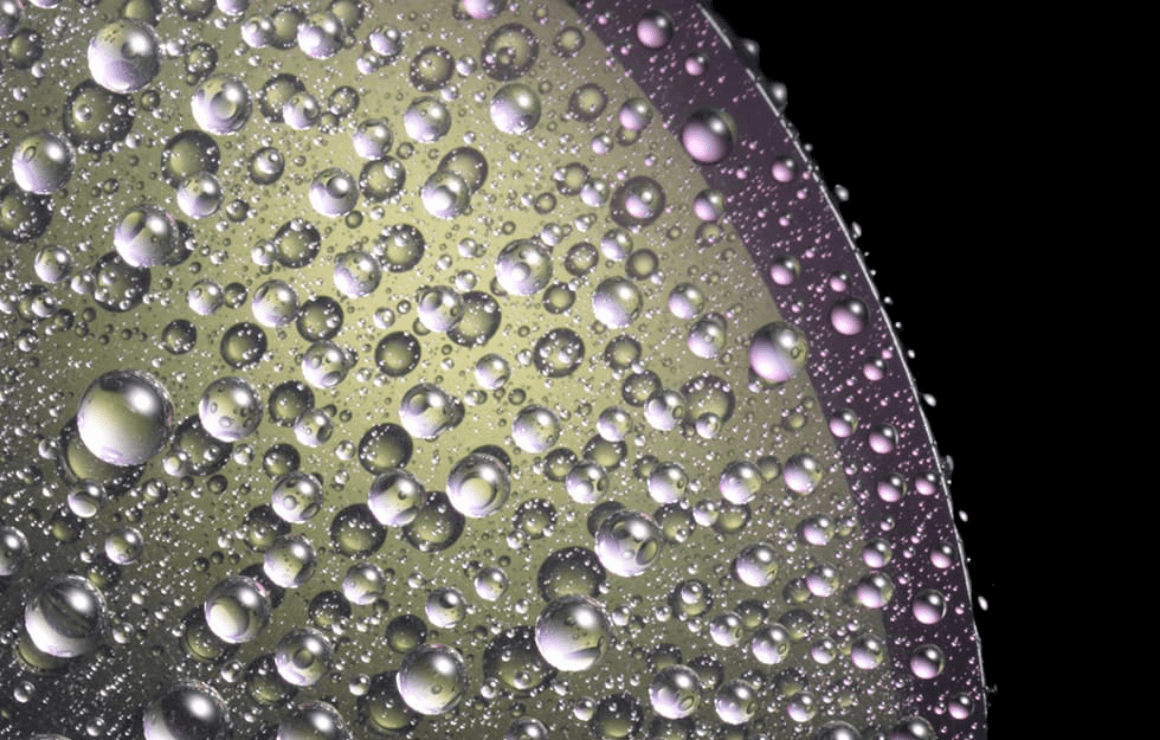

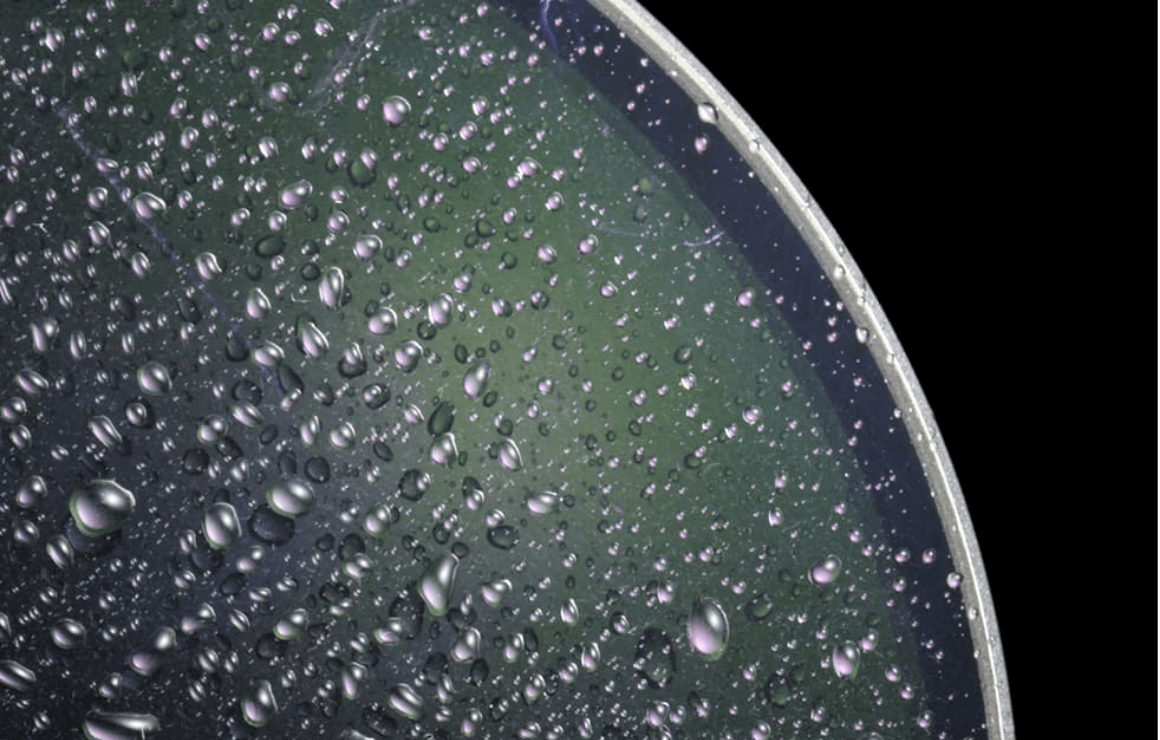

water- and oil-repellent coating
The front lens element incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Without Coating
With Coating
-

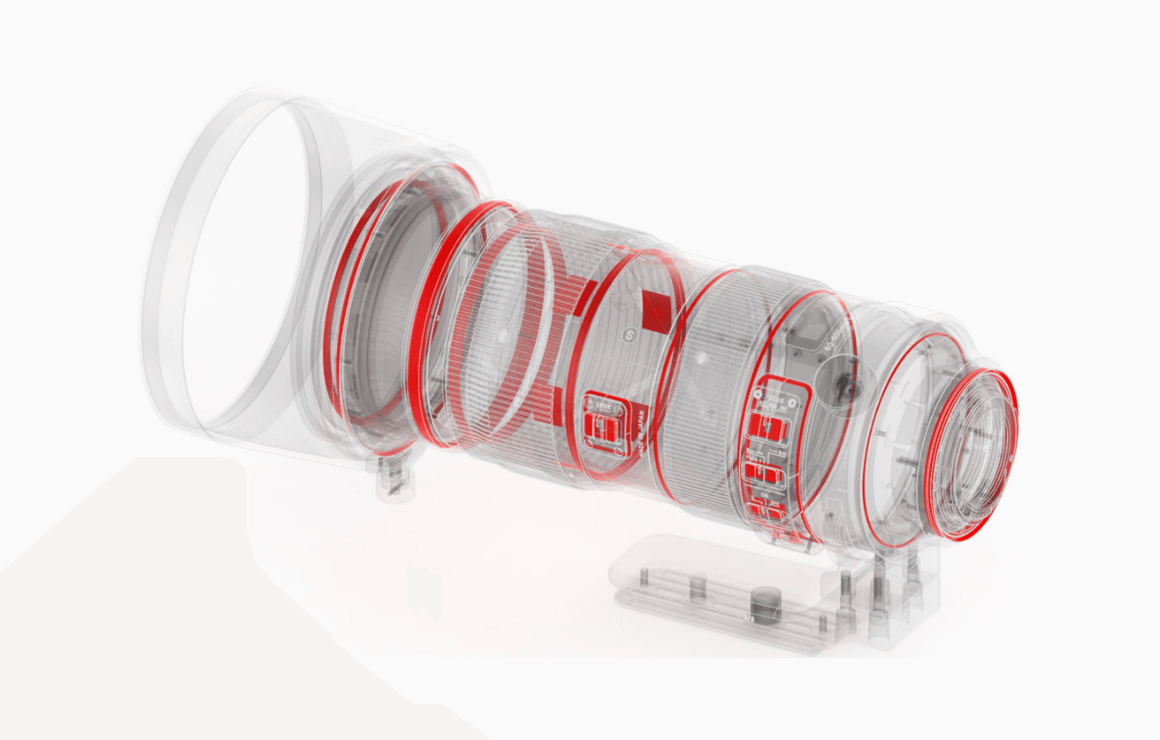

Dust and Splash Resistant Structure*
This lens features a highly effective dust and splash resistant structure* with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing photographers to work in all types of weather.
* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
-

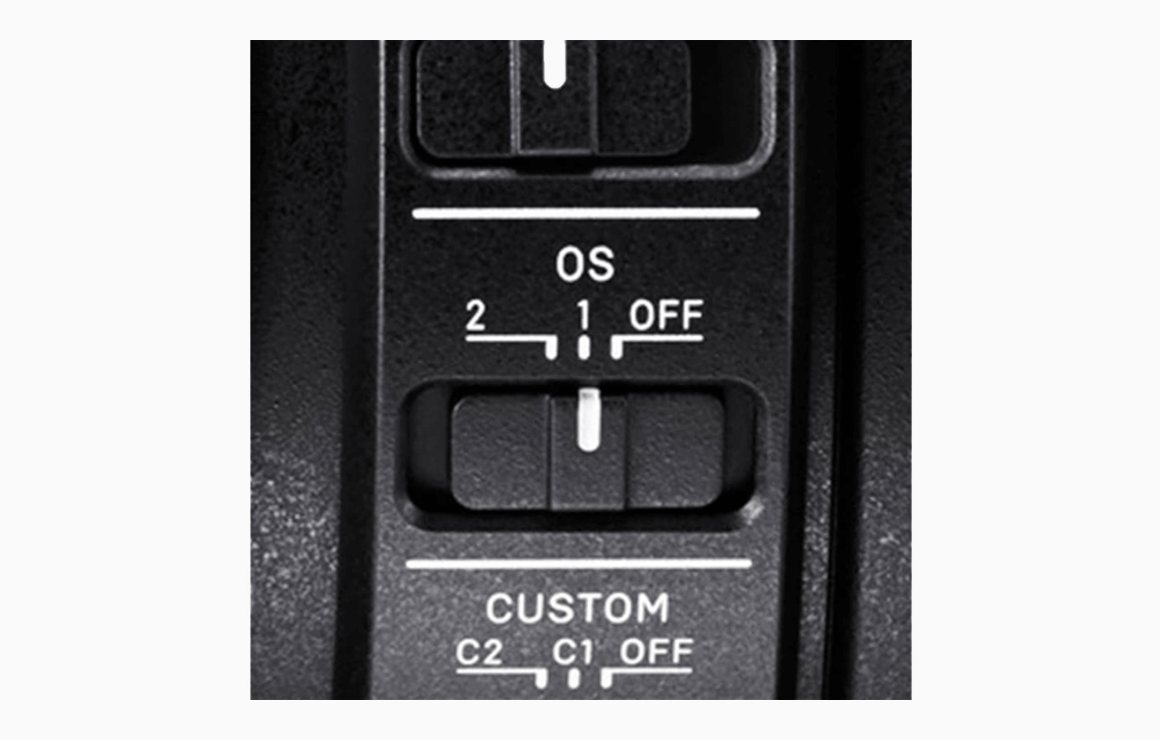

Intelligent OS
This lens incorporates Intelligent OS adopting the latest algorithm to deliver an image stabilization effect of 4 stops.
-

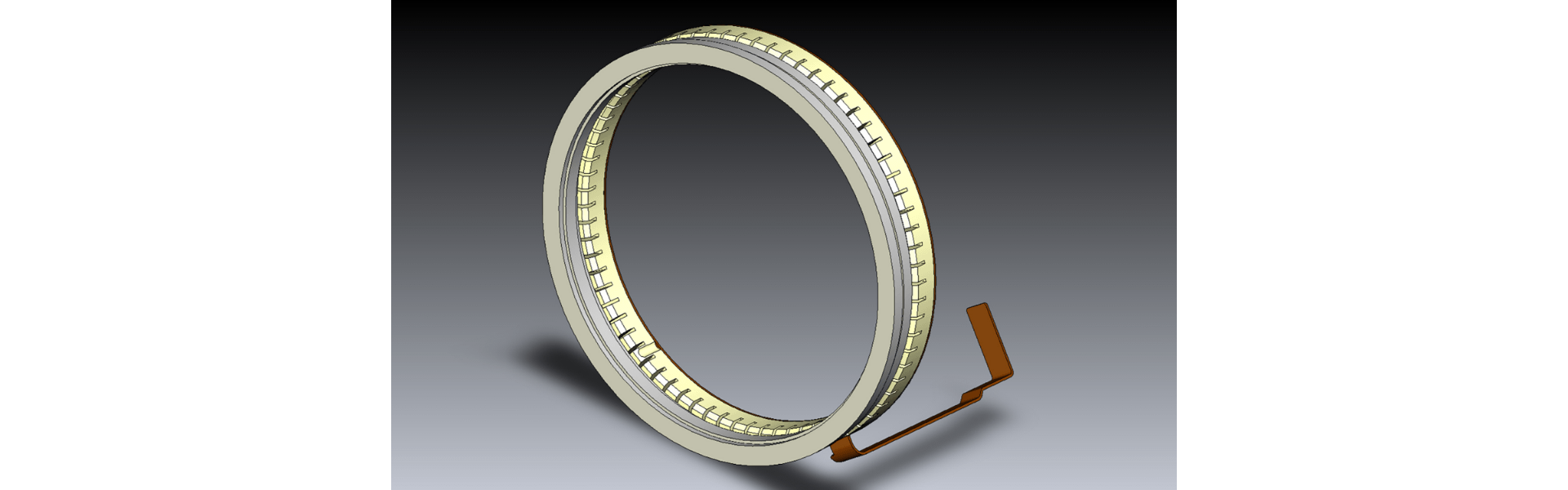

High-speed AF
The HSM (Hyper Sonic Motor) ensures high speed and quiet AF.
-
Multi-material
-
Push/pull zoom mechanism
-

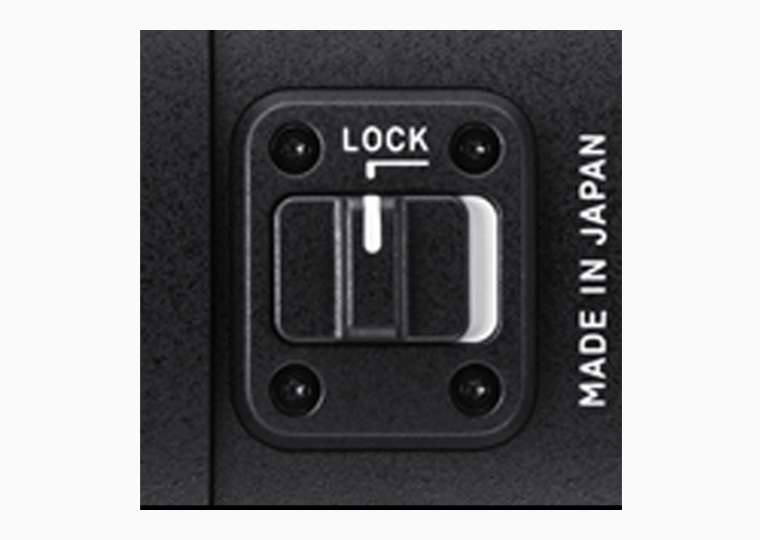

Zoom lock switch
-
Tripod socket

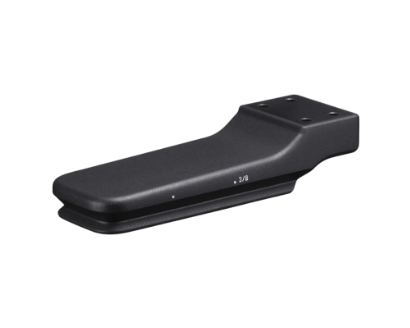

Tripod socket with high usability
– With 90° click stops
– Replaceable lens foot
– Compatible with Arca Swiss type clamps
-
Tele Converters
Tele Converters that are designed to match the current lens lineup (optional) can be attached.
* The addition of Sigma’s TELE CONVERTER TC-1401 or TELE CONVERTER TC-2001 produces an AF 84-840mm F6.3-9 hyper-telephoto zoom lens or a MF 120-1200mm F9-13 hyper-telephoto zoom lens respectively.
* When it is attached to cameras that are compatible with AF at F8, focus accuracy is not ensured on the telephoto side at the focal length scale more than 300mm.
-
Manual override (MO)
Manual override (MO) capable of switching two full-time manual modes
* By setting it to the MO position, it switches to manual focus by rotating the focus ring even during continuous AF. Using the optional Sigma USB DOCK, it is possible to adjust the MO position’s sensitivity to switch to manual focus.
-
Customization
By connecting the lens to a computer with the Sigma USB DOCK, photographers can update the lens firmware and adjust the following settings. Exclusive Sigma Optimization Pro software makes customization easy.
1.Updating Lens Firmware
2.Focus Setting
3.Full-time MF Setting
4.AF Speed Adjustment
5.Focus Limiter Adjustment
6.OS Setting
-

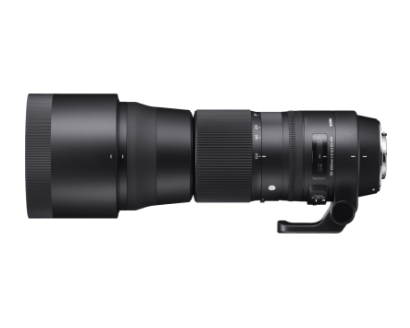

Sigma 600mm hyper-telephoto zoom lens lineup accommodates diverse shooting styles
The arrival of the 60-600mm F4.5-6.3 DG OS HSM | Sports expands the lineup of Sigma’s 600mm zooms to three lenses. The Sigma 60-600mm F4.5-6.3 DG OS HSM | Sports is “versatile”, focusing on high image quality and mobility, demonstrating superior coverage from a standard focal length to a hyper-telephoto range without switching to another lens. The 150-600mm F5-6.3 DG OS HSM | Sports is composed of many metal parts aiming at a “robust” structure. The lineup of these two Sports line lenses that can meet the most stringent needs of professionals, together with the Contemporary line’s “lightweight” 150-600mm F5-6.3 DG OS HSM | Contemporary, which reduces weight and makes the shooting experience even more comfortable and convenient, Sigma undoubtedly satisfies the diverse shooting styles of photographers.
-

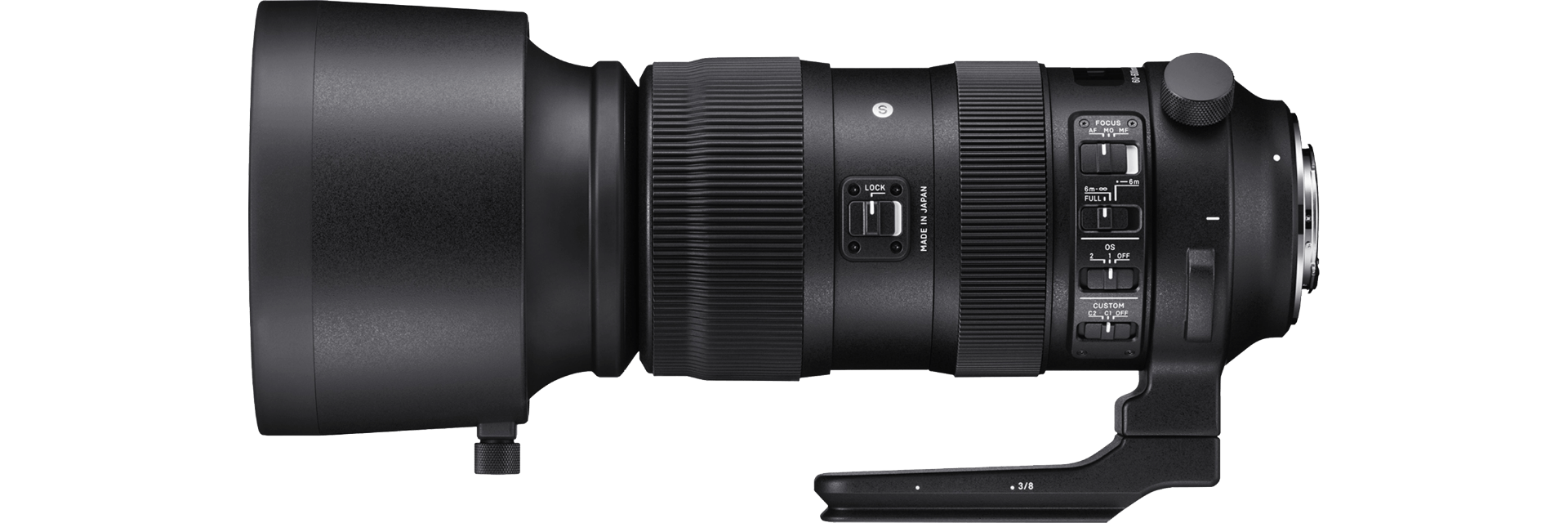

Ease-of-use specifications

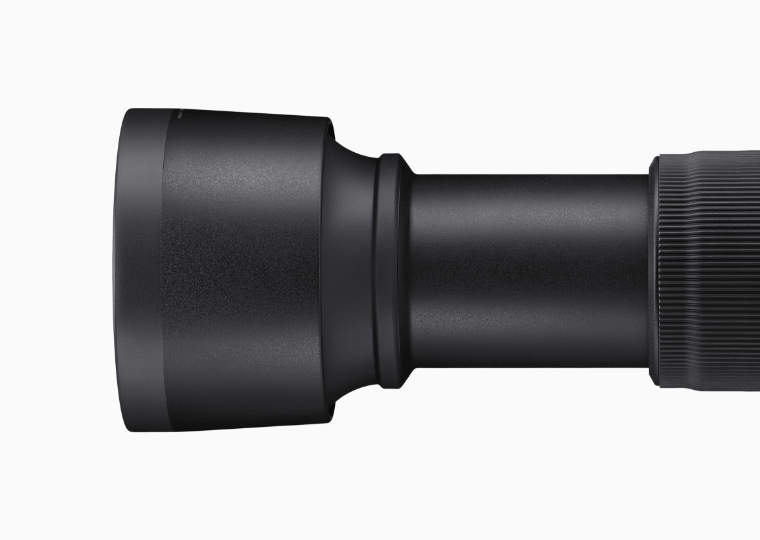

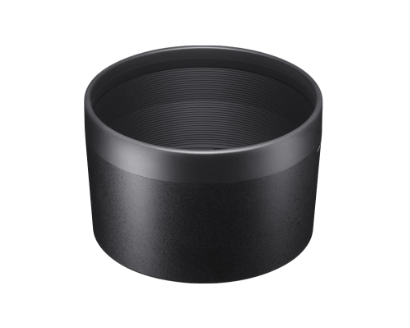

Instead of conventional ABS plastic, the exclusive lens hood features CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications. The Arca-Swiss tripod socket is compatible with Arca-Swiss platforms and clamps.
Exclusive lens hood featuring CFRP
Tripod Socket
-
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.
-

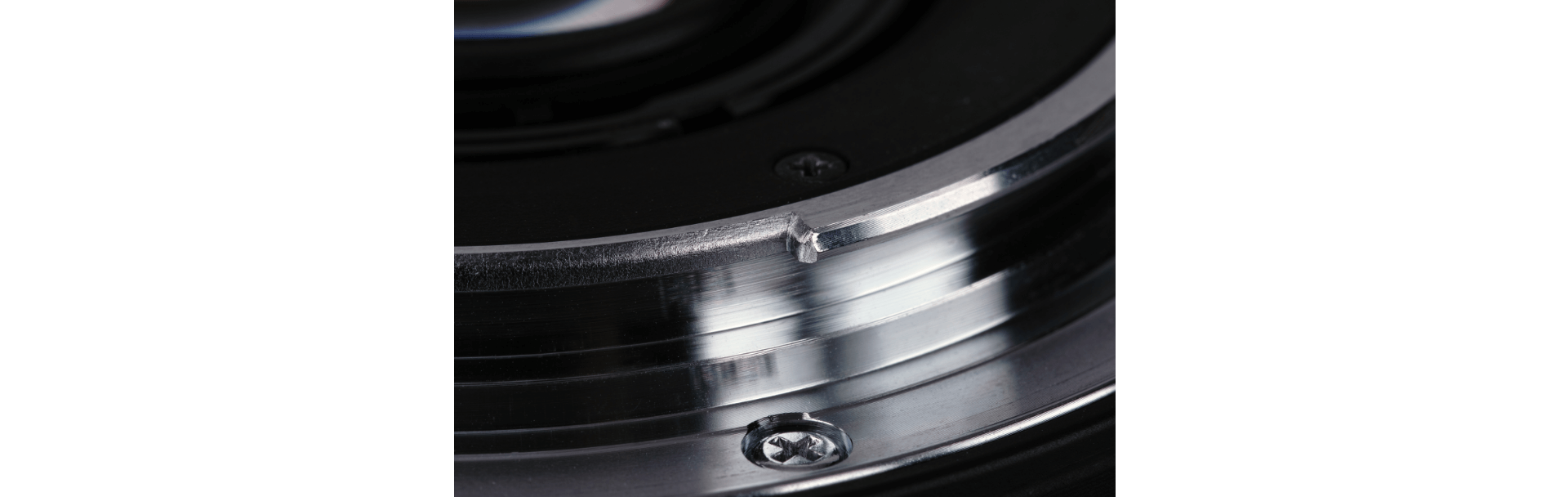

High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
-
Nikon electromagnetic diaphragm mechanism included
The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism that allows it to receive the appropriate signals from the camera body. This feature ensures precision diaphragm control and stable Auto Exposure (AE) performance during continuous shooting.
(*)Nikon F mount camera compatibility
(*)Nikon F mount camera compatibility
Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.
Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100
※Can be used with the Nikon "Mount Adapter FTZ" attachedBefore using with one of the cameras listed below, please update the lens to the latest firmware version.
D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000
* The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras). -

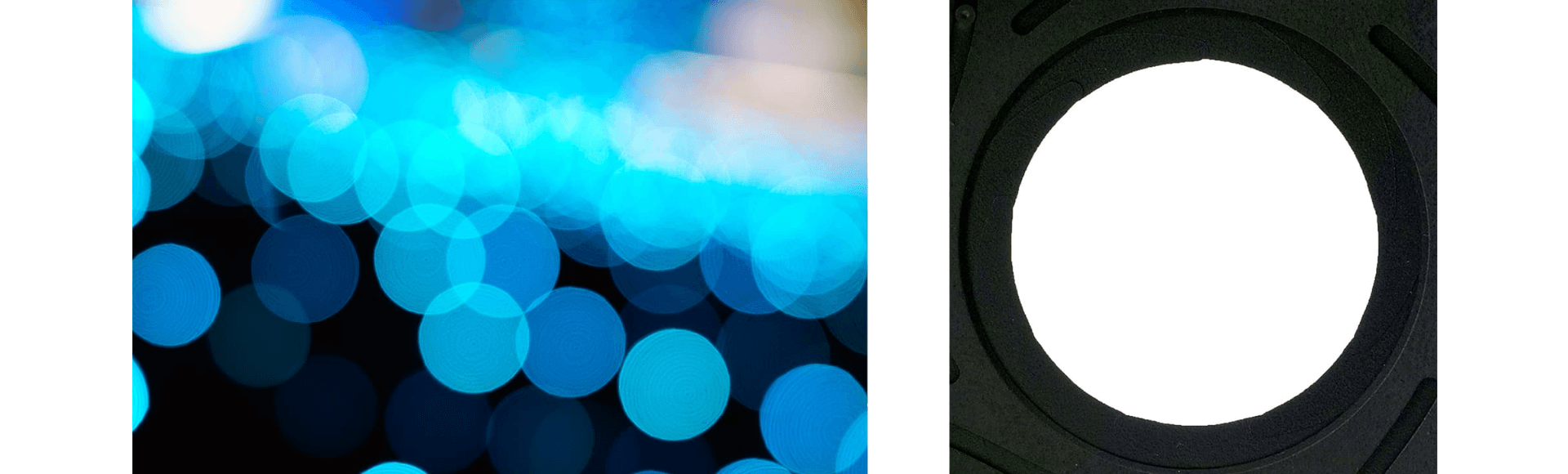

Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
-
Compatible with Canon Lens Aberration Correction
The Canon mount version of this lens is compatible with the Canon Lens Aberration Correction function*. Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
* Function not available on all Canon cameras. Available corrections may vary depending on the Canon camera model.
(*)Canon camera compatibility
(*)Canon camera compatibility
The SGV interchangeable lens for Canon EF mount supports the "lens optical correction" installed in the following cameras.
Canon camera compatibility
EOS R5※, EOS R6※, EOS R※, EOS RP※, EOS Ra※, EOS-1D X Mark III,EOS 1DX mark Ⅱ, EOS 5Ds, EOS 5DsR, EOS 5D mark Ⅳ, EOS 6D mark Ⅱ, EOS 90D, EOS 80D, EOS 8000D（EOS Rebel T6s, EOS 760D）, EOS 9000D（EOS 77D）, EOS Kiss X8i（EOS Rebel T6i, EOS 750D）, EOS Kiss X9i（EOS Rebel T7i, EOS 800D）, EOS Kiss X9（EOS Rebel SL2, EOS 200D）, EOS Kiss X10i, EOS Kiss X10
※ For SGV interchangeable lenses released before 2017* , it is necessary that the lens firmware is updated to Ver.2.00 or later.
* The release year can be confirmed by the edition number (A017, C015, etc.) engraved on the lens barrel.※After setting the Digital Lens Optimizer to [OFF], set the "Peripheral Illumination Correction", "Chromatic Aberration Correction", and "Distortion Correction" of the "Lens Aberration Correction" function to [ON] to achieve the appropriate corrections in accordance with the optical characteristics of each lens.
Lens construction
FLD glass
SLD glass
MTF Chart
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
-
Spatial frequency
S:Sagittal Line
M:Meridional Line
-
10lp/mm
-
30lp/mm
Diffraction MTF
Diffraction MTF
Geometrical MTF
Geometrical MTF
Distortion
effective distortion
When you take a picture of a lattice pattern, it will appear as the blue dotted line shows. The red line illustrates how the lattice pattern will appear in the actual picture when any lens distortion is taken into account.
relative distortion
In this chart, the horizontal axis shows the ideal image height (the distance from the center to the edge of the image [mm]). The vertical axis shows the extent of distortion. The extent of distortion is represented by how much Y, which is the actual image height, grows (or shrinks) against Y0 which is the ideal image height.
When you take the picture of a square object, if the distortion amount shows a minus value, the image will be seen as expanded (Barrel distortion). If the distortion amount is a plus value, it will be seen as a recessed (Pincushion distortion). When the distortion value is close to 0, the appearance of distortion is very minimal.
Vignetting
The horizontal axis shows the image height (the distance from the center to the edge of the image [mm]).The vertical axis shows the amount of light in the image (based on the amount of light in the image center being 100%). If the peripheral amount of light is lower than the center, the four corners of image will be darker (vignetting).
-
F4.5(60mm) - F6.3(600mm)
-
F11(60mm) - F11(600mm)
-
F22(60mm) - FF22(600mm)
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/800s |
| Lens F Number | F4.5 |
| ISO | 200 |
| Focal Length | 60mm |
| Photographer | Juzo Iwaki |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/200s |
| Lens F Number | F6.3 |
| ISO | 200 |
| Focal Length | 600mm |
| Photographer | Juzo Iwaki |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/8000s |
| Lens F Number | F6.3 |
| ISO | 250 |
| Focal Length | 600mm |
| Photographer | Satoru Korenaga |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/8000s |
| Lens F Number | F6.3 |
| ISO | 250 |
| Focal Length | 600mm |
| Photographer | Satoru Korenaga |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/100s |
| Lens F Number | F6.3 |
| ISO | 100 |
| Focal Length | 442mm |
| Photographer | Wataru Nakamura |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/125s |
| Lens F Number | F6.3 |
| ISO | 640 |
| Focal Length | 600mm |
| Photographer | Wataru Nakamura |
| Camera | Canon EOS 5DS R |
|---|---|
| Shutter Speed | 1/500s |
| Lens F Number | F8 |
| ISO | 400 |
| Focal Length | 310mm |
| Photographer | Wataru Nakamura |
The absolute all-rounder.
Effortlessly covering from standard
to hyper-telephoto.
The world’s first 10× optical zoom telephoto lens with a tele end of 600mm *1
Covering from 60mm to 600mm, the 10× hyper-telephoto zoom lens achieves the same level of high image quality as the Sigma 150–600mm F5-6.3 DG OS HSM | Sports. With the lens construction of 25 elements in 19 groups, consistent image quality can be created throughout the entire zoom range. This lens also incorporates (*)Intelligent OS adopting the latest algorithm to deliver an image stabilization effect of 4 stops*2. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement. High ratio, high image quality, and high mobility ―The Sigma 60–600mm F4.5-6.3 DG OS HSM | Sports marks the birth of a lens that is on another level from existing high ratio zoom lenses.
*1 Among interchangeable lenses for digital SLRs as of September, 2018
*2 Based on CIPA guidelines (Measured in 600mm with a 35mm full-size image sensor)
Embodying the concept of our Sports line of lenses, this lens responds directly to photographers' needs with outstanding action-capture performance.
In addition to the highest levels of optical performance and photographic expression, Sigma’s new Sports line of lenses offers the kind of action-capture performance that precisely executes the intentions of the photographer. Uncompromising optical performance and photographic expression allow the photographer to shoot fast-moving and distant subjects, while exceptional functionality makes possible excellent shots even in the most challenging of situations. Fully customizable, it allows the photographer to create his or own specification. It is an ideal choice for photographing many different subjects; birds, wild animals, airplanes, motorsports, and even portraits. And Sigma’s exclusive software makes the lens extremely easy to customize.
(*)Intelligent OS
Intelligent OS is an algorithm specially designed for panning shots. It enables effective image stabilization even when the camera is moved vertically or diagonally, regardless of the horizontal and vertical orientation. This feature is available on all of Sigma's telephoto lenses that have OS switches 1 and 2, with the exception of the Sigma 120-300mm F2.8 DG OS HSM | Sports.
