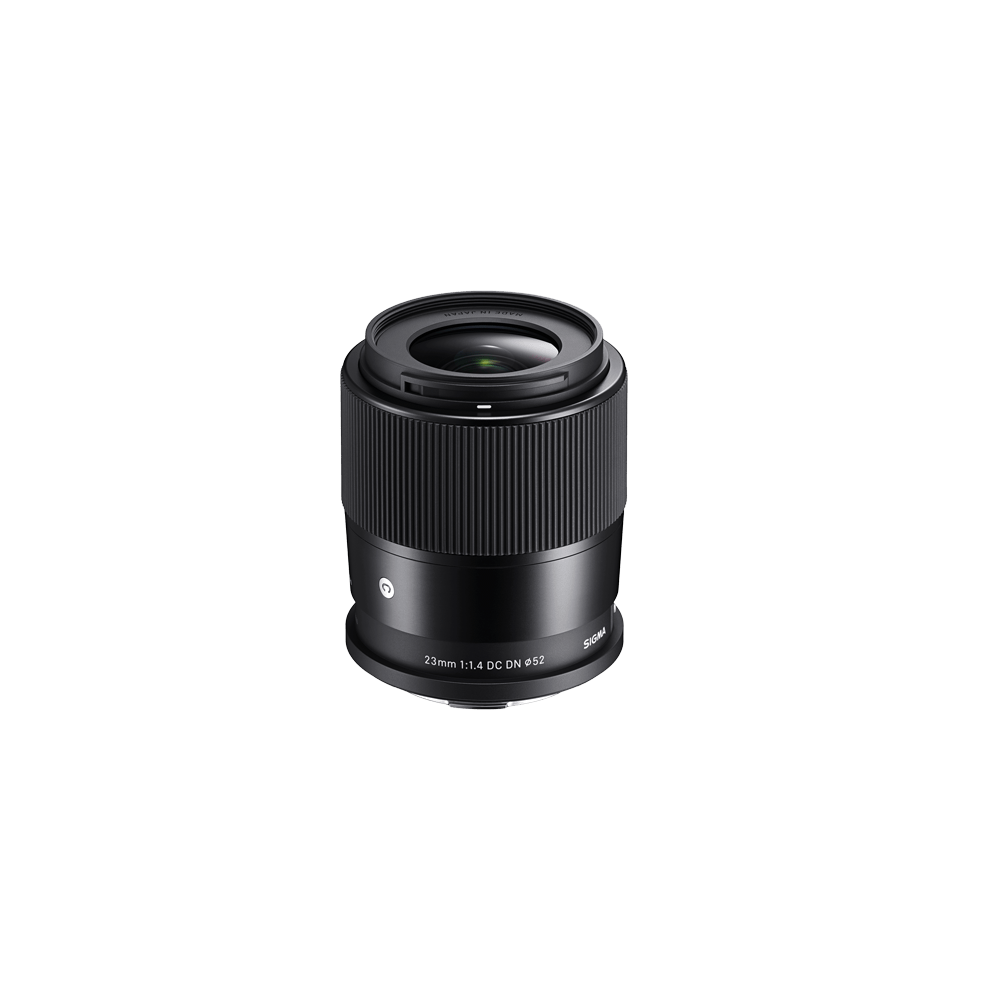

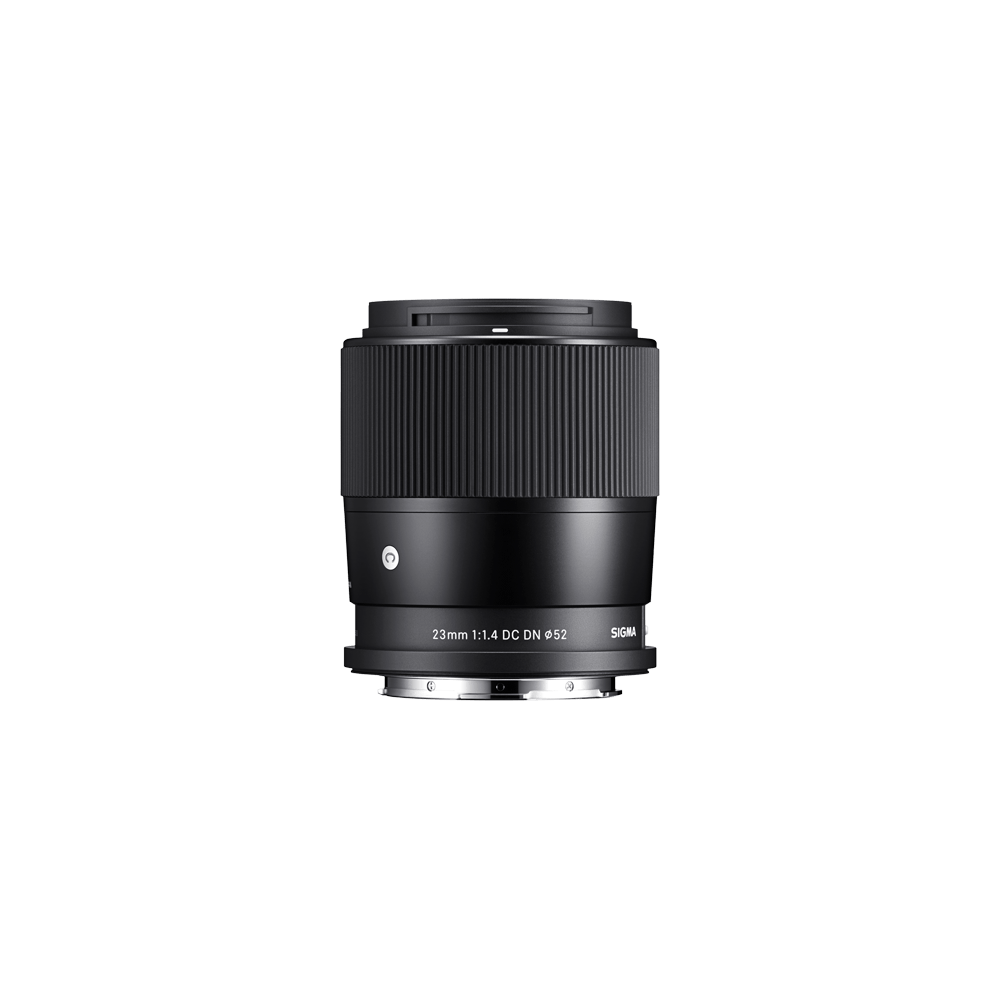

Contemporary
23mm F1.4 DC DN

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount, FUJIFILM X Mount, Canon RF Mount

• Sensor Format

  APS-C [DC]

• Lens Construction

  13 elements in 10 groups (3 SLD and 2 aspherical elements）

• Angle of View

  63.4°

• Number of Diaphragm Blades

  9 (rounded diaphragm)

• Minimum Aperture

  F16

• Minimum Focusing Distance

  25cm / 9.8in.

• Maximum Magnification Ratio

  1:7.3

• Filter Size

  φ52mm

• Dimensions (Diameter × Length)

  L-Mount：φ65.8mm × 76.9mm / φ2.6in. × 3.0in.

  Sony E-mount：φ65.8mm× 78.9mm / 2.6in. × 3.1in.

  FUJIFILM X Mount：φ65.8mm × 79.2mm / 2.6in. × 3.1in.

  Canon EF-M mount：φ69.0mm × 76.9mm / φ2.7in. × 3.0in.

  Canon RF Mount：φ69.0mm × 76.9mm / φ2.7in. × 3.0in.

  ＊The length of a lens is measured from the filter surface to its mount.

• Weight

  L-Mount：340g / 12.0oz.

  Sony E-mount：330g / 11.6oz.

  FUJIFILM X Mount：335g / 11.8oz.

  Canon EF-M mount：345g / 12.2oz.

  Canon RF Mount：345g / 12.2oz.

• Edition Number

  C023

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  Petal Type Lens Hood LH554-01
  FRONT CAP LCF-52 III
  REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-34869-4

  Sony E-mount：00-85126-34865-6

  FUJIFILM X Mount：00-85126-34875-5

  Canon EF-M mount：00-85126-34872-4

  Canon RF Mount：00-85126-34872-4

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * Sony E-mount is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * Canon RF Mount is developed, manufactured and sold under license from Canon Inc.

• Large aperture F1.4 brightness and excellent resolution from maximum aperture

  The Sigma 23mm F1.4 DC DN | Contemporary has an easy-to-use angle of view equivalent to 35mm in 35mm format, as well as the brightness of a large F1.4 aperture and high descriptive power. The optics is composed of 13 elements in 10 groups, including 3 SLD glass elements and 2 aspherical lens elements, to achieve sharp, clear images. The lens delivers excellent resolving power from the maximum aperture. Furthermore, the large F1.4 aperture allows for large, beautiful bokeh effects. The compact, palm-size body allows you to enjoy the rich descriptive power of mirrorless cameras. Careful countermeasures against flare and ghosting enable clear shooting even in backlit environments.

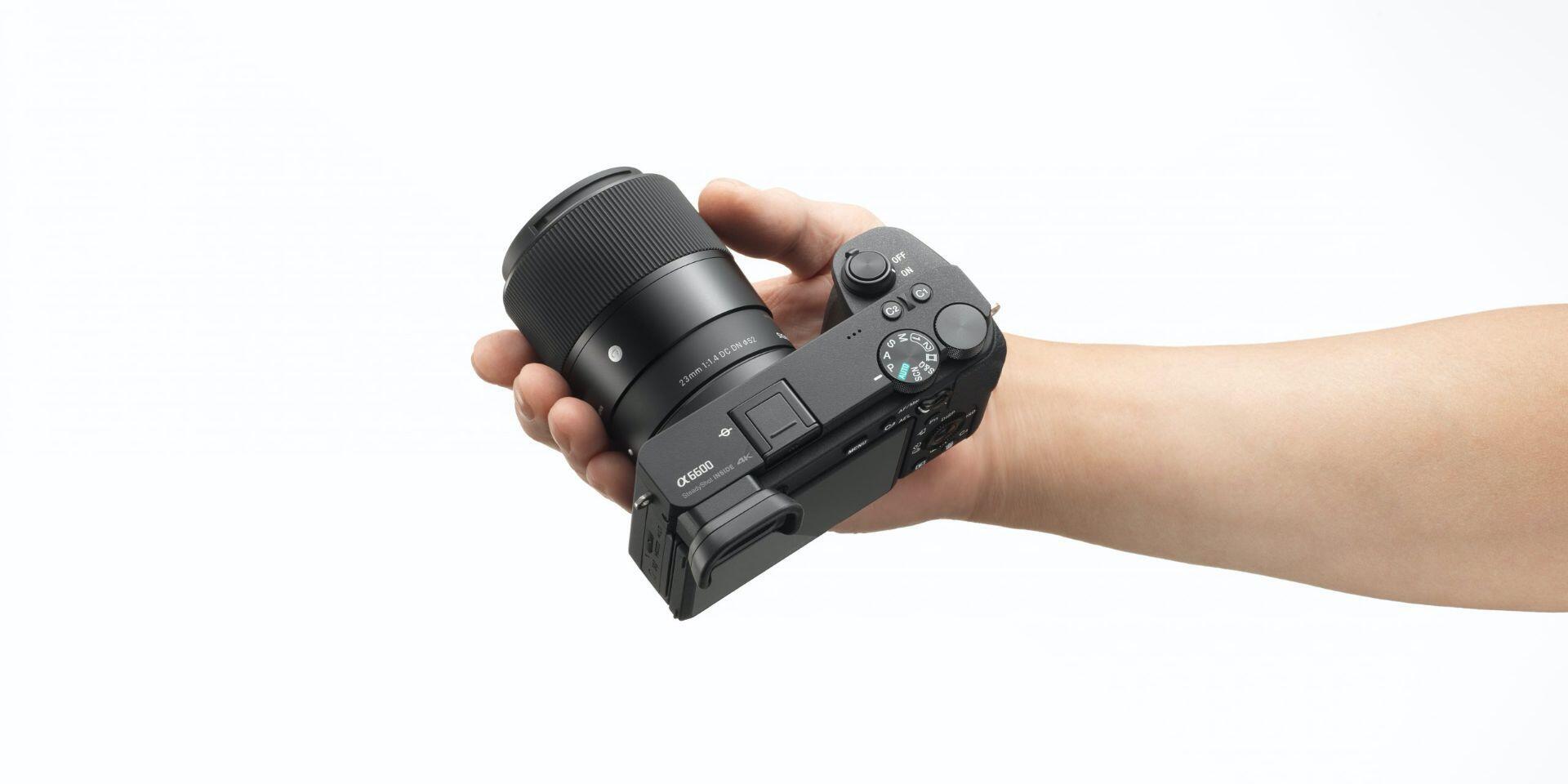

• Compact body optimized for APS-C mirrorless cameras

  To take advantage of the mobility of APS-C mirrorless cameras, the lens body is compact and lightweight, with a weight of 340g*, length of 76.9mm*, and filter diameter of 52mm. At the same time, the quality of the lens body itself has not been compromised. The high-precision machining technology of Sigma’s sole production facility in Aizu, Japan, has enabled the lens body to achieve the ideal balance between excellent optical performance based on the latest optical and mechanical design and compactness. The AF drive system uses a quiet, high-speed stepping motor. The latest algorithm enables quick focusing for easy shooting.

  *The figures are for L-Mount.



• Support for switching between linear and non-linear focus ring settings (for L-Mount only)

  For L-Mount cameras, it is possible to switch to “linear focus,” in which the focus shifts by a fixed amount according to the rotation angle of the focus ring.

  *Only for compatible L-Mount camera bodies.

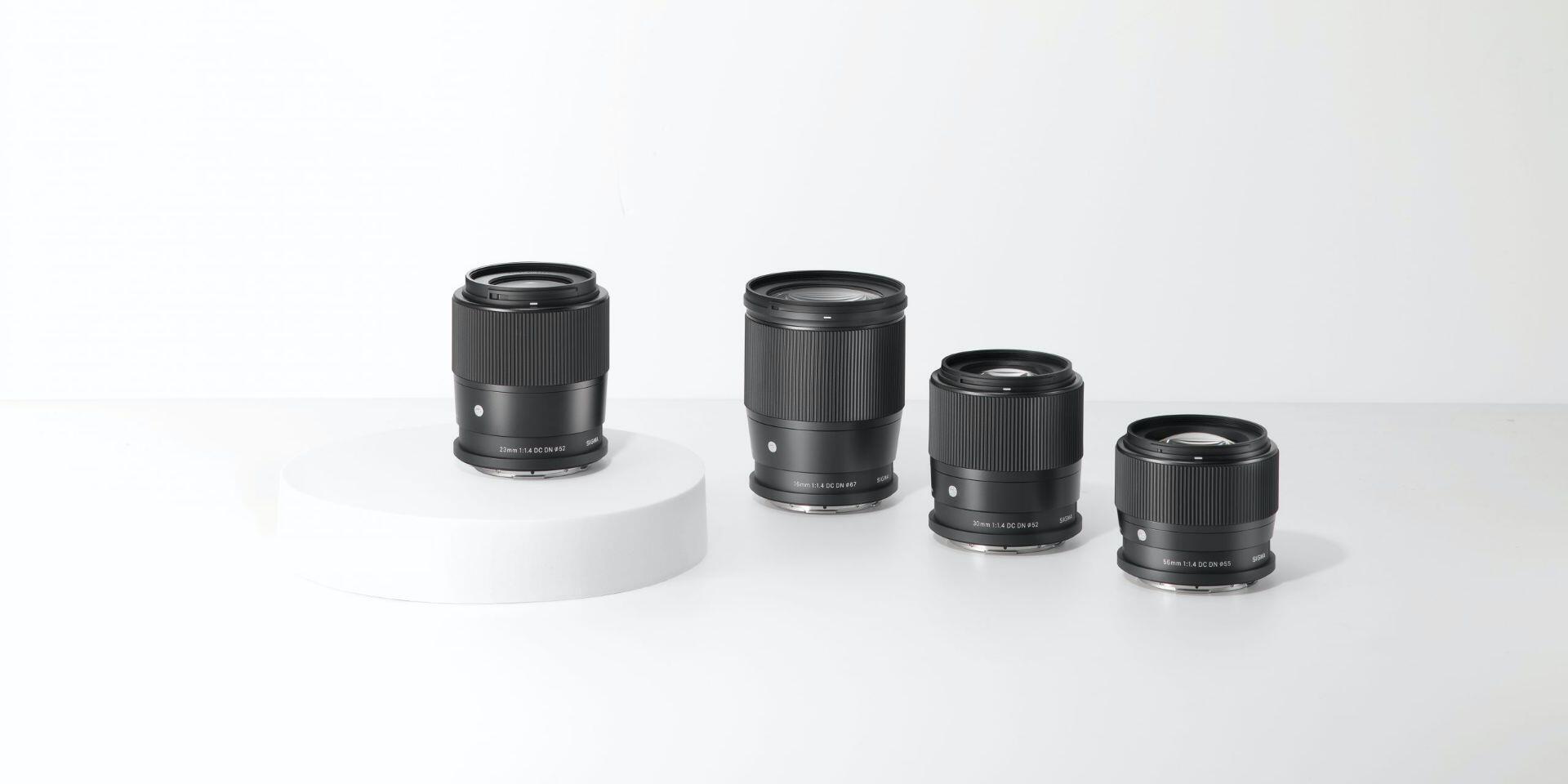

• Expands the variety of APS-C format F1.4 prime lenses

  The Sigma Contemporary line offers a wide variety of APS-C format F1.4 prime lenses. All of them share the concept of combining superior resolution with compactness and light weight. By combining them according to your needs, you can build a compact photographic system without compromising on image quality.

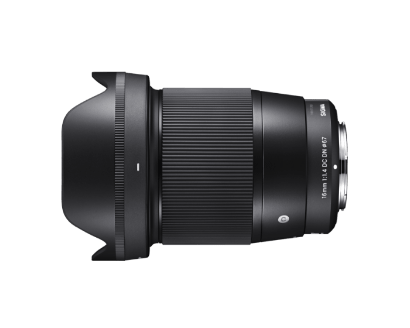

  16mm F1.4

  Lens Construction :
  16 elements in 13 groups

  Angle of View : 83.2°

  Number of Diaphragm Blades :
  9(Rounded diaphragm)

  Minimum Aperture : 16

  Minimum Focusing Distance :
  25cm(9.8in.)

  Maximum Magnification Ratio :
  1:9.9

  Filter size : Φ67mm

  Diameter : φ72.2mm(φ2.8in.)

  Length : 90.3mm(3.6in.)

  Weight : 415g(14.6oz.)



  23mm F1.4

  Lens Construction :
  13 elements in 10 groups

  Angle of View : 63.4°

  Number of Diaphragm Blades :
  9(Rounded diaphragm)

  Minimum Aperture : 16

  Minimum Focusing Distance :
  25cm(9.8in.)

  Maximum Magnification Ratio :
  1:7.3

  Filter size : Φ52mm

  Diameter : φ65.8mm(φ2.6in.)

  Length : 76.9mm(3.0in.)

  Weight : 340g(12.0oz.)

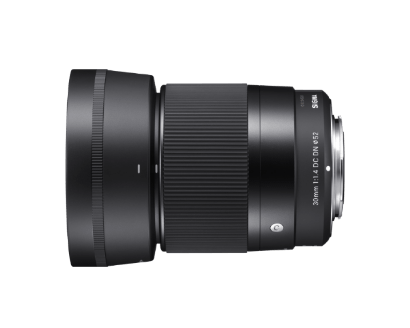

  30mm F1.4

  Lens Construction :
  9 elements in 7 groups

  Angle of View : 50.7°

  Number of Diaphragm Blades :
  9(Rounded diaphragm)

  Minimum Aperture : 16

  Minimum Focusing Distance :
  30cm(11.8in.)

  Maximum Magnification Ratio :
  1:7

  Filter size : Φ52mm

  Diameter : φ65.4mm(φ2.6in.)

  Length : 71.3mm(2.8in.)

  Weight : 280g(9.9oz.)

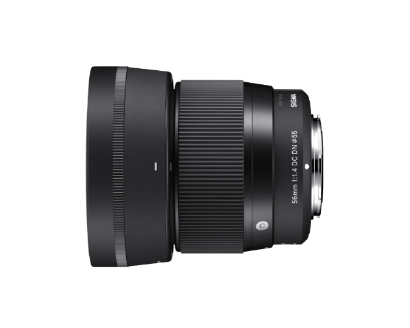

  56mm F1.4

  Lens Construction :
  10 elements in 6 groups

  Angle of View : 28.5°

  Number of Diaphragm Blades :
  9(Rounded diaphragm)

  Minimum Aperture : 16

  Minimum Focusing Distance :
  50cm(19.7in.)

  Maximum Magnification Ratio :
  1:7.4

  Filter size : Φ55mm

  Diameter : φ66.5mm(φ2.6in.)

  Length : 57.5mm(2.3in.)

  Weight : 285g(10.1oz.)

  *The figures are for L-Mount.

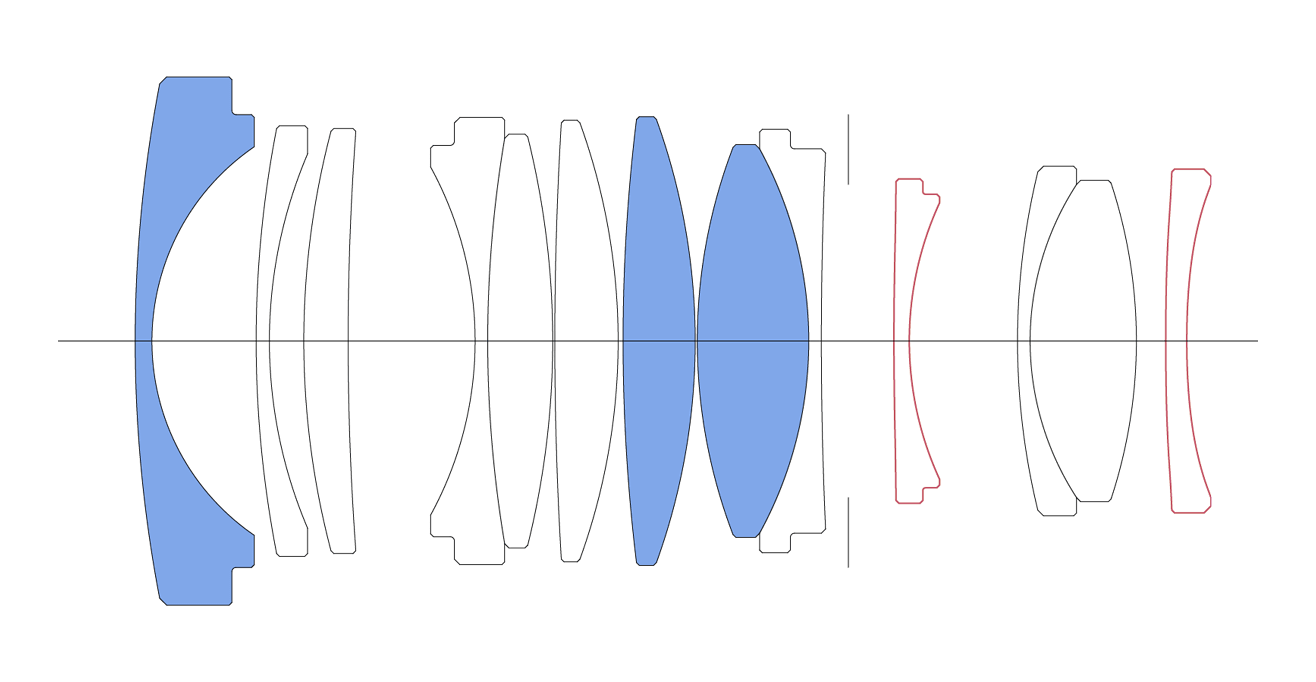

Lens construction

SLD glass

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Geometrical MTF

• Lens construction: 13 elements in 10 groups with 3 SLD and 2 aspherical lens elements

• Inner focus system

• Compatible with high-speed autofocus

• Compatible with lens-based optical correction

• Support DMF and AF+MF

• Compatible with AF assist (Sony E-mount only)

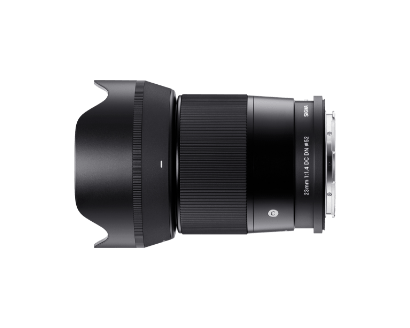

• Petal Type Lens Hood LH554-01

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• 9-blade rounded diaphragm

• High-precision, durable brass bayonet mount
