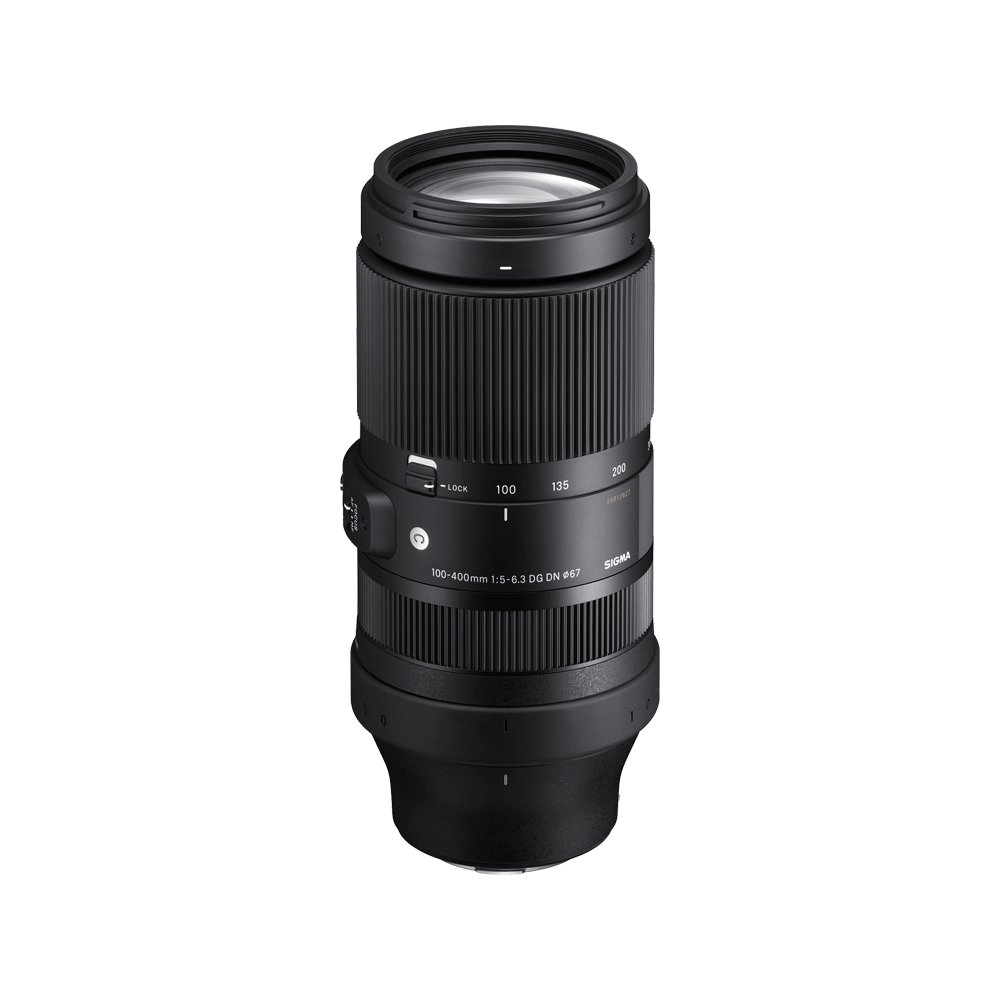

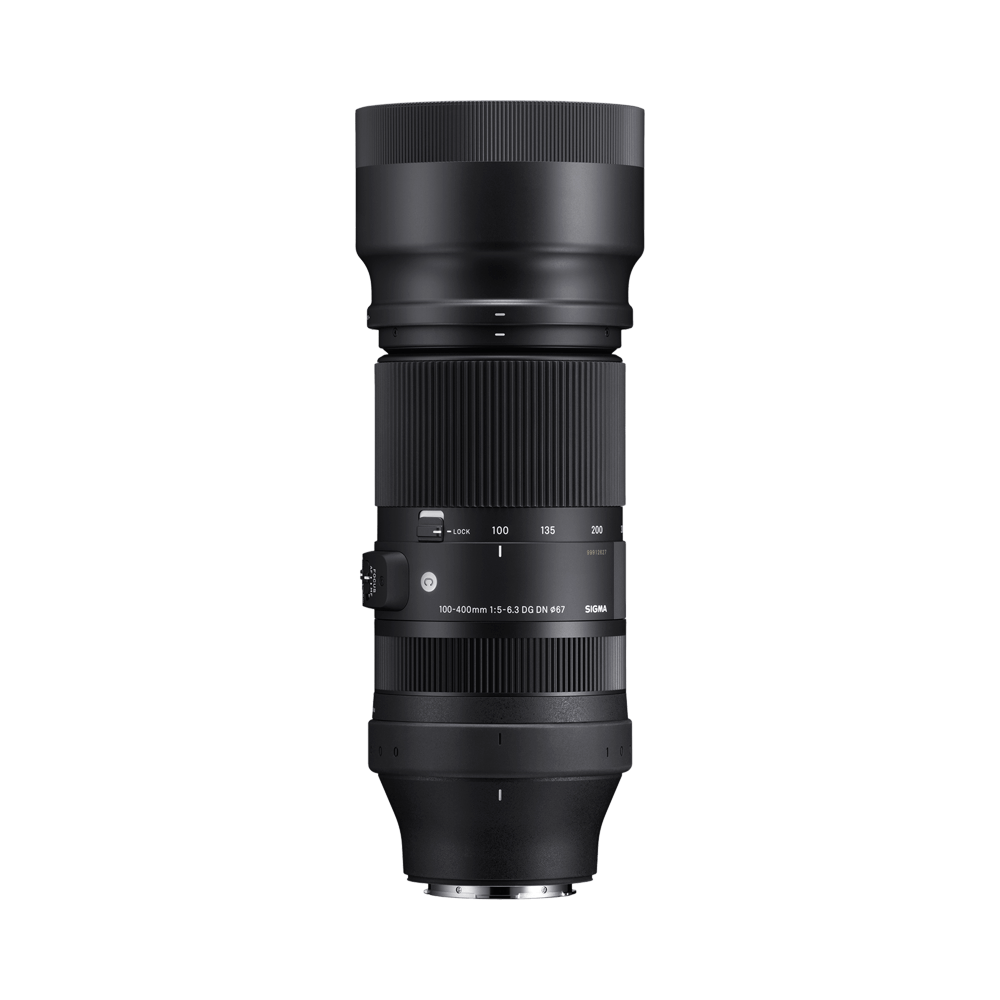

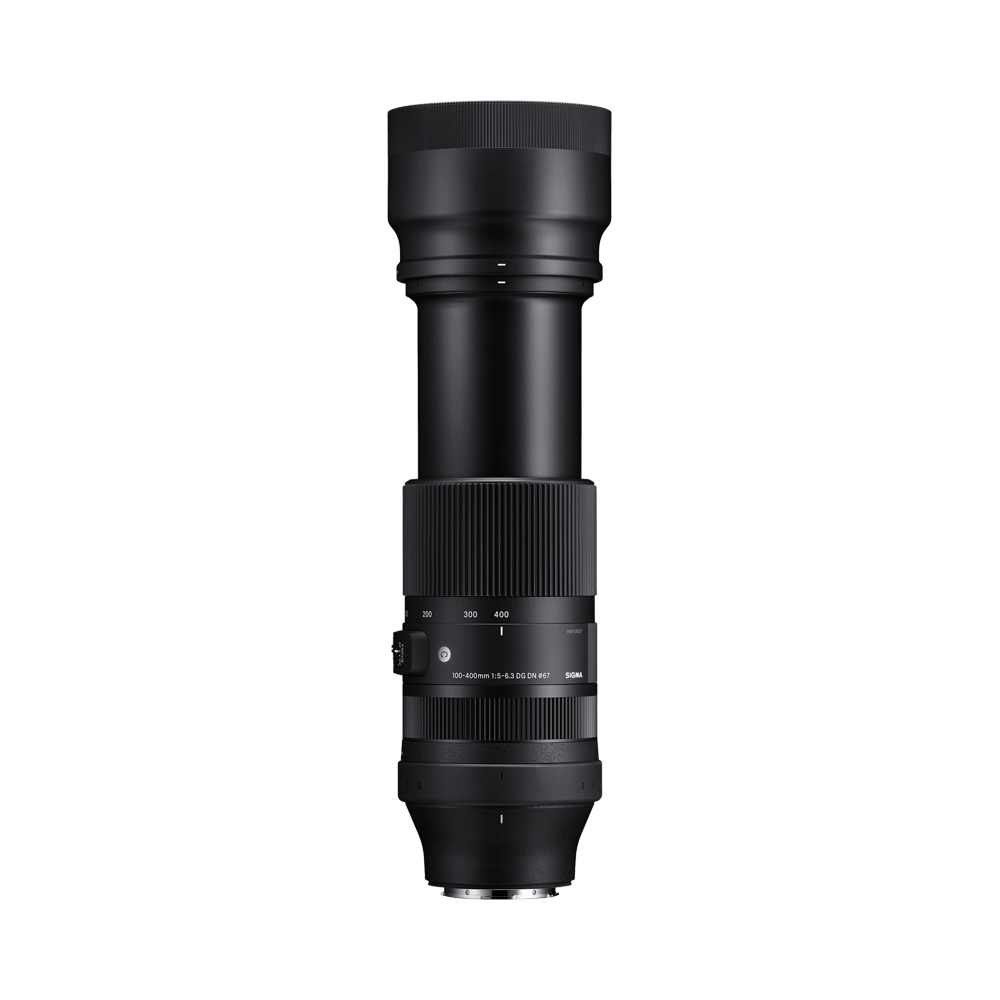

100-400mm F5-6.3 DG DN OS | Contemporary
100-400mm F5-6.3 DG DN OS | Contemporary
- Lens Construction
-
FLD glass
SLD glass
- MTF Chart
-
Diffraction MTF
Geometrical MTF
Diffraction MTF（+TC-1411）
Geometrical MTF（+TC-1411）
Diffraction MTF（+TC-2011）
Geometrical MTF（+TC-2011）
Diffraction MTF（FUJIFILM X Mount）
Geometrical MTF（FUJIFILM X Mount）
| Spatial frequency | S:Sagittal Line | M:Meridional Line |
|---|---|---|
| 10lp/mm |
|
|
| 30lp/mm |
|
|
The MTF chart gives the result at the wide-open aperture
Specifications
- Lens Construction
-
22elements in 16 groups
- Angle of View
-
Full-frame：24.4°(W)-6.2°(T)
APS-C：16.2°(W)-4.1°(T)
- Number of Diaphragm Blades
-
9 (Rounded diaphragm)
- Minimum Aperture
-
F22 - 29
- Minimum Focusing Distance
-
112(W) - 160(T)cm
- Maximum Magnification Ratio
-
1:4.1(400mm)
- Filter Size
-
φ67mm
- Dimensions (Diameter × Length)
-
L-Mount：φ86.0mm x 197.2mm / φ3.4in. x 7.8in.
Sony E-mount：φ86.0mm x 199.2mm / φ3.4in. x 7.8in.
FUJIFILM X Mount：φ86.0mm × 199.5mm / φ3.4in. × 7.9in.
*The length of a lens is measured from the filter surface to its mount.
- Weight
-
L-Mount：1,135g / 40.0oz. (PROTECTIVE COVER PT-31 included)
Sony E-mount：1,140g / 40.2oz. (PROTECTIVE COVER PT-31 included)
FUJIFILM X Mount：1,135g / 40.0oz. (PROTECTIVE COVER PT-31 included)
- Edition Number
-
C020
About Edition Number
- Supplied Accessories
-
・LENS HOOD LH770-05
・PROTECTIVE COVER PT-31
・FRONT CAP LCF-67mm III
・REAR CAP LCR II
- Mount / Product Barcode
-
L-Mount：00-85126-75069-5
Sony E-mount：00-85126-75065-7
FUJIFILM X Mount：00-85126-75075-6
Technology
* L-Mount is a registered trademark of Leica Camera AG.
* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
