Contemporary
100-400mm F5-6.3 DG DN OS

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount, FUJIFILM X Mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  22elements in 16 groups

• Angle of View

  Full-frame：24.4°(W)-6.2°(T)
  APS-C：16.2°(W)-4.1°(T)

• Number of Diaphragm Blades

  9 (Rounded diaphragm)

• Minimum Aperture

  F22 - 29

• Minimum Focusing Distance

  112(W) - 160(T)cm

• Maximum Magnification Ratio

  1:4.1(400mm)

• Filter Size

  φ67mm

• Dimensions (Diameter × Length)

  L-Mount：φ86.0mm x 197.2mm / φ3.4in. x 7.8in.

  Sony E-mount：φ86.0mm x 199.2mm / φ3.4in. x 7.8in.

  FUJIFILM X Mount：φ86.0mm × 199.5mm / φ3.4in. × 7.9in.

  *The length of a lens is measured from the filter surface to its mount.

• Weight

  L-Mount：1,135g / 40.0oz. (PROTECTIVE COVER PT-31 included)

  Sony E-mount：1,140g / 40.2oz. (PROTECTIVE COVER PT-31 included)

  FUJIFILM X Mount：1,135g / 40.0oz. (PROTECTIVE COVER PT-31 included)

• Edition Number

  C020

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・LENS HOOD LH770-05
  ・PROTECTIVE COVER PT-31
  ・FRONT CAP LCF-67mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-75069-5

  Sony E-mount：00-85126-75065-7

  FUJIFILM X Mount：00-85126-75075-6

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

• Sigma’s 5th DG DN lens with an exclusive new design

  for full-frame mirrorless cameras

  With the optics design specifically for a camera with a short flange back distance, the DG DN series of lenses achieves a supreme combination of optical performance and compactness that could not have been possible with lenses for single-lens reflex cameras. Thanks to the stepping motor system that is optimized for both phase detection AF and contrast AF, the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary makes shooting with the video or eye-tracking AF very smooth.
  Sigma’s 5th DG DN lens is a long-awaited ultra-telephoto zoom lens. This lens will expand the possibilities of mirrorless camera photography even further.

  Product names: Abbreviations DG and DN indicate that the lens is suitable for full-frame cameras and is designed exclusively for mirrorless (short flange back distance) cameras, respectively.

• Lenses designed exclusively for full-size mirrorless cameras released in the past



  Contemporary
  45mm F2.8 DG DN



  Art

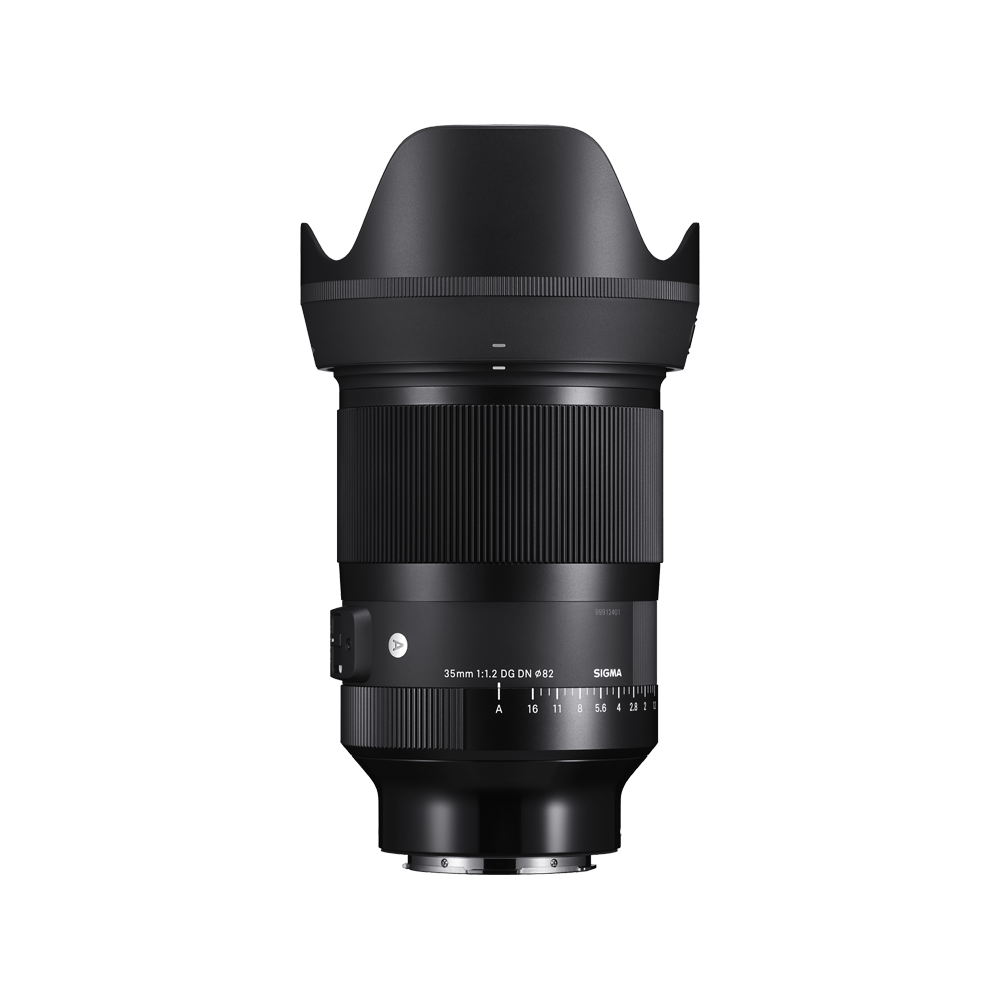

  35mm F1.2 DG DN



  Art
  14-24mm F2.8 DG DN

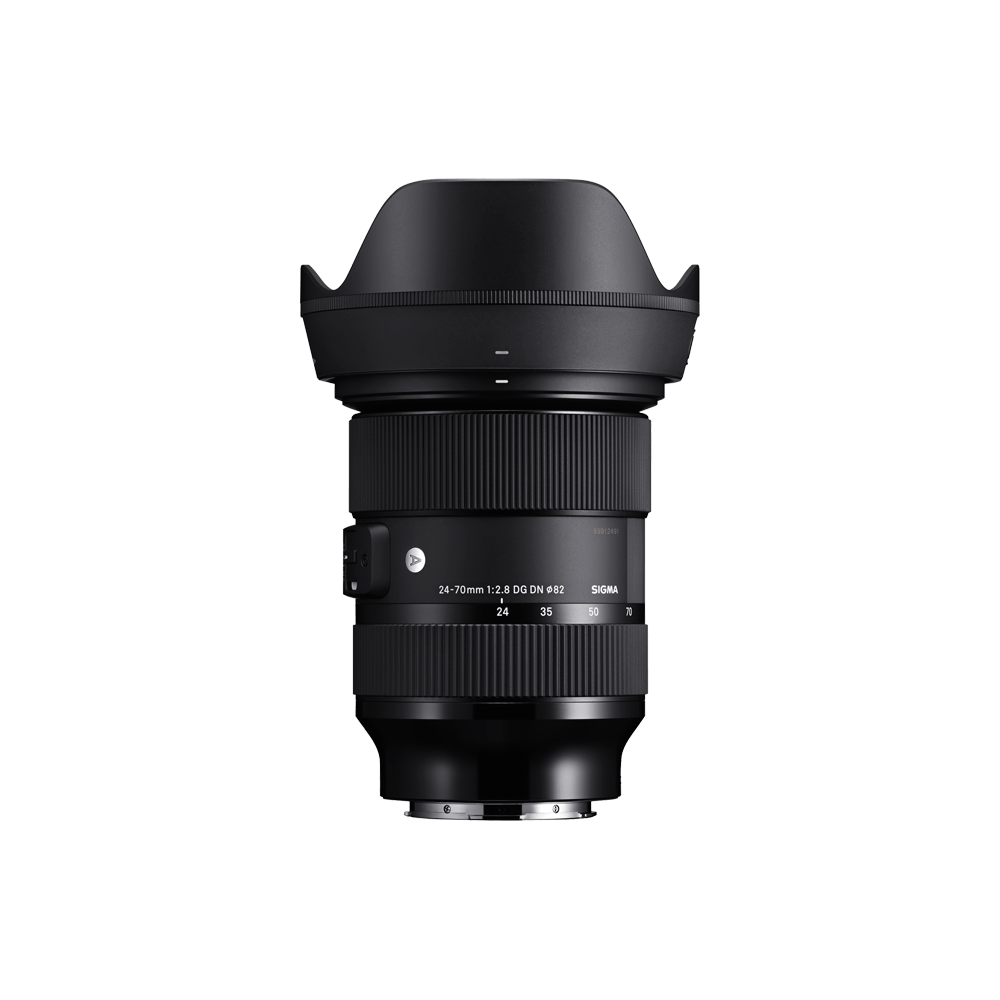

  Art
  24-70mm F2.8 DG DN

• Entirely new design



  FLD glass

  SLD glass

  100-400mm F5-6.3 DG DN OS | Contemporary



  100-400mm F5-6.3 DG OS HSM | Contemporary

• Construction / specifications

  LINK

• Uncompromising image quality

  The lens construction of the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary comprises 16 groups and 22 elements, with one FLD and four SLDs used for the effective correction of aberrations and distortions. Built on the latest optical design technology and optimized for mirrorless systems, the new lens ensures the same high-resolution image quality all the way to the edges. In addition, it constantly achieves high levels of optical performance and makes the most of its capabilities as a zoom lens in any condition, at every focal length from wide to telephoto, and from close-up shots to telephoto photography.

  MTF chart

  Furthermore, when paired with Sigma TELE CONVERTER TC-1411/TC-2011 (sold separately / for L-Mount only), which was newly and exclusively developed for the use with mirrorless cameras, the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary gives photographers a “super telephoto” angle of view with a focal length of up to 800mm while they enjoy the benefit of the compact system. Plus, AF is effective even with the teleconverter attached.

  SIGMA TELE CONVERTER TC-1411 / TC-2011

• A full range of functionalities that enables smooth and easy ultra-telephoto shooting

  In addition to a high-speed and smooth AF enabled by the stepping motor optimized to the latest algorithm, the Sigma 100-400mm F5-6.3 DG DN OS | Contemporary incorporates powerful image stabilization (OS) of four steps* built into the lens. When combined with a camera body with image stabilization built in, the lens corrects for pitch and yaw axis rotations, providing even more powerful image stabilization.

  * Based on CIPA guidelines (Measured in 400mm with a 35mm full-size image sensor)

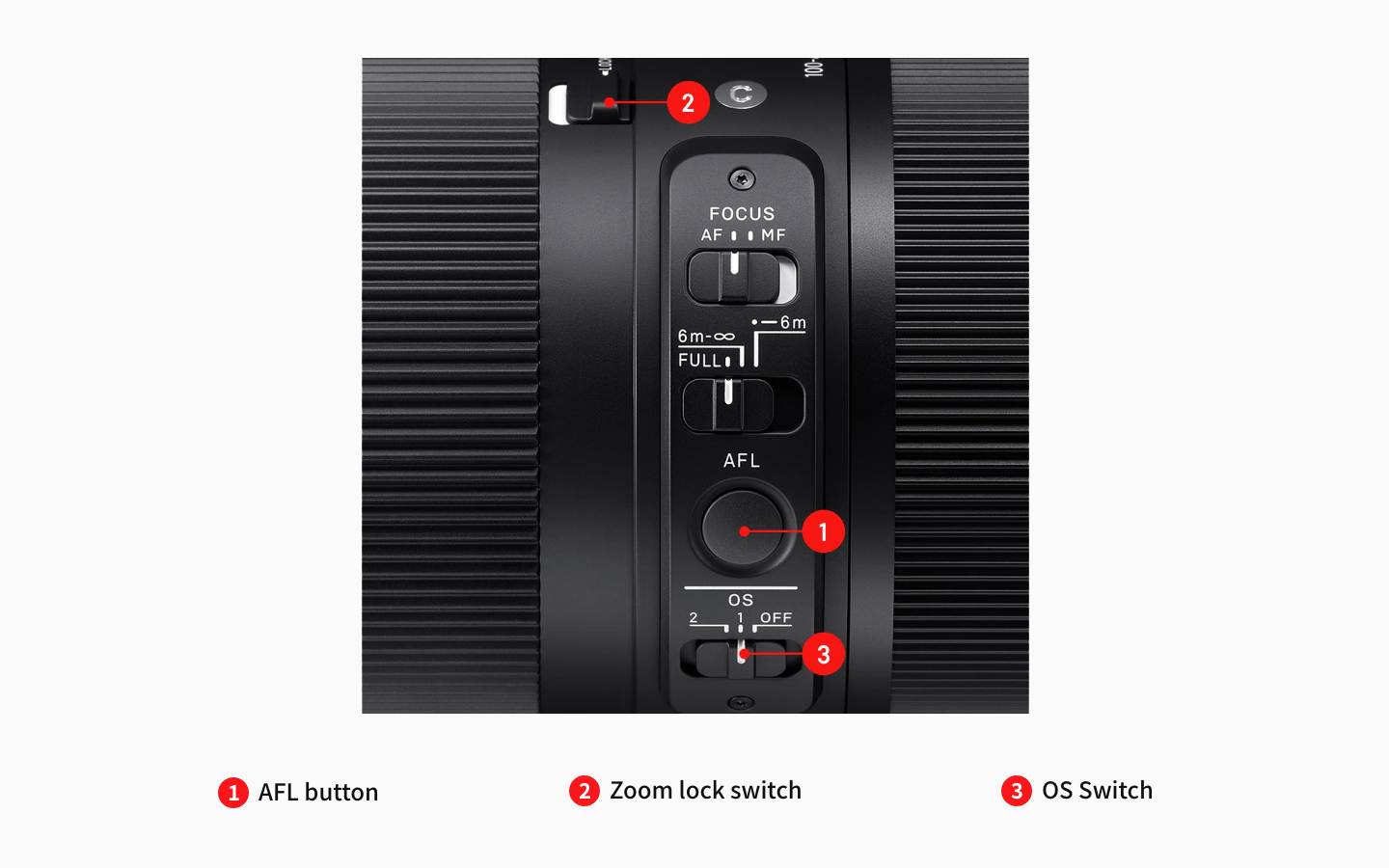

  It also features the 1 AFL button to which the user may assign select functions on the camera side, and the focus limiter switch that allows optimizing the AF range according to the purpose of shooting, 2 Zoom lock switch that fixes the zoom ring at thewidest end, preventing it from rotating and causing the lens barrel to extendunder its own weight during transportation, 3 OS Switch which the user may switch between Mode 1 for general photography and Mode 2 for motor sports and other applications requiring panning.

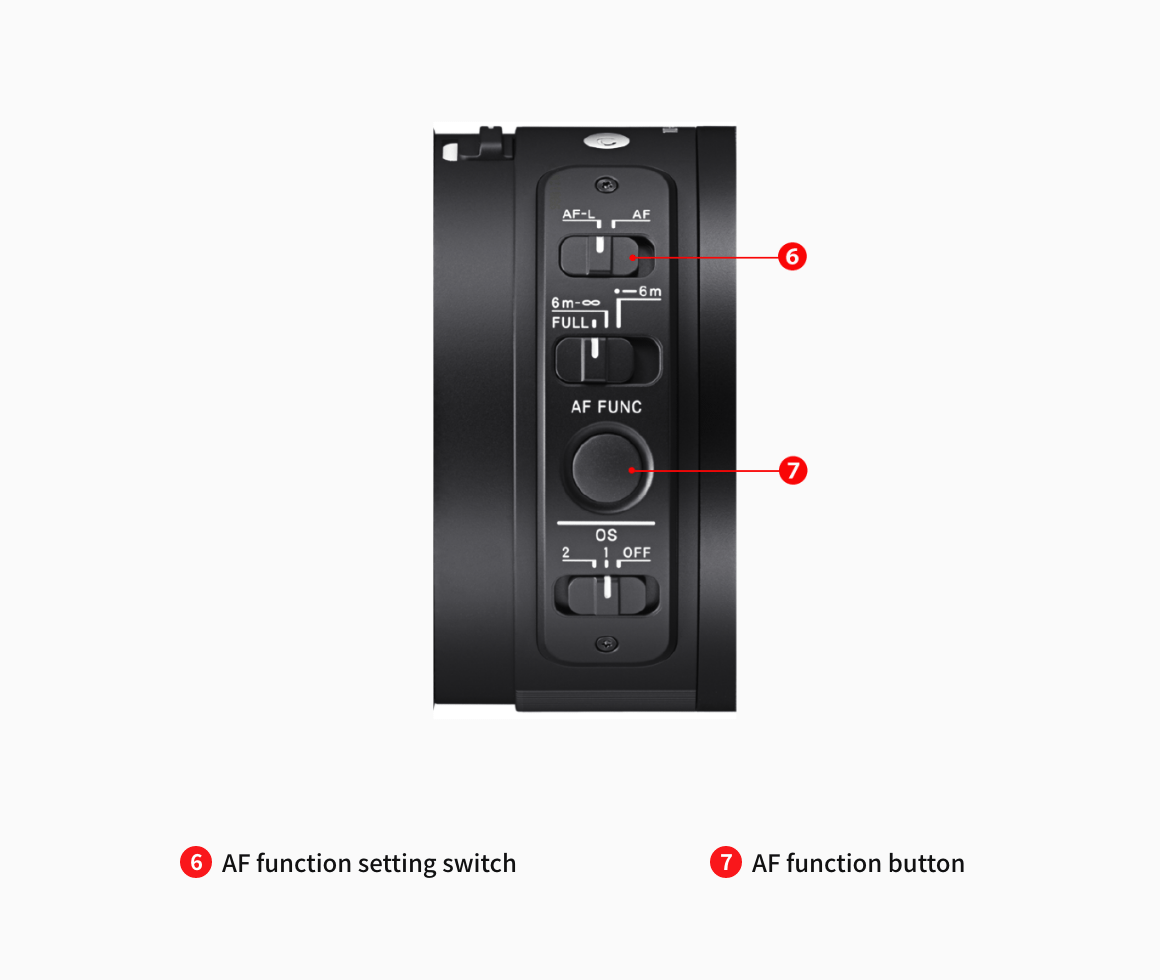

• Switches optimized for X Mount

  The switches have also been optimized for X Mount. The “AF Function Setting Switch” allows the user to select a function while the AF Function Button is pressed on the lens side.



  L-Mount / Sony E-mount



  FUJIFILM X Mount

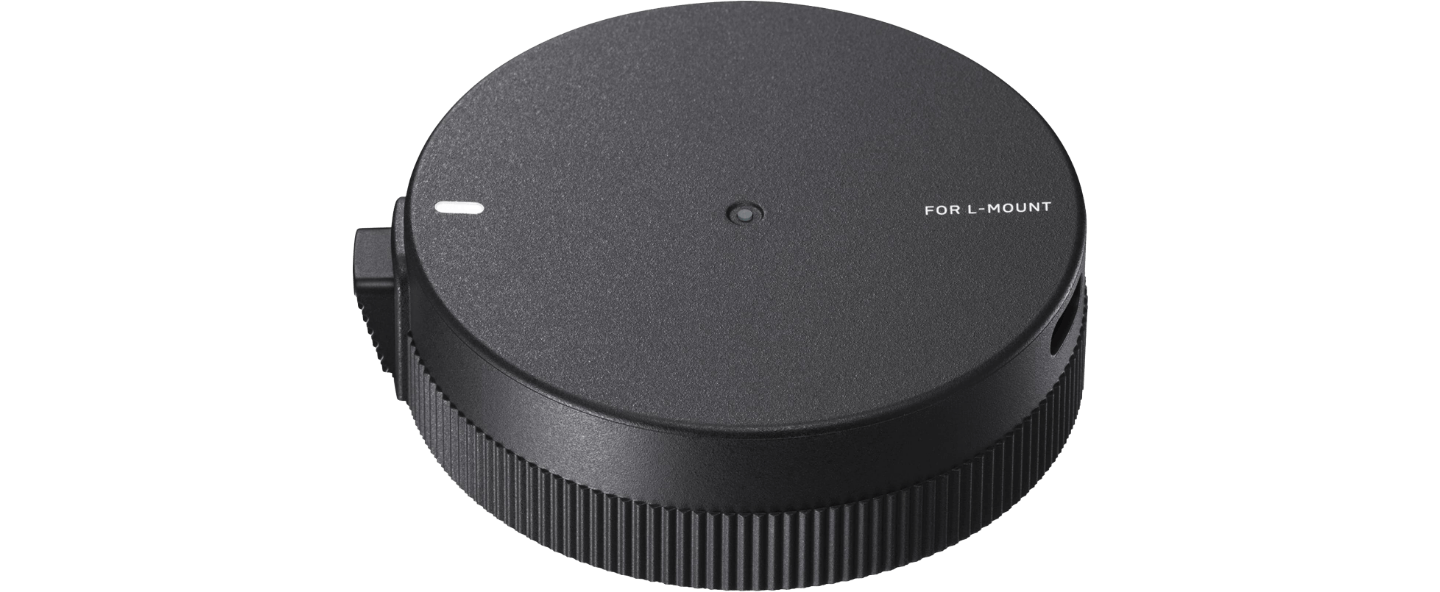

• SIGMA USB DOCK UD-11

  By connecting the lens to Sigma USB DOCK (sold separately / for L-Mount only), which was newly developed exclusively for the use with mirrorless cameras, users can adjust the amount of focus movement when operating the focus ring on exclusive Sigma Optimization Pro software, which allows users to adjust focus in their preferred timing in MF mode.

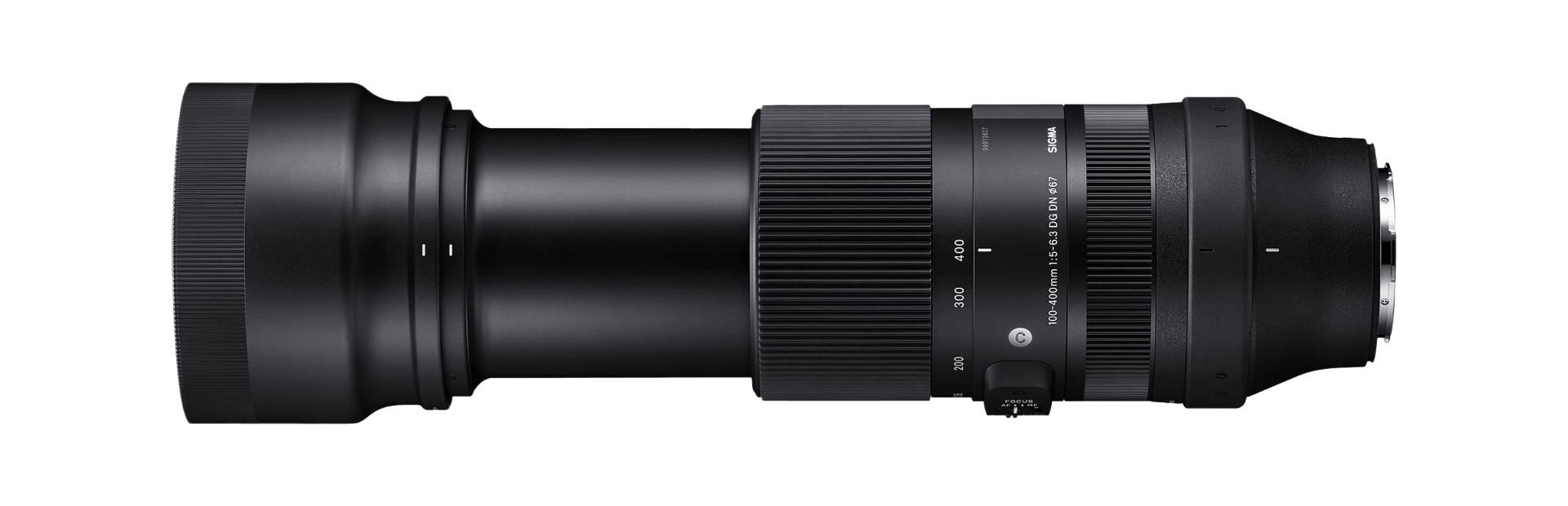

• Dual action zoom

  The Sigma 100-400mm F5-6.3 DG DN OS | Contemporary supports straight zoom, which allows photographers to zoom in and out by adjusting the hood, enabling intuitive and quick view angle adjustments. It features a “Dual action zoom” which supports both straight zoom and ring zoom.

• Lightweight & Compact lens body

  Sigma designed a light and durable ultra-telephoto zoom lens addition to its Contemporary line.
  The Sigma 100-400mm F5-6.3 DG DN OS | Contemporary packs functionalities required for angles of view corresponding to focal lengths of 100-400mm in a compact, lightweight body. It is not merely about weight reduction, but the lens is durable, with careful selections to utilize the right materials in the right place. For instance, magnesium alloy is used for the part where a tripod socket is attached, which needs to be very strong.

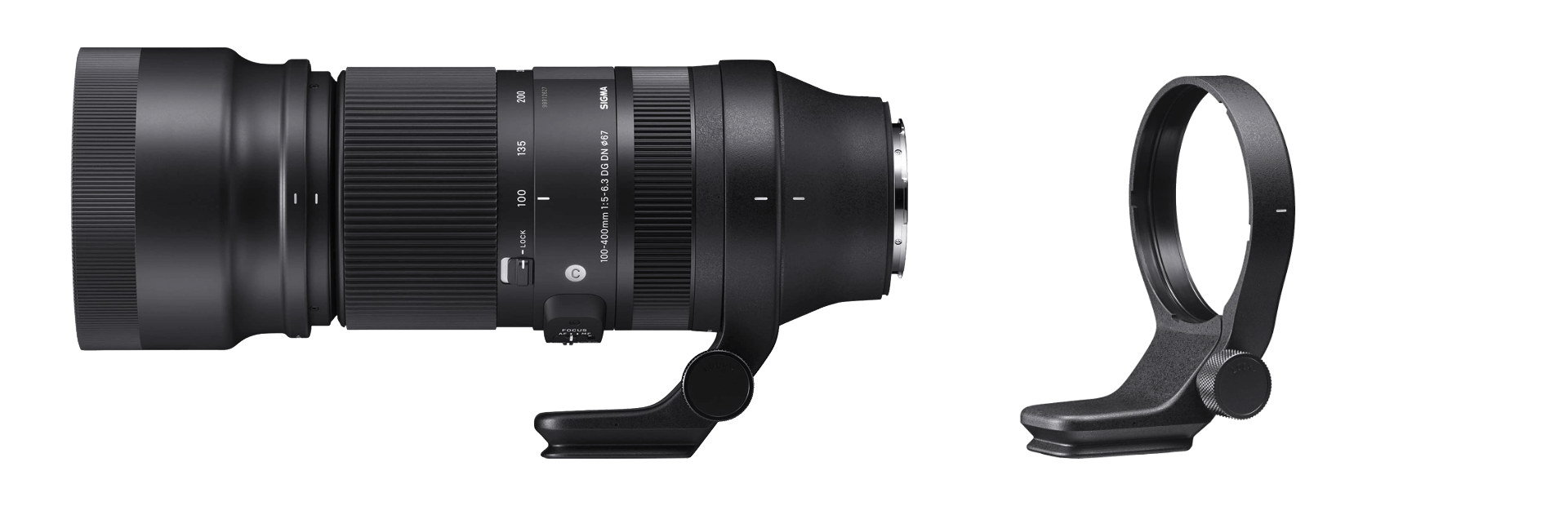

  To allow for a paring with camera bodies of different sizes, a tripod socket (sold separately) is available. As this helps reduce any strain on the camera body, photographers can shoot long hours without worrying about it. The tripod socket comes with a strap which also helps reduce strain on the mount when carrying the lens around or during transportation.

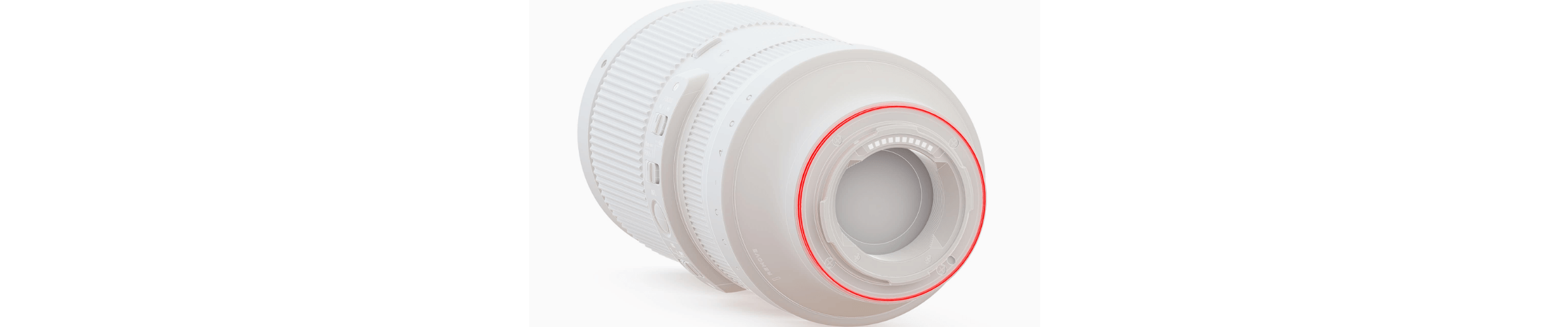

• Mount with Dust and Splash Resistant Structure

  The mount features a special sealing to make the lens an excellent choice in a wide variety of conditions.



• Rounded diaphragm

  The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

• Designed to minimize flare and ghosting

  From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

• High-precision, rugged brass bayonet mount

  The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

• Compatible with Lens Aberration Correction

  Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

  Note:
  *Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
  *On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).

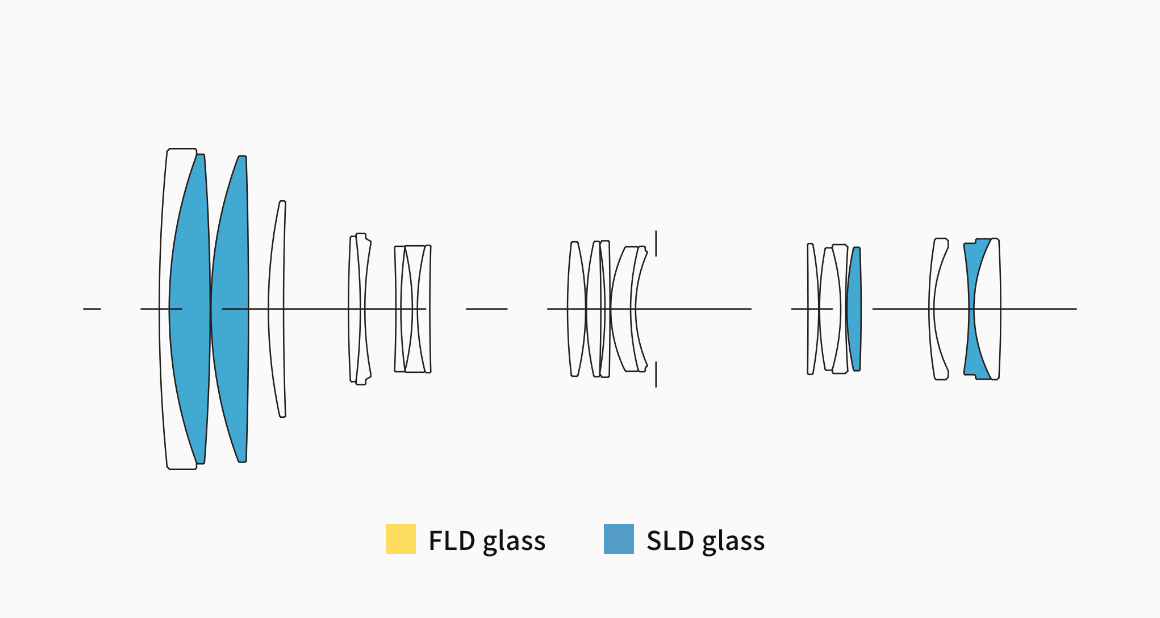

Lens construction

FLD glass

SLD glass

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Diffraction MTF

Geometrical MTF

Geometrical MTF

Diffraction MTF（+TC-1411）

Diffraction MTF（+TC-1411）

Geometrical MTF（+TC-1411）

Geometrical MTF（+TC-1411）

Diffraction MTF（+TC-2011）

Diffraction MTF（+TC-2011）

Geometrical MTF（+TC-2011）

Geometrical MTF（+TC-2011）

Diffraction MTF（FUJIFILM X Mount）

Diffraction MTF（FUJIFILM X Mount）

Geometrical MTF（FUJIFILM X Mount）

Geometrical MTF（FUJIFILM X Mount）
