Contemporary
56mm F1.4 DC DN
Available mounts
- L-Mount
- Sony E-mount
- FUJIFILM X Mount
- Micro Four Thirds mount
- Canon EF-M mount
- Nikon Z mount
- Canon RF Mount
-
Camera Type
Mirrorless
-
Corresponding Mount
L-Mount, Sony E-mount, FUJIFILM X Mount, Micro Four Thirds mount, Canon EF-M mount, Nikon Z mount, Canon RF Mount
-
Sensor Format
APS-C [DC]
-
Lens Construction
10 elements in 6 groups
-
Angle of View
L-Mount：28.5°
Sony E-mount：28.5°
FUJIFILM X Mount：28.5°
Micro Four Thirds mount：21.9°
Nikon Z mount：28.5°
Canon EF-M mount：26.9°
Canon RF Mount：26.9°
-
Number of Diaphragm Blades
9(Rounded diaphragm)
-
Minimum Aperture
F16
-
Minimum Focusing Distance
50cm / 19.7in.
-
Maximum Magnification Ratio
1:7.4
-
Filter Size
φ55mm
-
Dimensions (Diameter × Length)
L-Mount：φ66.5mm × 57.5mm / φ2.6in. × 2.3in.
Sony E-mount：φ66.5mm × 59.5mm / φ2.6in. × 2.3in.
FUJIFILM X Mount：φ66.5mm × 59.8mm / φ2.6in. × 2.4in.
Micro Four Thirds mount：φ66.5mm × 58.1mm / φ2.6in. × 2.3in.
Nikon Z mount：φ70.0mm × 61.5mm / φ2.8in. × 2.4in.
Canon EF-M mount：φ66.5mm × 59.5mm / φ2.6in. × 2.3in.
Canon RF Mount：φ69.0mm × 57.5mm / φ2.7in. × 2.3in.
-
Weight
L-Mount：285g / 10.1oz.
Sony E-mount：280g /9.9oz.
FUJIFILM X Mount：280g / 9.9oz.
Micro Four Thirds mount：256g /9.0oz.
Nikon Z mount：295g /10.4oz.
Canon EF-M mount：280g / 9.9oz.
Canon RF Mount：290g / 10.2oz.
-
Edition Number
C018
The three-digit code on the surface of the lens is to indicate the year the lens was first released.
(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.) -
Supplied Accessories
・LENS HOOD LH582-01
・FRONT CAP LCF-55mm III
・REAR CAP LCR II -
Mount / Product Barcode
L-Mount：00-85126-35169-4
Sony E-mount：00-85126-35165-6
FUJIFILM X Mount：00-85126-35175-5
Micro Four Thirds mount：00-85126-35163-2
Nikon Z mount：00-85126-35173-1
Canon EF-M mount：00-85126-35171-7
Canon RF Mount：00-85126-35172-4
-
Camera Compatibility
LINK
-
* L-Mount is a registered trademark of Leica Camera AG.
* Sony E-mount is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
* Nikon Z mount is developed, manufactured and sold under the license agreement with Nikon Corporation.
* Canon RF Mount is developed, manufactured and sold under license from Canon Inc.
* Canon EF-M mount does not feature mount with dust and splash resistant structure.
-
A member of the high-performance Contemporary line, featuring Sigma’s latest technologies
Smooth AF ideal for video shooting
The combination of optical design for video AF and use of the stepping motor enables smooth and quiet autofocus. This lens is also compatible with the Sony E-mount Fast Hybrid AF, achieving precise AF tracking. By using the face recognition or eye AF functions of cameras, focus will continuously be on the face or the eye even if the subject moves during the shoot.
-

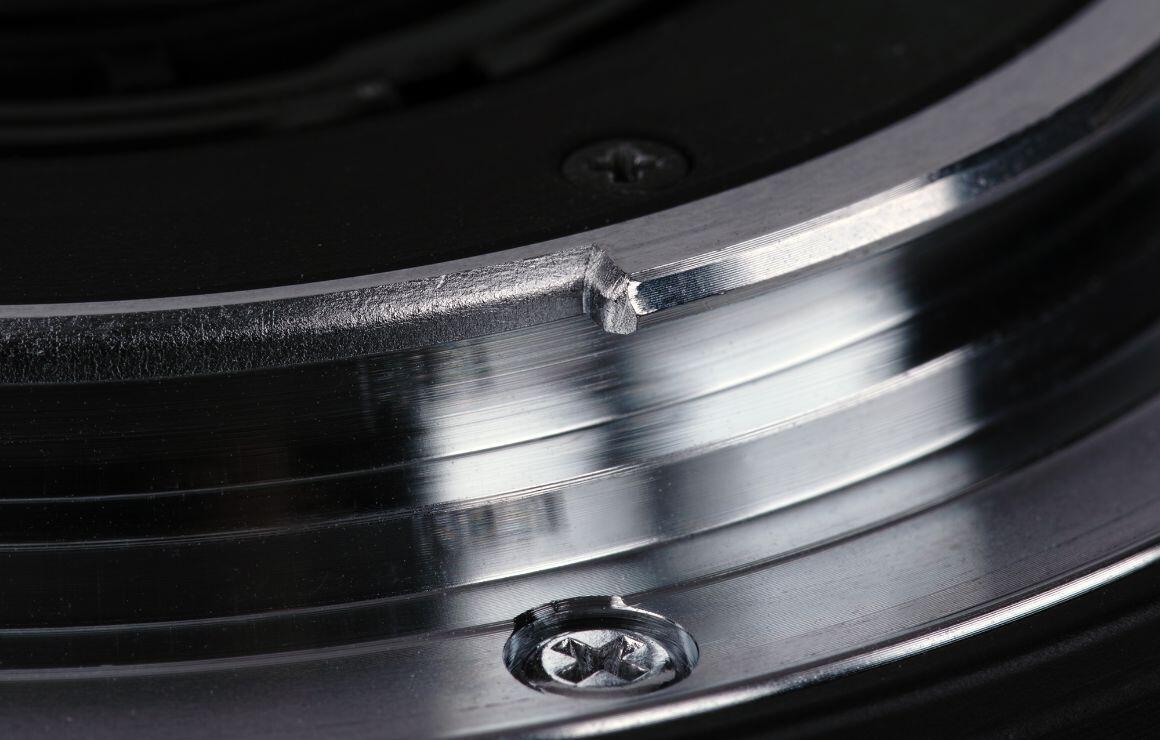

High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
-

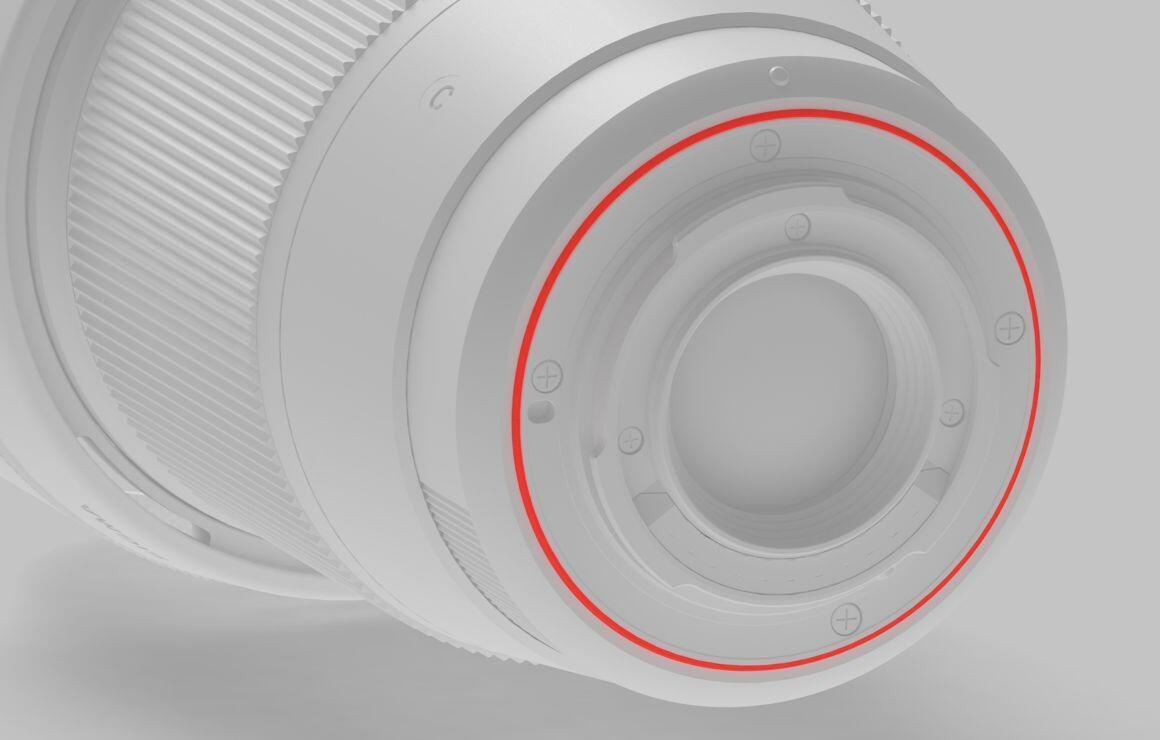

Mount with Dust and Splash Resistant Structure
The mount features a special sealing* to make the lens an excellent choice in a wide variety of conditions.
* Except for Canon EF-M mount
-

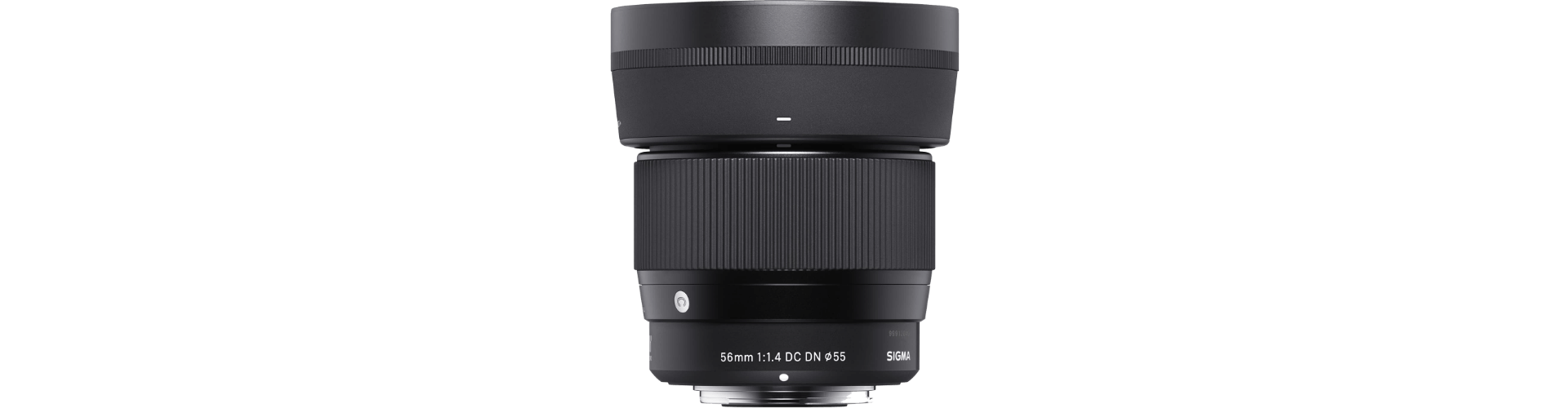

Impressively compact construction with image quality rivaling Sigma's Art line.
To achieve such a compact construction, lens design is considered based on the capabilities of the camera body function to correct* peripheral light amount and distortion. Moreover, axial color aberration, which is difficult to eliminate by image processing, is efficiently corrected by incorporating an SLD glass element. A compactness and lightweight construction combined with superb image quality is achieved.
* Limited to what the camera supports.
EOS-M series cameras incompatible with aberration correction
Cameras incompatible with distortion correction
EOS M5, EOS M6, EOS M100, EOS M10, EOS M3, EOS M2, EOS M
-
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.
-
The only three F1.4 AF lens system for APS-C Sony E-mount mirrorless cameras
The lens benefits from an open aperture of F1.4 to achieve sufficient amount of bokeh and admirable brightness even with APS-C size cameras which tend to have smaller bokeh effects compared to 35mm full size systems. Its compact and lightweight body is perfect for daily use, capable of capturing various scenes ranging from portraits to snapshots, as well as night view.
-
Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
-
Sigma DC DN SERIES
Over the years, Sigma has built an extensive lineup of bright prime lenses ranging from wide-angle to telephoto. Now, for mirrorless cameras, Sigma is developing a range of interchangeable lenses that feature a lightweight, compact package for convenient daily shooting while delivering superior performance and covering the key focal lengths.
Developed to feature a lightweight, compact package for everyday use, Sigma DN lenses for mirrorless cameras deliver superior performance covering the key focal lengths. The new lens builds on the success of the 30mm F1.4 DC DN | Contemporary, which Sigma released in 2016 as the first in a new series of prime lenses for mirrorless cameras. The 16mm F1.4 DC DN | Contemporary also combines F1.4 brightness with top-level optical performance.
The first in this Sigma series of prime lenses for mirrorless cameras was the standard prime 30mm F1.4 DC DN | Contemporary, then the wide-angle prime 16mm F1.4 DC DN | Contemporary, and now followed by the telephoto 56mm F1.4 DC DN | Contemporary, Sigma has made a new and complete system for mirrorless camera users.

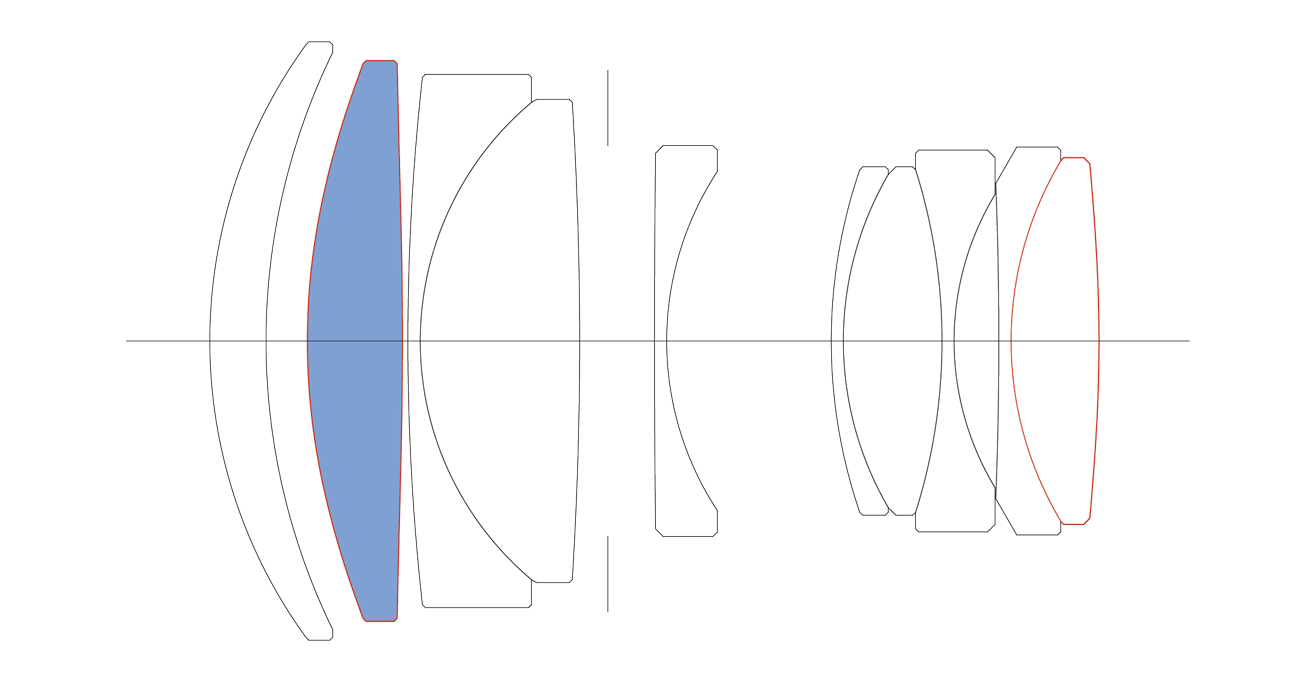

Lens construction
SLD glass
Aspherical lens
MTF Chart
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
-
Spatial frequency
S:Sagittal Line
M:Meridional Line
-
10lp/mm
-
30lp/mm
Diffraction MTF
Geometrical MTF
| Camera | SONY ILCE 7M2 |
|---|---|
| Shutter Speed | 1/500s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Juzo Iwaki |
| Camera | SONY ILCE 7M2 |
|---|---|
| Shutter Speed | 1/400s |
| Lens F Number | F3.5 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Juzo Iwaki |
| Camera | SONY ILCE 7M2 |
|---|---|
| Shutter Speed | 1/800s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Juzo Iwaki |
| Camera | Nikon Z 9 |
|---|---|
| Shutter Speed | 1/2000s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Noriko Yamaguchi |
| Camera | Nikon Z 9 |
|---|---|
| Shutter Speed | 1/250s |
| Lens F Number | F1.4 |
| ISO | 800 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Noriko Yamaguchi |
| Camera | Nikon Z 50 |
|---|---|
| Shutter Speed | 1/4000s |
| Lens F Number | F2 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Hideyuki Abe |
| Camera | SONY ILCE 7M2 |
|---|---|
| Shutter Speed | 1/20s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Juzo Iwaki |
| Camera | Nikon Z 9 |
|---|---|
| Shutter Speed | 1/500s |
| Lens F Number | F1.4 |
| ISO | 100 |
| Focal Length | 56mm |
|
Focal length
(35mm equivalent) |
84mm |
| Photographer | Noriko Yamaguchi |
Compact, lightweight and remarkable image quality
―a mid-tele lens for APS-C mirrorless
Offering an opportunity to experience the fun of shooting wide open, with F1.4 brightness
The first of the series is the standard lens 30mm F1.4 DC DN | Contemporary , and the second is the wide-angle lens 16mm F1.4 DC DN | Contemporary . The third addition is this smallest mid-tele lens in its class, 56mm F1.4 DC DN | Contemporary. While retaining the compact, lightweight, and outstanding image quality concepts of the Contemporary line, thanks to Sigma’s leading-edge technology, this lens provides the amount of bokeh and admirable brightness expected from F1.4 lenses even in the mid-tele range. This addition completes the large aperture series comprised of portable wide-angle, standard, and telephoto lenses.
