Camera Type
Mirrorless
-
Corresponding Mount
Sony E-mount, Micro Four Thirds mount
-
Sensor Format
Micro Four Thirds
-
Lens Construction
8 Elements in 6 Groups
-
Angle of View
59.3° (Sony E-mount 73.5°)
-
Number of Diaphragm Blades
7 (rounded diaphragm)
-
Minimum Aperture
F22
-
Minimum Focusing Distance
20cm / 7.8in
-
Maximum Magnification Ratio
1：7.4
-
Filter Size
⌀46mm
-
Dimensions (Diameter × Length)
⌀60.8mm×45.7mm / 2.4in.×1.8in.
-
Weight
160ｇ/5.6oz
-
Edition Number
A013
The three-digit code on the surface of the lens is to indicate the year the lens was first released.
(Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.) -
Supplied Accessories
Case and hood(LH520-03)
-
Mount / Product Barcode
Micro Four Thirds mount：00-85126-92975-6(Silver) (discontinued)
Micro Four Thirds mount：00-85126-92973-2(Black) (discontinued)
Sony E-mount：00-85126-92976-3(Silver) (discontinued)
Sony E-mount：00-85126-92974-9(Black) (discontinued)
-
Camera Compatibility
LINK
-
* All figures calculated by Micro Four Thirds mount.

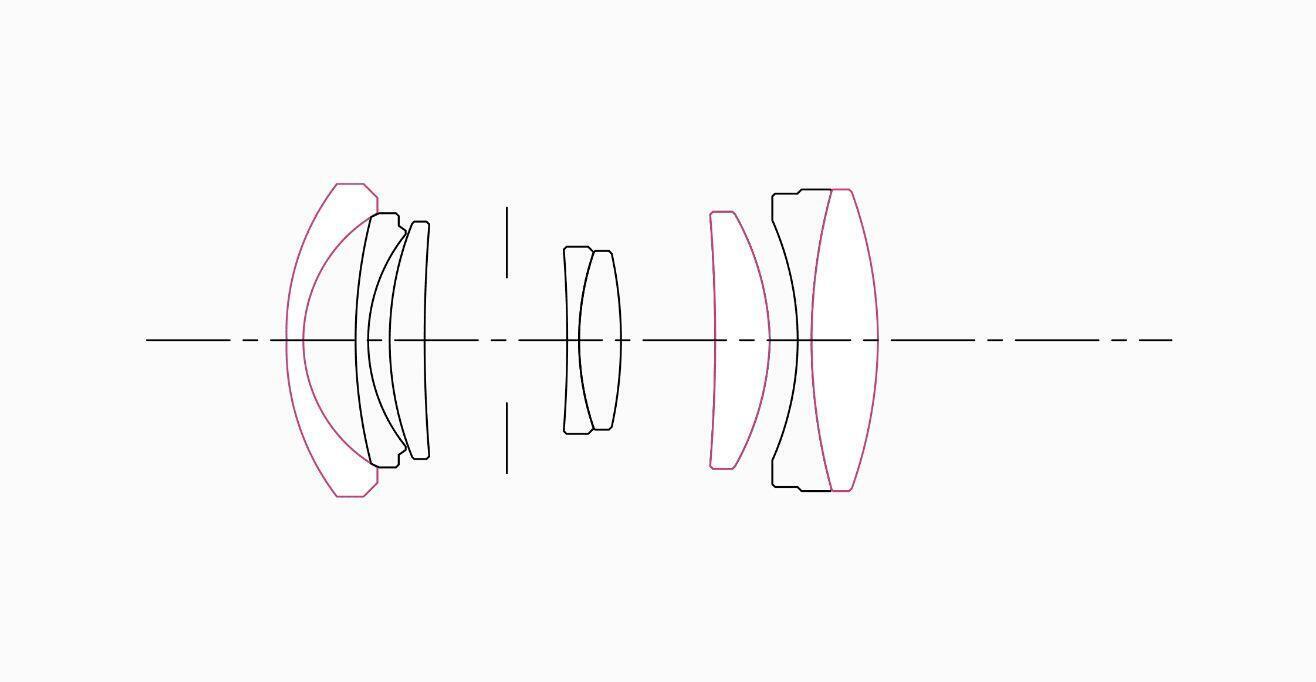

Lens construction
Aspherical lens
