Art
50mm F1.2 DG DN

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  17 elements in 12 groups (4 aspherical elements)

• Angle of View

  46.8°

• Number of Diaphragm Blades

  13 (rounded diaphragm)

• Minimum Aperture

  F16

• Minimum Focusing Distance

  40cm / 15.8in.

• Maximum Magnification Ratio

  1:6.2

• Filter Size

  φ72mm

• Dimensions (Diameter × Length)

  L-Mount：φ81.0mm x 108.8mm / φ3.2in. x 4.3in.

  Sony E-mount：φ81.0mm x 110.8mm / φ3.2in. x 4.4in.

• Weight

  L-Mount：745g / 26.3oz.

  Sony E-mount：740g / 26.1oz.

• Edition Number

  A024

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・CASE
  ・LENS HOOD LH782-03
  ・FRONT CAP LCF-72mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-31669-3

  Sony E-mount：00-85126-31665-5

• Camera Compatibility

  LINK

• * The appearance and specifications of the product are subject to change.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.

• Highest descriptive power to take advantage of F1.2 brightness

  The Sigma 50mm F1.2 DG DN | Art has been designed with an emphasis on high resolution from the maximum aperture to the full focus range and large, beautiful bokeh expression. The contrast between the sharpness of the focus surface and the melting bokeh effect creates a three-dimensional effect thanks to its F1.2 aperture. In addition, the 13-blade diaphragm allows for beautiful bokeh expressions. Focus breathing is also well-suppressed that the F1.2 rendering can be fully utilized in video recording.

• Brightness of F1.2 maximum aperture and high resolution from minimum to infinity focus

  The latest optical design achieves high resolving power with each aberration thoroughly suppressed from the maximum aperture. The lens is capable of rendering details without color bleeding in any situation. In addition, the incorporated floating focus is advantageous in improving short-range performance, ensuring a stable, high-level image quality throughout the entire range from the minimum focusing distance to infinity.



• Rich and beautiful bokeh without color bleeding

  By correcting spherical aberration, sagittal coma flare, axial chromatic aberration, and other aberrations, the lens delivers natural bokeh images that blur smoothly and without color bleeding from the focal plane. Double-line bokeh is also suppressed, allowing users to take advantage of the mellow bokeh effect in their expression.



• Rounded diaphragm with 13 blades

  The lens incorporates Sigma's first 13-blade diaphragm, which maintains a circular shape even when stopped down from the maximum aperture. The surface accuracy of the aspherical lens has been enhanced to the utmost to enable smooth and beautiful round bokeh expressions.



• Designed to minimize focus breathing

  Optimization of the focus group arrangement and aspherical shape significantly suppresses focus breathing. The change in angle of view due to focus shift is minimized, creating a natural-looking focus shift when recording video.

• Designed to minimize flare and ghosting

  Flare and ghosting, which reduce image quality, are addressed under all conditions of incident light, based on the most advanced simulation technology. High backlight resistance enables clear and sharp images under any lighting conditions.

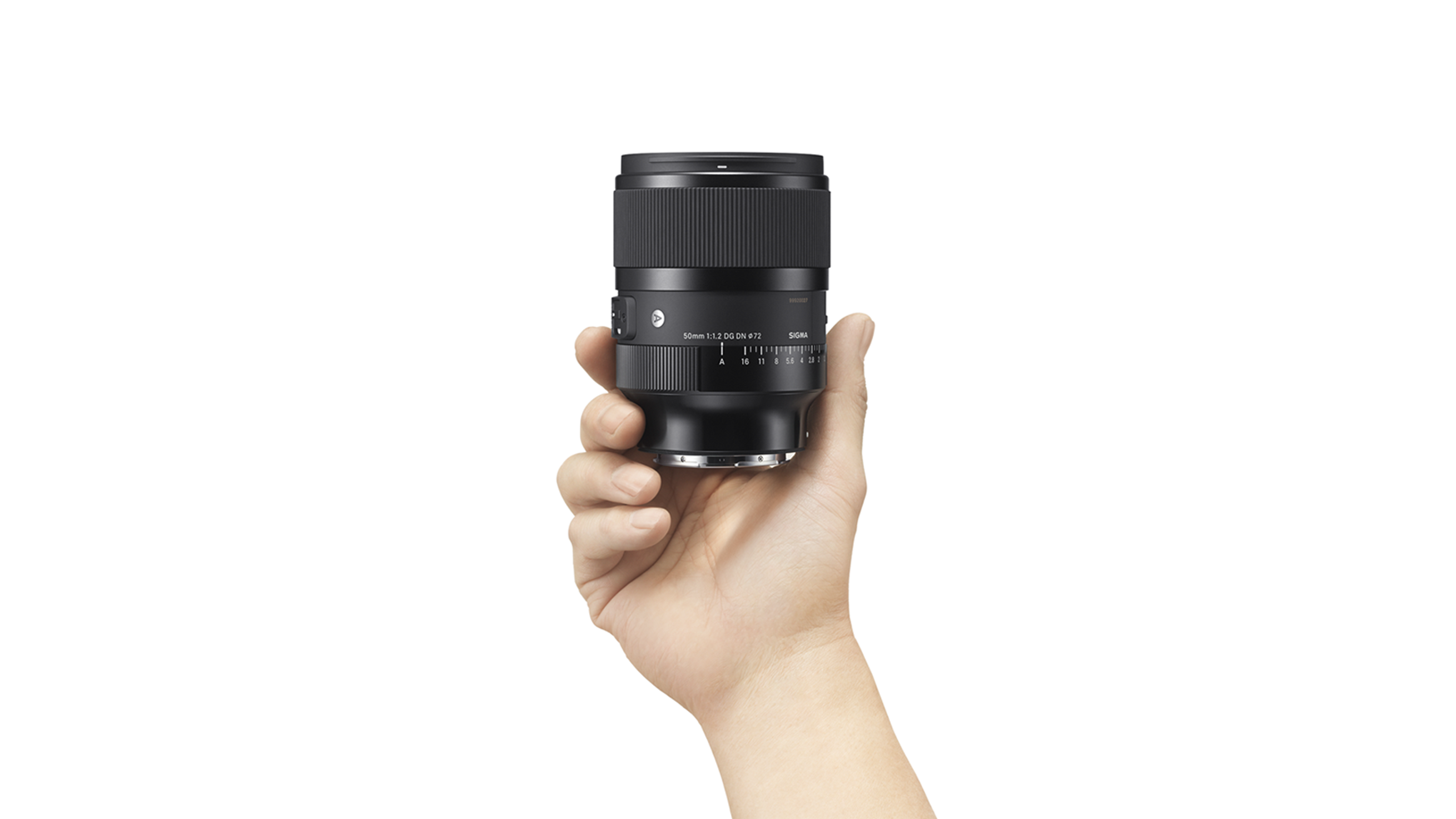

• Lightest weight lens body in its class*, suitable for a wide range of applications

  By uncompromisingly pursuing high optical performance and portability, which are inherently contradictory, the highest level of performance has been condensed into the lightest lens body in its class. The Sigma 50mm F1.2 DG DN | Art can be used not only in limited situations and applications, but in all kinds of shooting environments.

  * As an AF 50mm F1.2 interchangeable lens for full-frame mirrorless cameras. (As of March 2024 by Sigma)



• Dual HLA incorporating a new system

  A new system was developed that significantly reduces the volume while maintaining the same thrust of the HLA, which is characterized by its high driving accuracy and quietness, and is featured in each of the two focus groups. This technological innovation has realized both high-speed autofocus and a compact lens body.

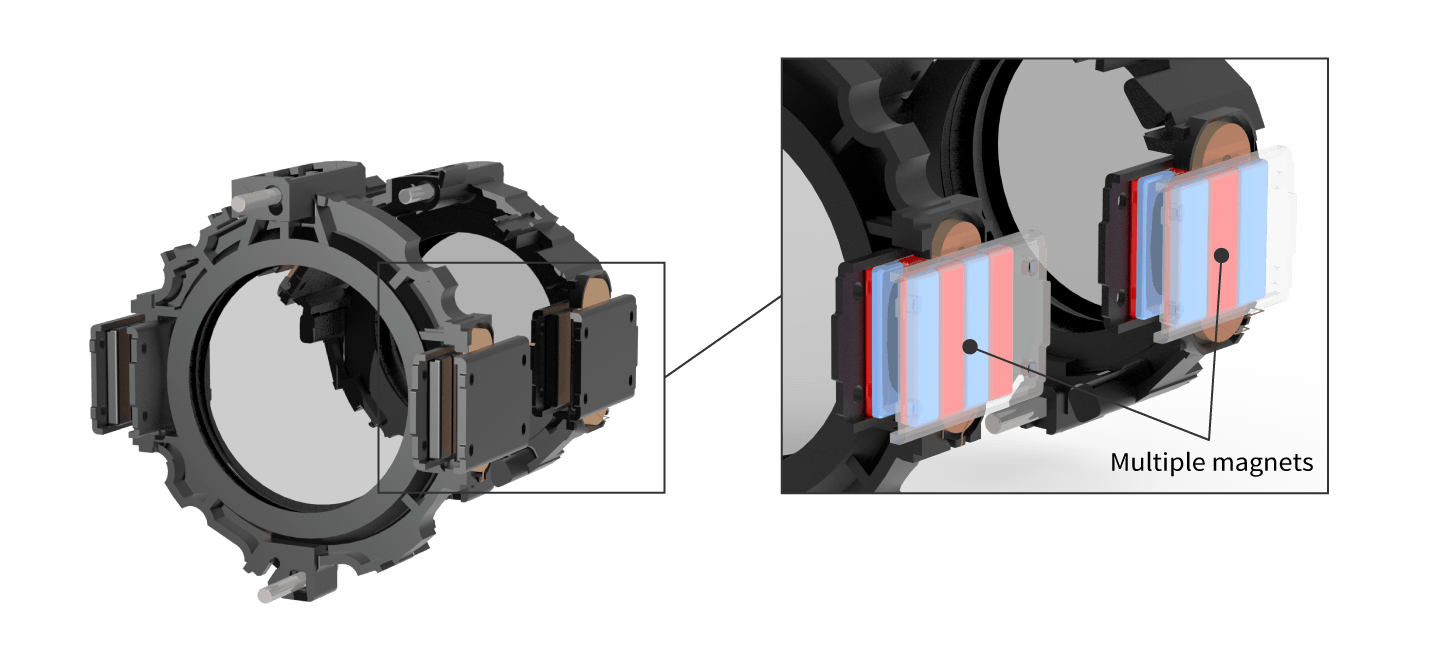

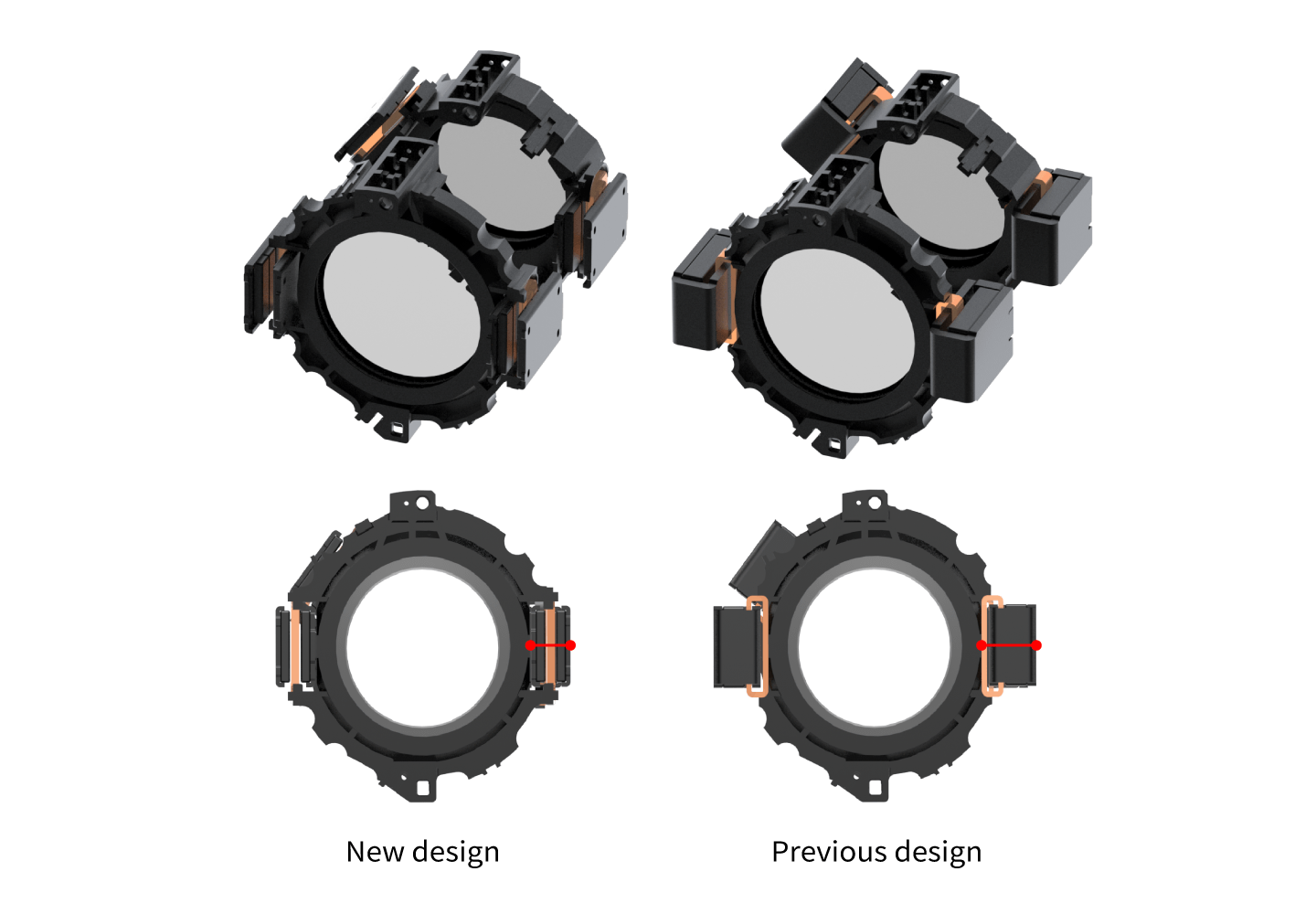

• New smaller and lighter HLA design

  By precisely controlling the configuration of multiple magnets, the HLA provides sufficient thrust to quickly move the lens's large-diameter focus elements, while achieving an approximate 25% reduction in unit thickness from the previous HLA design as well as a 44% reduction in total weight.



• Lens construction and mechanical design stripped down to the absolute minimum

  Each piece of glass is made as thin as possible while employing glasses with a high refractive index and four aspherical lenses. The high level of production technology at Sigma’s only manufacturing base, the Aizu factory, provides the exacting precision necessary for processing these thin glass elements and making this mass production possible. In addition, the floating focus construction ensures high performance while shortening the overall length, resulting in a compact lens. In the mechanical design phase, emphasis was placed on weight reduction. Through the systematic elimination of individual components, Sigma attained the distinction of producing the lightest lens in its class, weighing a mere 745g / 26.3oz.*

  * These figures are for L-Mount.



  Aspherical lens

  ^{Lens Construction: 17 elements in 12 groups (4 aspherical elements)}

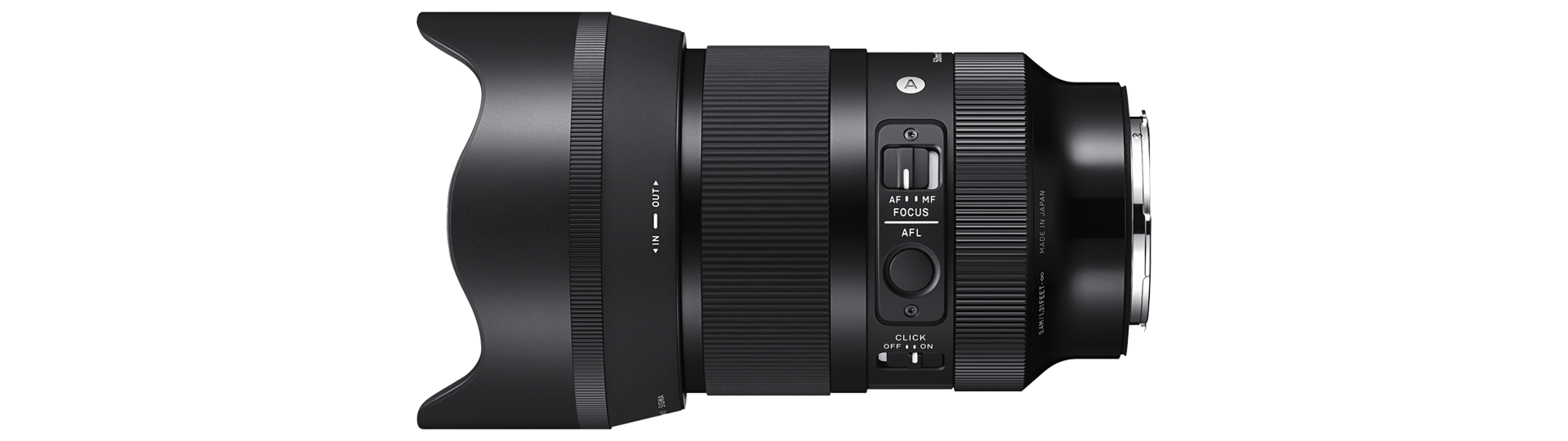

• A wealth of functions for professional use and excellent build quality

  In addition to various functions that support photography, such as the AFL button ^* and an aperture ring, the construction of the lens body itself and its high-quality touch and feel are also pursued. The Sigma 50mm F1.2 DG DN | Art is designed with high functionality and reliability to meet the stringent demands of professionals, as well as excellent build quality for long-lasting, reliable use.

  * Function available on supported cameras only. Available functions may vary depending on the camera used.



• Proud to be a tool of expression, excellent build quality with Sigma’s Art line specifications

  By assembling high-precision parts made of lightweight and strong TSC* and other materials, the lens has the high level of rigidity and durability of Sigma’s Art line specifications without sacrificing portability, as well as excellent build quality that allows for long-lasting and reliable use as a photographic tool.

  * TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has a high affinity to metal parts, which contributes to high quality product manufacturing.



• Various shooting assist functions

  The lens is equipped with an AFL button which can be assigned to a range of functions via the menu on selected cameras. In addition to the aperture ring, the lens is equipped with an aperture ring lock switch and a click switch to turn the click on and off.

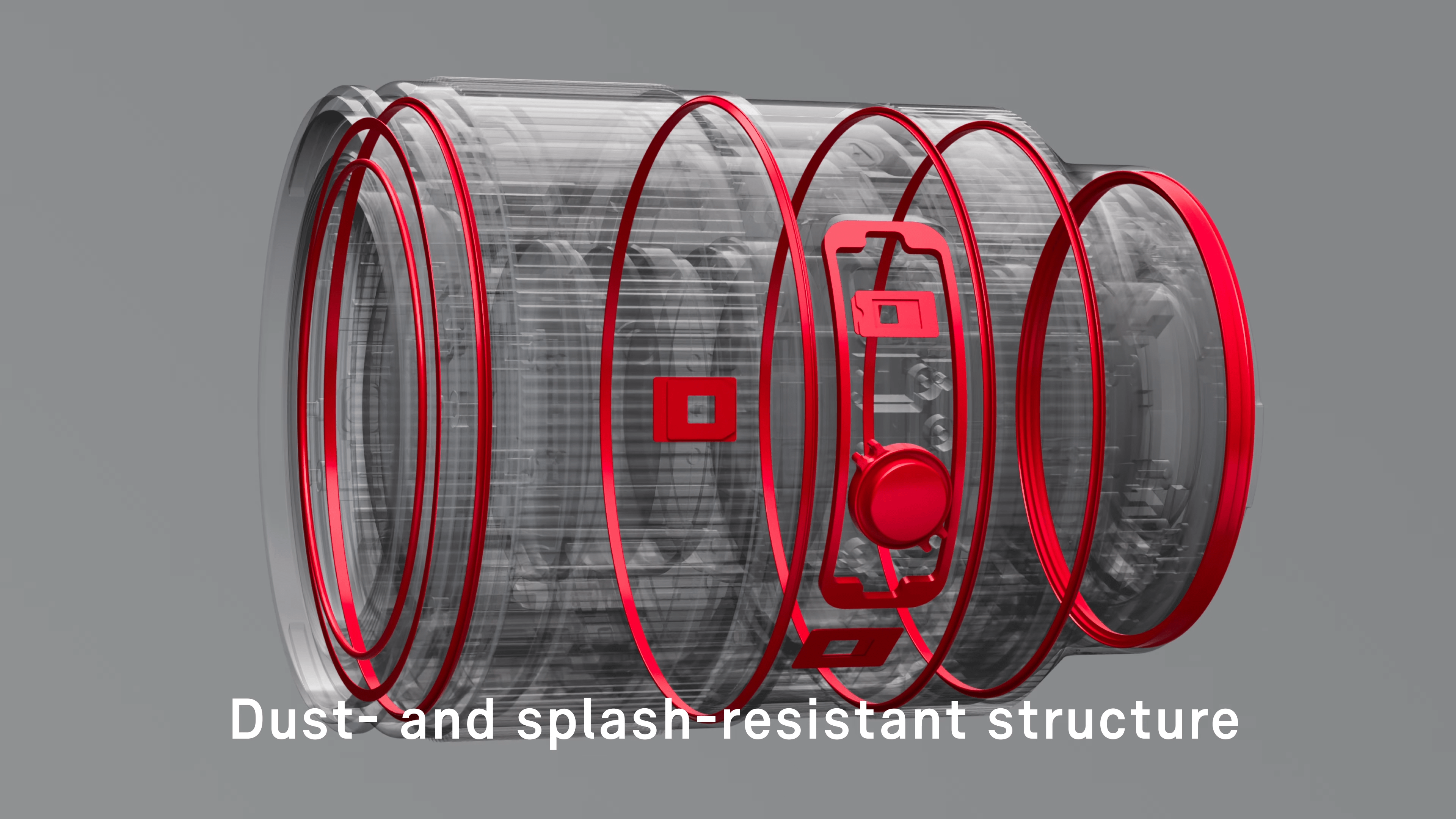

• Dust and splash resistant structure* and water and oil repellent coating

  In addition to a dust and splash resistant structure, the front element of the lens features a water and oil repellent coating, allowing photographers to shoot without concerns even in harsh outdoor environments.

  * The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.

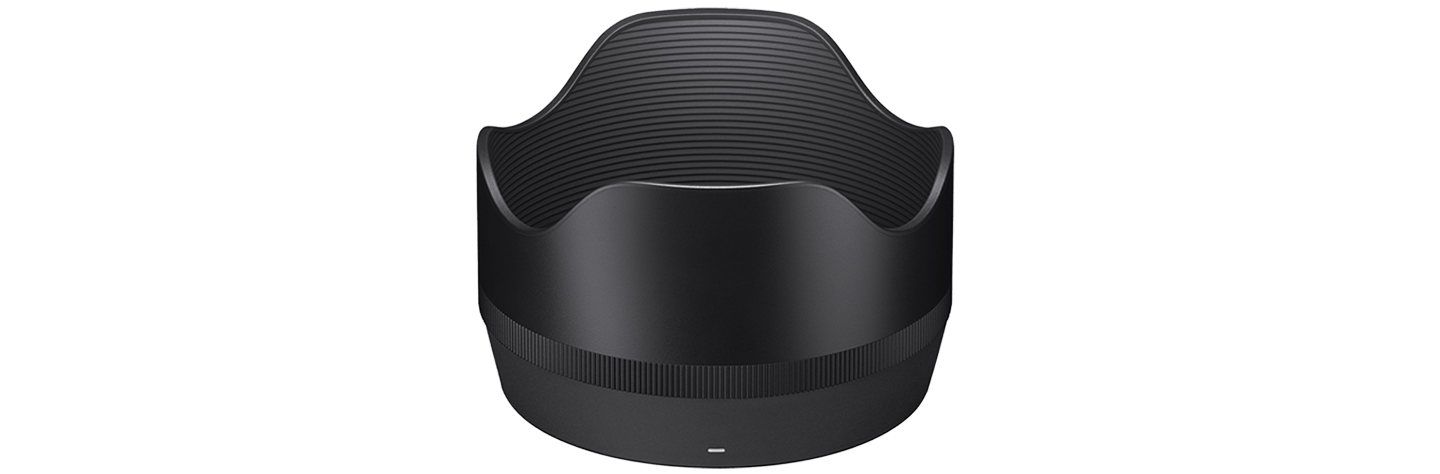

• Including a petal-type hood with lock

  A dedicated petal-shaped hood is supplied. A locking mechanism is provided for secure attachment.

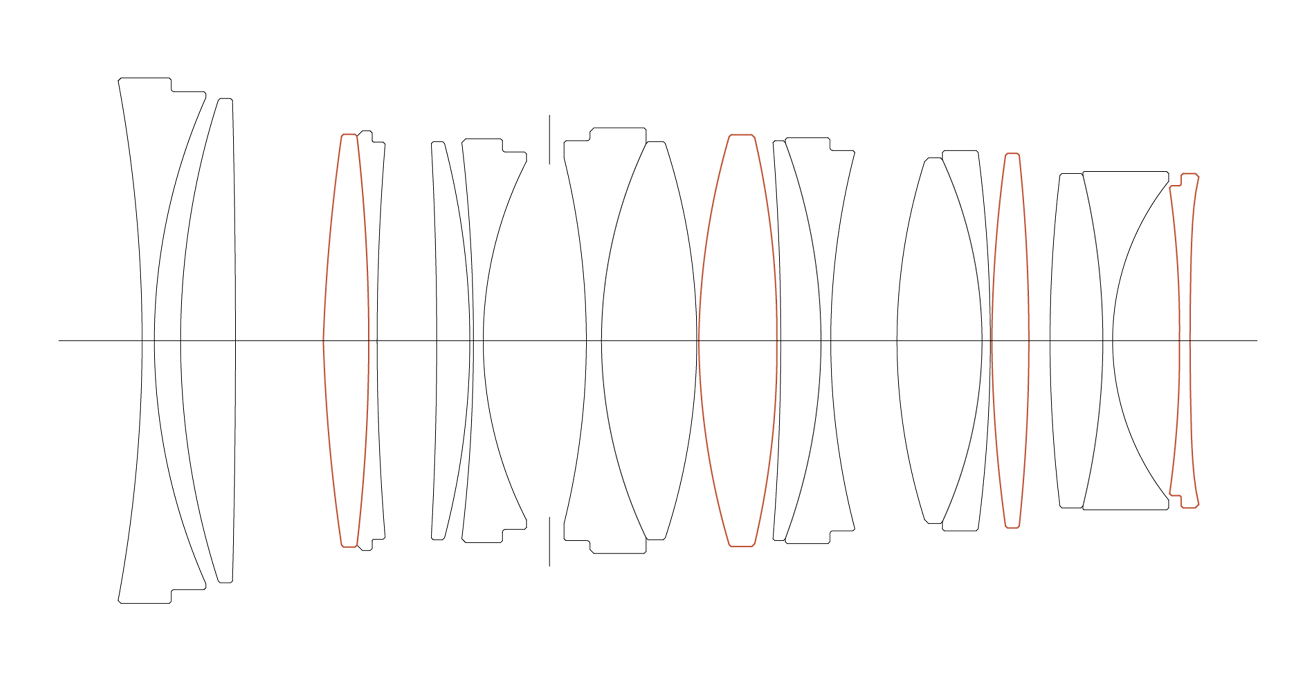

Lens construction

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Geometrical MTF

• Compatible with high-speed autofocus

• Supports DMF and AF+MF

• Compatible with AF assist (for Sony E-mount only)

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• Every single lens undergoes Sigma’s proprietary MTF measuring system

• 13-blade rounded diaphragm

• High-precision, durable brass bayonet mount

• Mount Conversion Service available

• “Made in Aizu, Japan“ craftsmanship
