Art
28-105mm F2.8 DG DN

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  18 elements in 13 groups (2 FLD, 1 SLD, and 5 aspherical elements)

• Angle of View

  75.4°-23.3°

• Number of Diaphragm Blades

  12 (rounded diaphragm)

• Minimum Aperture

  F22

• Minimum Focusing Distance

  40cm

• Maximum Magnification Ratio

  1:3.1(at 105mm)

• Filter Size

  φ82mm

• Dimensions (Diameter × Length)

  L-Mount：φ87.8mm x 157.9mm / φ3.5in. x 6.2in.

  Sony E-mount：φ87.8mm x 159.9mm / φ3.5in. x 6.3in.

• Weight

  L-Mount：995g / 35.1oz.

  Sony E-mount：990g / 34.9oz.

• Edition Number

  A024

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH878-07
  ・FRONT CAP LCF-82 III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-63669-2

  Sony E-mount：00-85126-63665-4

• Camera Compatibility

  LINK

• * The appearance and specifications of the product are subject to change.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * L-Mount is a registered trademark of Leica Camera AG.

• Constant F2.8 aperture across a versatile 28-105mm zoom

  Many conventional zoom lenses which have a reach up to 105mm do not offer a constant F2.8 aperture, usually dropping to F4 at the long end. But the Sigma 28-105mm F2.8 DG DN | Art delivers the same impressive light-gathering and depth-of-field benefits across the whole focal range. The lens offers all of this along with extremely high optical performance thanks to the thorough suppression of optical aberrations within each lens group. And with its outstanding close-focusing capability when zoomed in, macro-style results are also possible.

• A versatile F2.8 aperture perfect for portraits and low light

  With its fast aperture across the whole focal range, the Sigma 28-105mm F2.8 DG DN | Art is a true workhorse lens that can be used for almost any type of photography. Scenic photographers can shoot wide-angle landscapes, using the F2.8 aperture for low-light scenes and twilight urban views, while the middle focal lengths tackle dimly lit documentary and street subjects, allowing shutter speeds one stop faster than comparable lenses. At the long end, popular portrait focal lengths from 85mm and 105mm, combined with the F2.8 maximum aperture, produce a shallow depth-of-field that will isolate a subject impressively against large and beautiful bokeh.



• Fill the frame with superb close-up performance

  Achieving a minimum focus distance of just 40cm across its entire zoom range, the Sigma 28-105mm F2.8 DG DN | Art can get you closer to your subject, filling the frame with detail and texture. At its 105mm setting, this creates a very useful maximum magnification ratio of 1:3.1 for powerful macro-style results.

• Superior optical performance across the full zoom and focus range

  The Sigma 28-105mm F2.8 DG DN | Art operates without compromise, suppressing aberrations very effectively within each lens group, and throughout the entire zoom and focal range. This ensures the lens has a consistent performance even with such a long zoom range. This is thanks to the lens’s premium optical design, which includes two FLD, one SLD and five aspherical elements, the first grouping of which uses a large-diameter φ66.4mm element that is extremely difficult to produce and only available thanks to Sigma’s advanced manufacturing technology at its sole production base in Aizu, Japan.



• Designed to minimize flare and ghosting

  Using advanced simulation technology, flare and ghosting have been largely eliminated, ensuring that the lens renders rich, high-contrast results in all conditions. In addition, Sigma’s Nano Porous Coating and Super Multi-Layer Coating have been applied to further suppress flare and ghosting.



• Minimal focus breathing

  Vital for film-makers who demand consistent framing, the lens has been designed to keep focus breathing to a minimum. This ensures that any changes to the angle-of-view due to focus shift are minimized across the entire zoom range, ensuring natural-looking focus pulls when recording video, and easier image alignment when focus stacking.

• Superb portability thanks to a weight of less than 1kg

  Standard zooms should be small and light enough for all-day hand-held shooting, so the Sigma 28-105mm F2.8 DG DN | Art has been designed with portability in mind. It combines five aspherical elements effectively in place to shorten the overall length, and a magnesium-alloy construction around the mount, keeping the weight of the lens to less than 1kg. This ensures the lens has superb portability similar to shorter standard zoom lenses, while providing a wider zoom range.



• Excellent optical performance in a streamlined body

  By using five aspherical elements in its optical construction, Sigma has succeeded in significantly shortening the lens’s total length without any compromise to sharpness and image quality. This advanced configuration was only made possible by continuous technological innovation and cutting-edge manufacturing processes at Sigma’s sole production base in Aizu, Japan.



• Smarter design means lower weight

  Constant F2.8 zoom lenses can be heavy, but by optimising the design and materials of each part of the Sigma 28-105mm F2.8 DG DN | Art, Sigma has achieved a remarkably light weight of less than 1kg. The use of magnesium-alloy rather than aluminum for the lens barrel around the mount has reduced the weight of these parts alone by two-thirds, while ensuring rigidity.

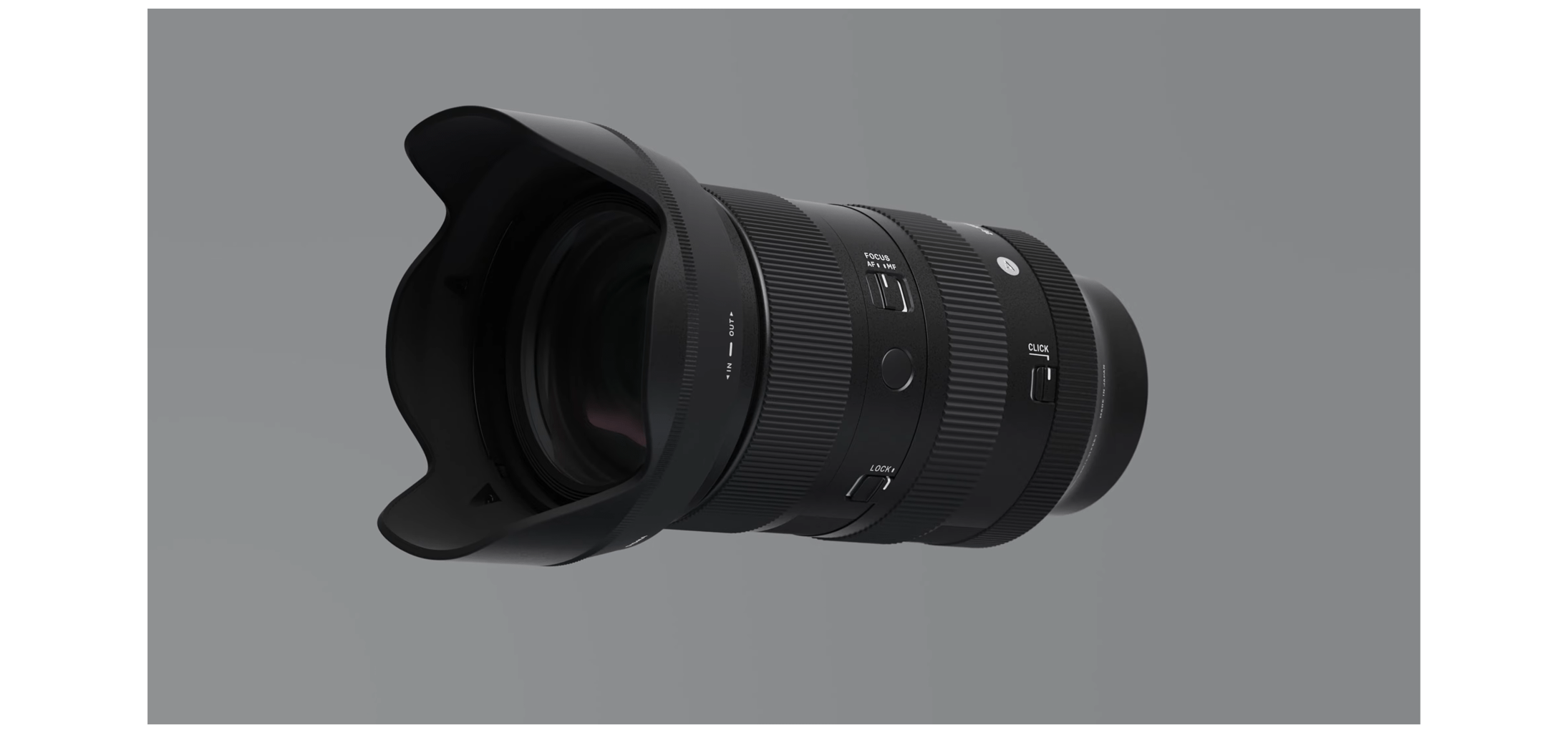

• Professional features, fast AF and excellent build quality

  In addition to high-speed AF delivered by its linear motor HLA (High-response Linear Actuator), the Sigma 28-105mm F2.8 DG DN | Art packs in a range of features that help deliver the best possible results in every shooting situation. These include a dust- and splash-resistant structure and water- and oil-repellent coating, as well as a zoom lock switch, a de-clickable aperture ring, AFL buttons and the focus ring for easier handling including shooting with MF.



• A linear motor HLA for rapid and accurate AF

  The lens incorporates a linear motor HLA (High-response Linear Actuator) that delivers a maximum drive speed, ensuring responsive, precise and smooth AF. With its high level of quietness, the motor also provides noise-free video capability.

• An aperture ring for improved ergonomics

  For quick changes to exposure, or a more traditional way of shooting, the lens is equipped with a dedicated aperture ring, allowing the user to change aperture via the lens if preferred. An aperture ring click switch is a useful tool for film-makers, and a lock switch helps ensure the aperture ring is not knocked out of its setting accidentally.

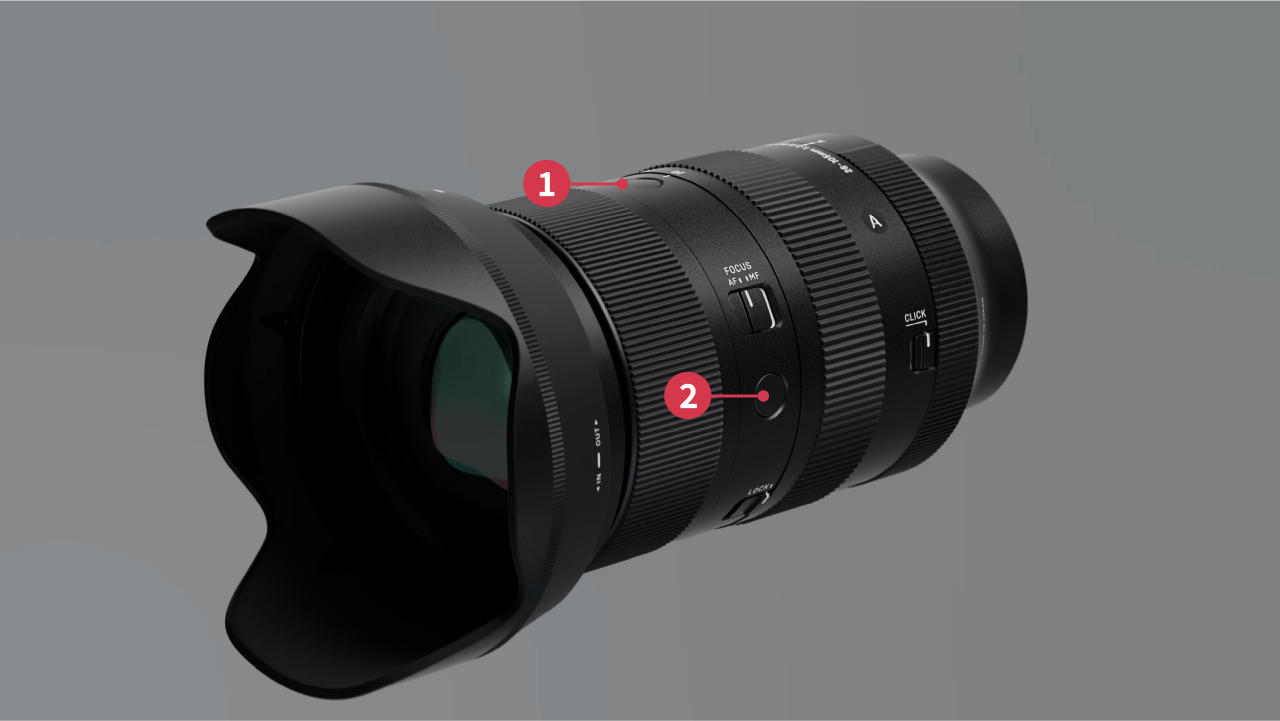

• Two AFL buttons* for added customization

  Located on the side and on top of the barrel, two customizable AFL buttons can easily be reached in either horizontal or vertical shooting positions, ensuring more ergonomic handling.

  ^{* Assignment of functions is limited to supported cameras and assignable functions vary depending on the camera.}

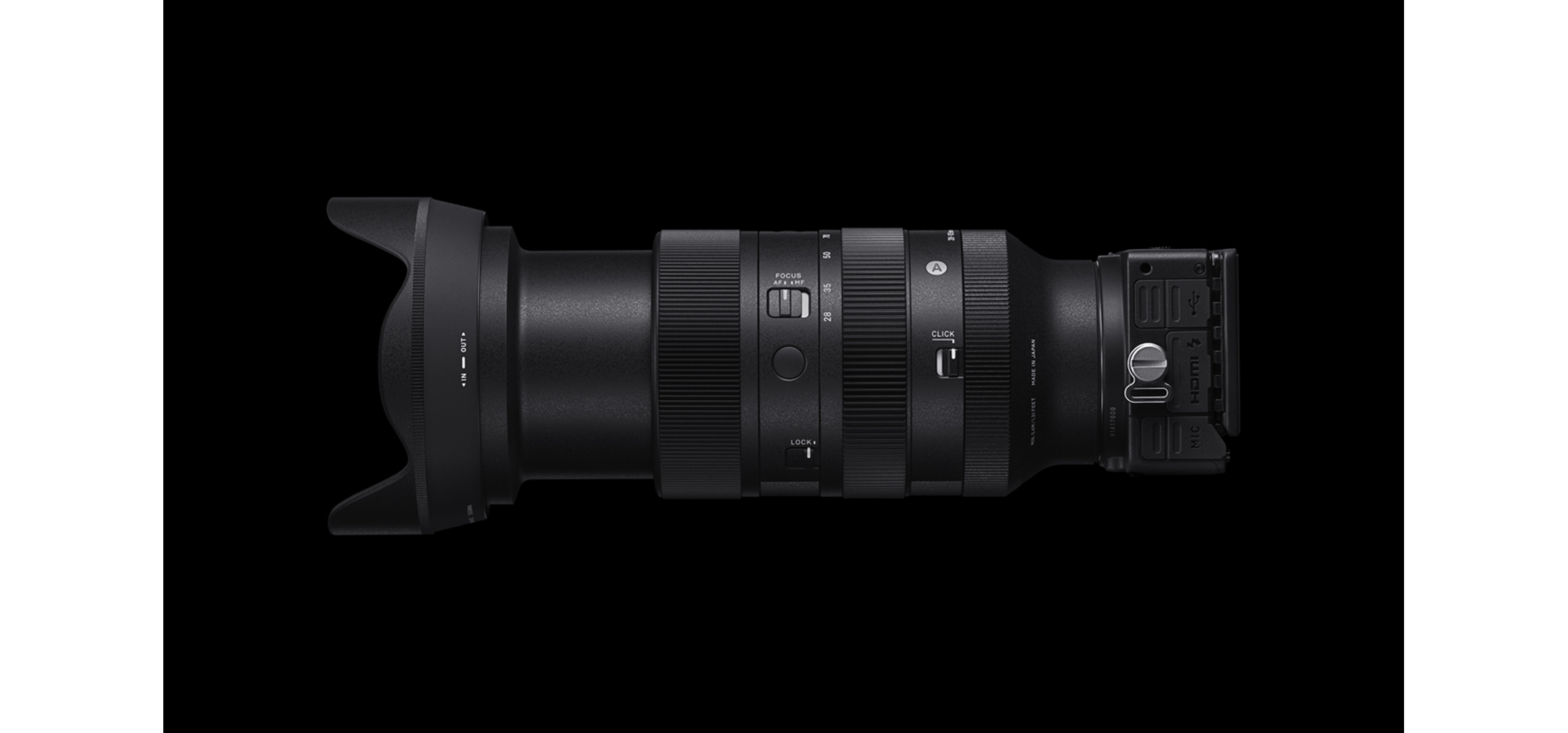

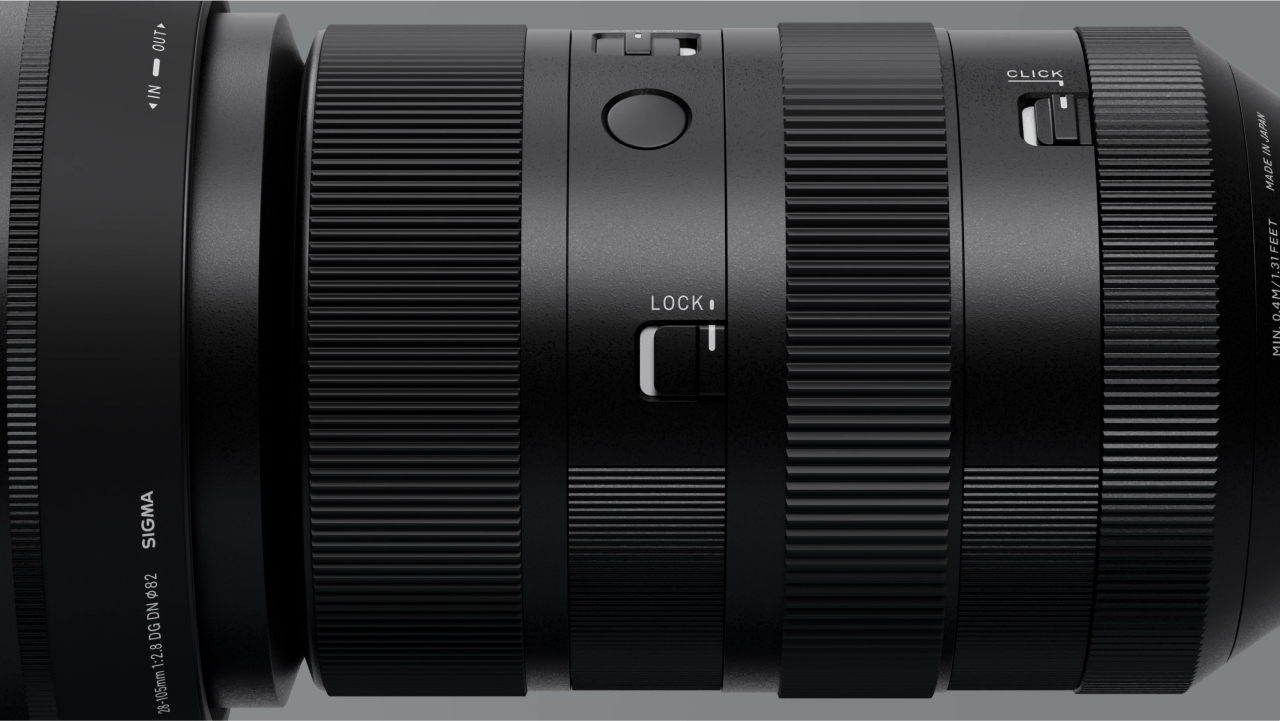

• Zoom lock switch to keep the zoom ring secure

  The lens is equipped with a zoom lock switch that holds the zoom mechanism in place at its wide end, preventing it from extending unintentionally under its own weight when carried. The lock can be released by the switch, or by turning the zoom ring for a faster and more flexible workflow.

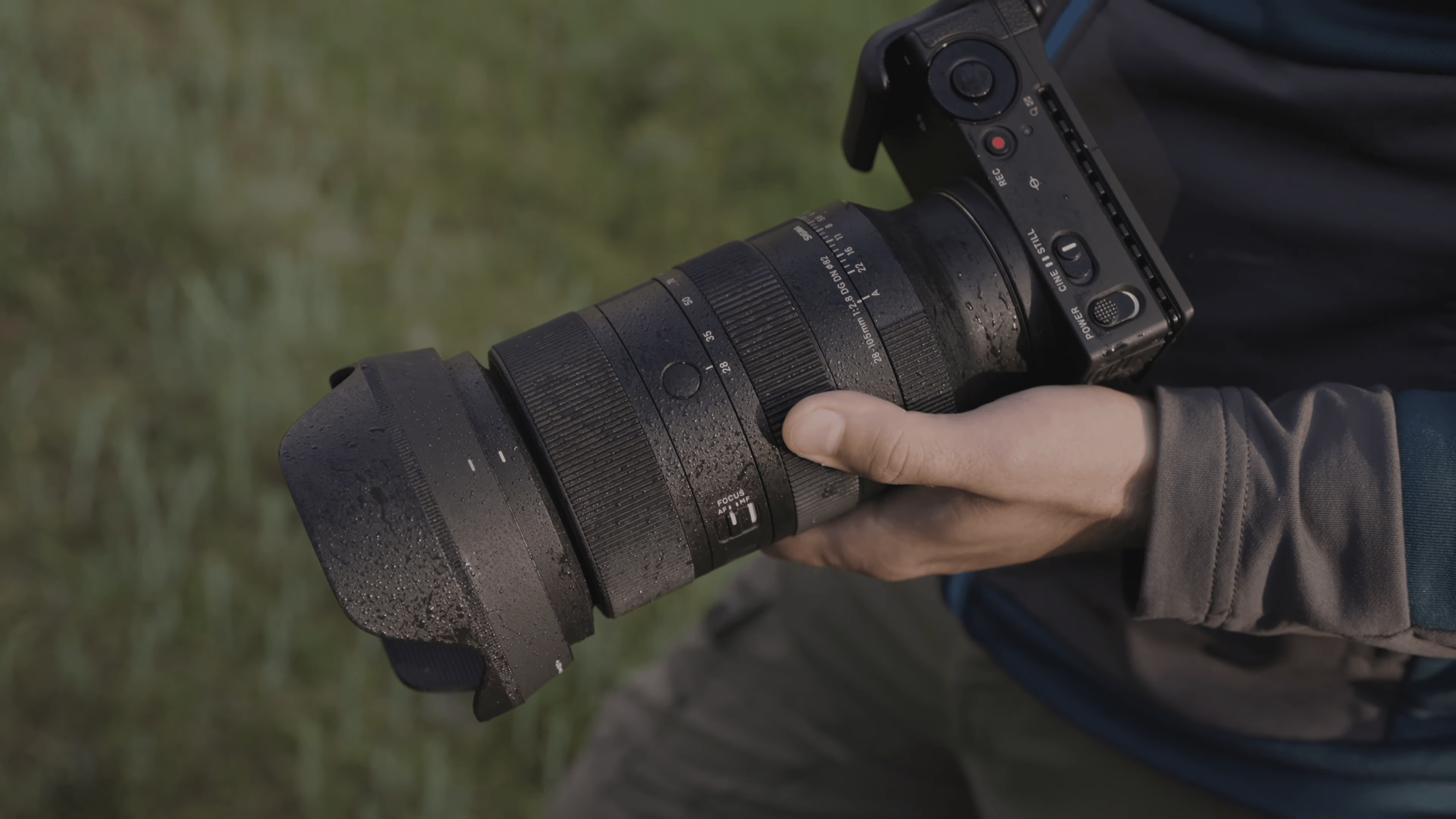

• Weather-resistant structure for challenging conditions

  The lens has a dust- and splash-resistant structure* that keeps it free of contaminants in harsh outdoor environments. The front element also features a water- and oil-repellent coating that helps keep it clean in adverse shooting conditions.

  ^{* The structure is designed to be dust- and splash-resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.}

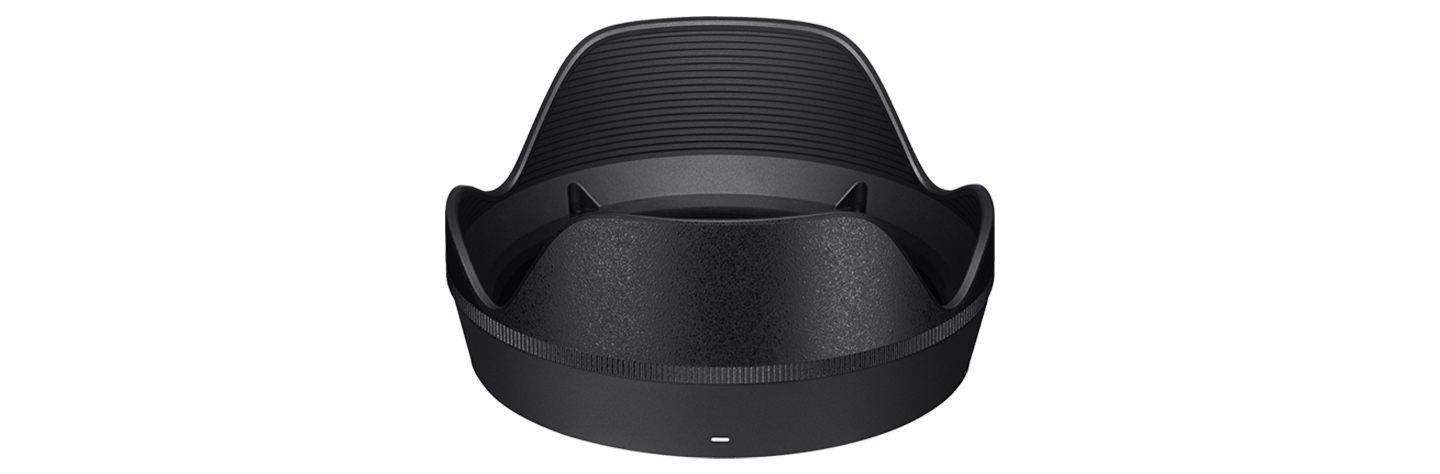

• Petal-type hood

  A dedicated petal-shaped hood is supplied. A locking mechanism is provided for secure attachment.

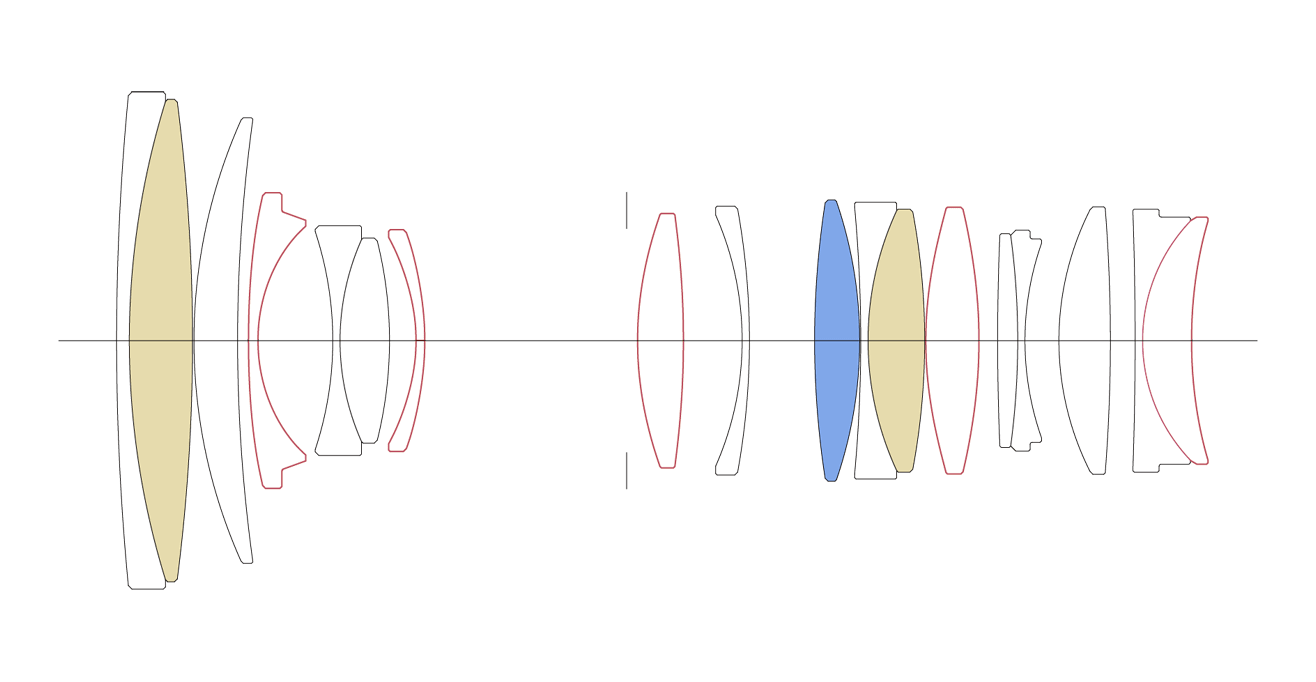

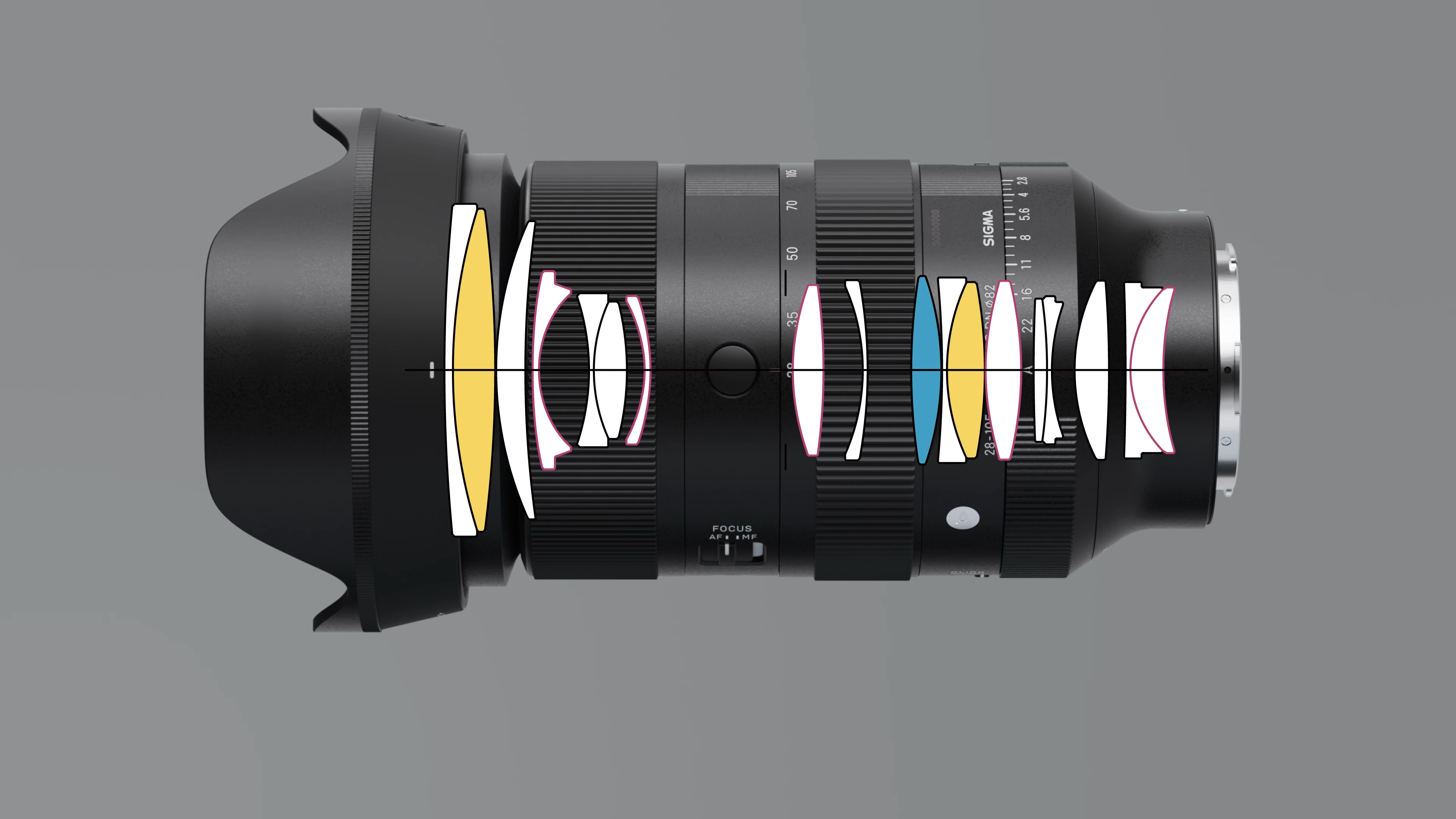

Lens construction

FLD glass

SLD glass

Aspherical lens

• Spatial frequency

  S:Sagittal Line

  M:Meridional Line

• 10lp/mm

• 30lp/mm

Diffraction MTF

Diffraction MTF

Geometrical MTF

Geometrical MTF

• Compatible with high-speed autofocus

• Supports DMF and AF+MF

• Compatible with AF assist (for Sony E-mount only)

• Lens Hood LH878-07

• Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

• Designed to minimize flare and ghosting

• Mount Conversion Service available
