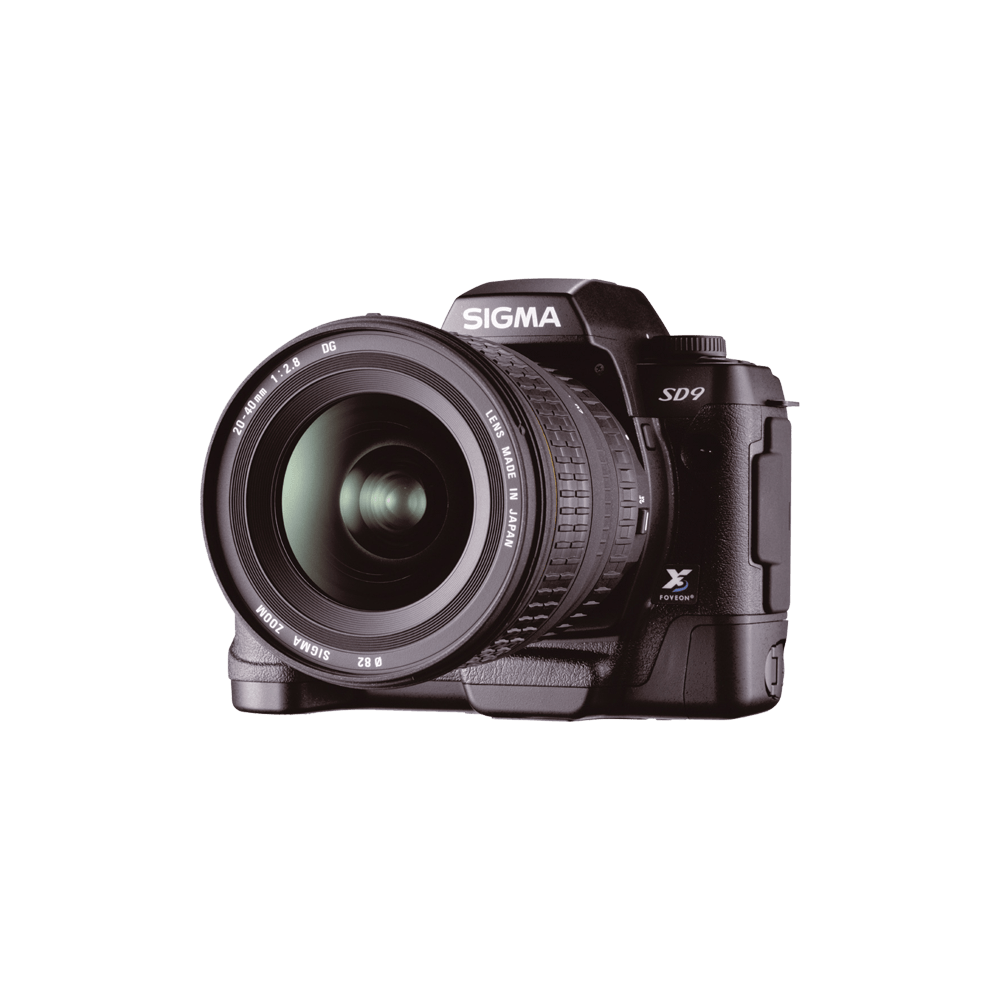

SD9

Find a dealer

  • Format

    Interchangeable-Lens SLR-Type Digital Camera

  • Compatible Lenses

    SIGMA SA mount lenses

  • Lens Mount

    SA Bayonet Mount

  • Angle of View

    Equivalent to 1.7x the focal length of lens when used on a 35mm SLR

  • Image Sensor

    FOVEON X3® Direct Image Sensor (CMOS)

  • Image Sensor Size

    20.7×13.8mm

  • Image Sensor Pixels

    Total:10.62 Million Pixels (3.54 Million × 3 Layers), Effective: 10.29 Million Pixels (3.43 Million × 3 Layers)

  • Aspect Ratio

    3:2

  • Storage Media

    CompactFlash™ (CF) (TypeI/II), IBM Microdrive™

  • Recording Mode

    Lossless compression RAW Data (12bit)

  • Capture File Size

    RAW
    High Approx. 8.0 MB (2,268×1,512)
    Medium Approx. 4.0 MB (1,512×1,008)
    Low Approx. 2.0 MB (1,134×756)

  • White Balance

    8 types ( Auto, Daylight , Shade, Overcast, Incandescent, Fluorescent, Flash, Custom )

  • Viewfinder Type

    Pentaprism SLR Viewfinder

  • Viewfinder Frame coverage

    98% horizontal, 97% vertical

  • Viewfinder Magnification

    0.77x (50mm F1.4 – inf.)

  • Eye point

    18mm

  • Diopter Adjustment Range

    -3dpt ～＋1dpt

  • Auto Focus Type

    TTL phase difference detection system

  • AF Operating Range

    EV2 to +18 (ISO100)

  • Focus Mode

    Single AF, Continuous AF (AF Predict function)

  • Metering Systems

    8-segment Evaluative Metering, Center Metering, Center-Weighted Average Metering

  • Metering Range

    EV1 to 20 (with 50mm F1.4 at ISO100)

  • Exposure Control System

    (P) Program AE with program shift function, (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

  • ISO Sensitivity

    ISO 100, 200, 400

  • Exposure Compensation

    ±3EV (in 1/2steps)

  • AE Lock

    Pushbutton type (exposure settings are locked while the button in depressed)

  • Auto Bracketing

    Three Different Exposure Levels; Appropriate, Under and Over Exposure; in 1/2 EV steps up to 3EV

  • Shutter Type

    Vertical-travel metal focal plane shutter electronically controlled through entire speed range

  • Shutter Speed

    1/6000 to 15sec.(ISO100), 1/6000 to 1sec.(ISO200,400), Bulb(ISO100.Limit to 15sec.)

  • External Flash Synchronization

    Hot shoe (contact X, synchronized at 1/180-sec. or less, with dedicated flash linking contact)

  • LCD Monitor Type

    1.8″, Color TFT LCD with Approx 130,000dot low-temp. polysilicon Coverage Area : 100% Backlight : White LED

  • Monitor Size

    1.8″

  • LCD Pixels

    Approx. 130,000

  • Reviewing Images

    Single-Image Display, Zoom-in Display, 9 segments thumbnail display, Slide Show

  • LCD Monitor Language

    English / Japanese / German / French

  • Interfaces

    IEEE1394, USB (1.1), Video Out (NTSC/PAL)

  • Power

    Battery: Lithium CR123A x 2pcs batteries Lithium CR-V3 x 2pcs, or “AA” type Ni-MH x 4pcs AC Adapter

  • Dimensions

    152(W)mm x 120(H)mm x 79(D)mm

  • Weight

    805g /28.4oz (without battery)

  • Continuous shooting speed

    High : 1.9 frames/second, Medium : 2.4 frames/second, Low : 2.5 frames/second

  • Continuous Buffer

    High : 6 frames, Medium : 14 frames, Low : 30 frames

  • Product Barcode

    SD9 : 00-85126-91947-4 (discontinued)
