ELECTRONIC FLASH EF-610 DG ST

ELECTRONIC FLASH EF-610 DG ST



ELECTRONIC FLASH EF-610 DG ST

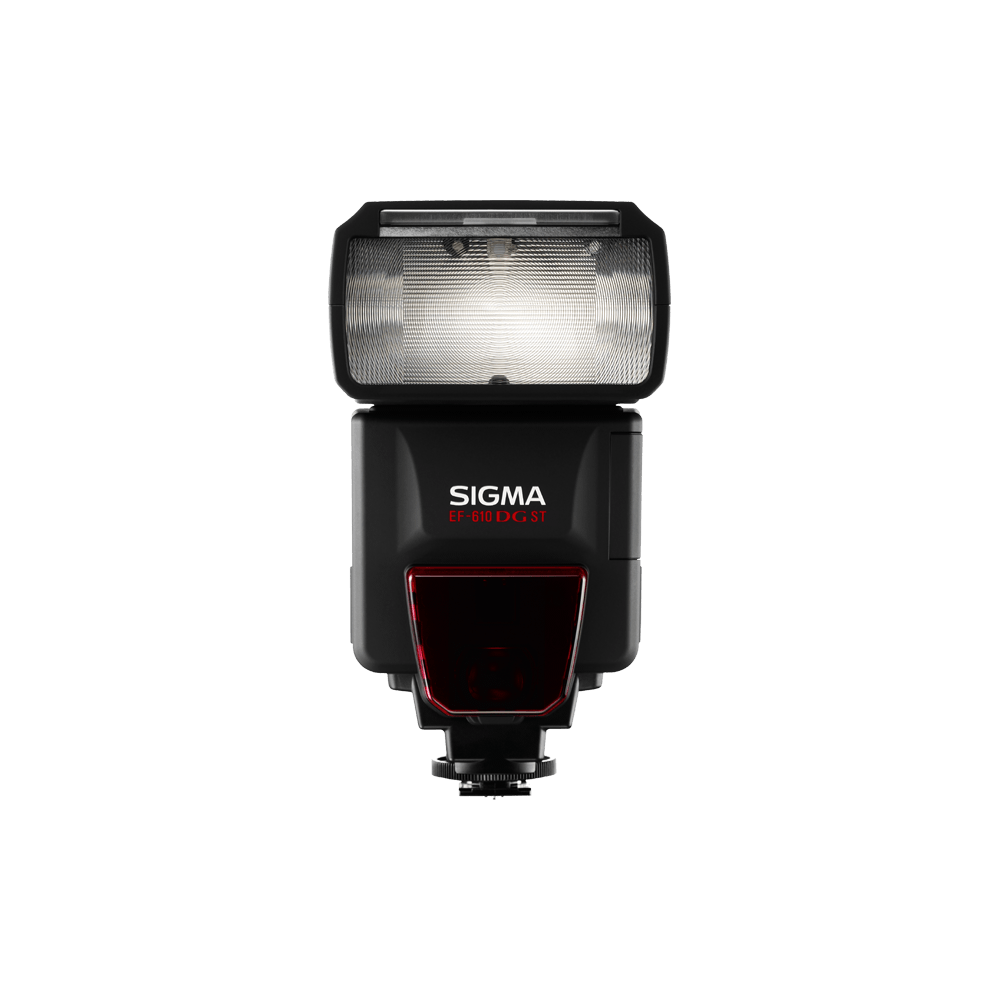

The ELECTRONIC FLASH EF-610 DG ST features a powerful Guide Number of 61 and is designed to work with the TTL auto exposure systems of all popular digital and film SLR cameras.
It features TTL automatic flash exposure control for easy operation. The autozoom function automatically sets the optimum illumination angle in accordance with the lens’ focal length in a range from 24mm to 105mm. When the built-in Wide Panel is used, the flash can cover the angle of 17mm. For bounce flash, the flashgun head can be tilted up by 90 degrees, to the left by 180 degrees, or to the right by 90 degrees. It can also be tilted down by 7 degrees allowing ease of use for close-up photography. In addition to automatic mode, the flashgun also features a manual flash mode, making it possible to set the flash power to full or 1/16. When the flashgun is fully charged, a confirmation ‘ready’ light will be emitted and the flash exposure level can be checked through the camera’s viewfinder. Other features incorporated into this flashgun include the Auto Power-Off function to help save battery power.

ELECTRONIC FLASH EF-610 DG ST

Read More

Specifications

Power source

Four AA Alkaline or AA NiCd or Ni-MH (Nickel Metal Hydride) batteries

Illumination angle

Automatically set in accordance with the focal length of the lens, in a range from 24mm to 105mm. Also covers the angle of a 17mm lens when used with the built-in Wide Panel.

Charging time

Approx. 7 seconds (when using alkaline batteries), Approx. 5 seconds (when using NiCd, Ni-MH batteries)

Number of flashes

Approx. 120 flashes (when using alkaline batteries), Approx. 160 flashes (when using Nicd, Ni-MH batteries)

Bounce angle (Up)

0, 60, 75, 90°

Bounce angle (Right)

0, 60, 75, 90°

Bounce angle (Left)

0, 60, 75, 90, 120, 150, 180°

Bounce angle (Down)

0, 7°

Dimensions(W×H×D)

77×139×117mm / 3.0in.×5.5in.×4.6 in.

Weight

320g (11.3oz.) (without batteries)

Compatible cameras

SIGMA SA, CANON EF, NIKON F, PENTAX, Sony A-mount

Product Lineup

  • ELECTRONIC FLASH EF-610 DG ST
    SA-STTL
    SIGMA SA-mount / For SIGMA

    00-85126-92744-8 (discontinued)

  • ELECTRONIC FLASH EF-610 DG ST
    EO-ETTL II
    Canon EF mount / For Canon

    00-85126-92743-1 (discontinued)

  • ELECTRONIC FLASH EF-610 DG ST
    NA-iTTL
    Nikon F mount / For Nikon

    00-85126-92741-7 (discontinued)

  • ELECTRONIC FLASH EF-610 DG ST
    SO-ADI
    Sony A-mount / For Sony

    00-85126-92740-0 (discontinued)

  • ELECTRONIC FLASH EF-610 DG ST
    PA-PTTL
    Pentax mount / For Pentax

    00-85126-92742-4 (discontinued)
